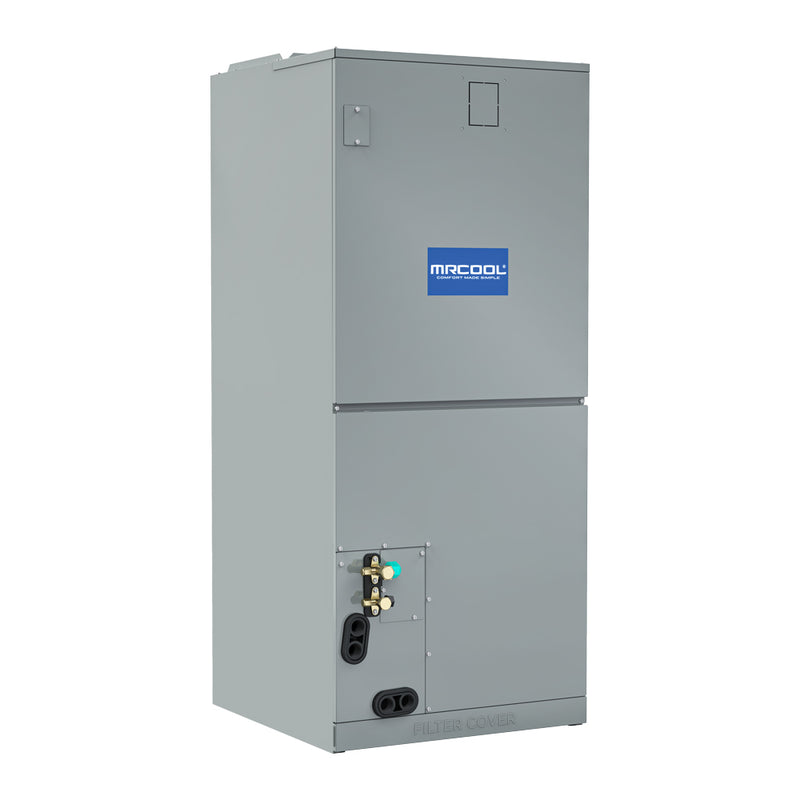

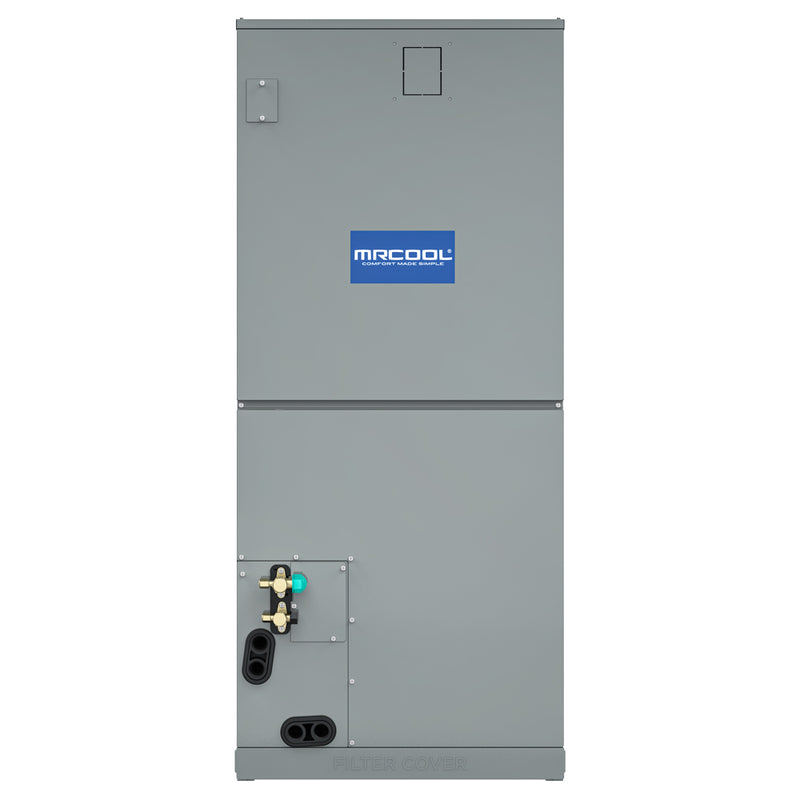

MRCOOL VersaPro 5-Ton R-410A Central Ducted Multi-Position Air Handler 208/230V MVP-60-HP-MUAH-230-00
Questions? Call Us Today
Call Us on (888)-897-6153
The 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a cost-effective solution for maintaining optimal indoor climate control throughout the year, providing efficient, quiet, and exceptional heating and cooling for any household. This air handler stands as a reliable upgrade from older and less efficient systems, covering large spaces with dependable comfort. It pairs seamlessly with the VersaPro Central Ducted Heat Pump Condenser, integrating with your existing ductwork to deliver powerful whole-home comfort without the expense of new ductwork installation.
Key Features
- Pairs with VersaPro Central Ducted Heat Pump Condenser
- Compatible with existing ductwork — no new ductwork required
- AHRI certified
- App compatible for smart control
- Professional installation required
Technical Specifications
| Tonnage | 5 Ton |
| Voltage | 208-230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 15 A |
| Min Circuit Ampacity | 9 A |
| Sound Level | 48 dBA |
| Liquid Line Size | 3/8 |
| Suction Line Size | 7/8 |
| Net Weight | 164.02 lbs |
| Net Dimensions (D×H×W) | 21.02" × 52.99" × 24.49" |
| Gross Weight | 190.48 lbs |
| GTIN / UPC | 00840255577588 |
| AHRI Certified | Yes |
