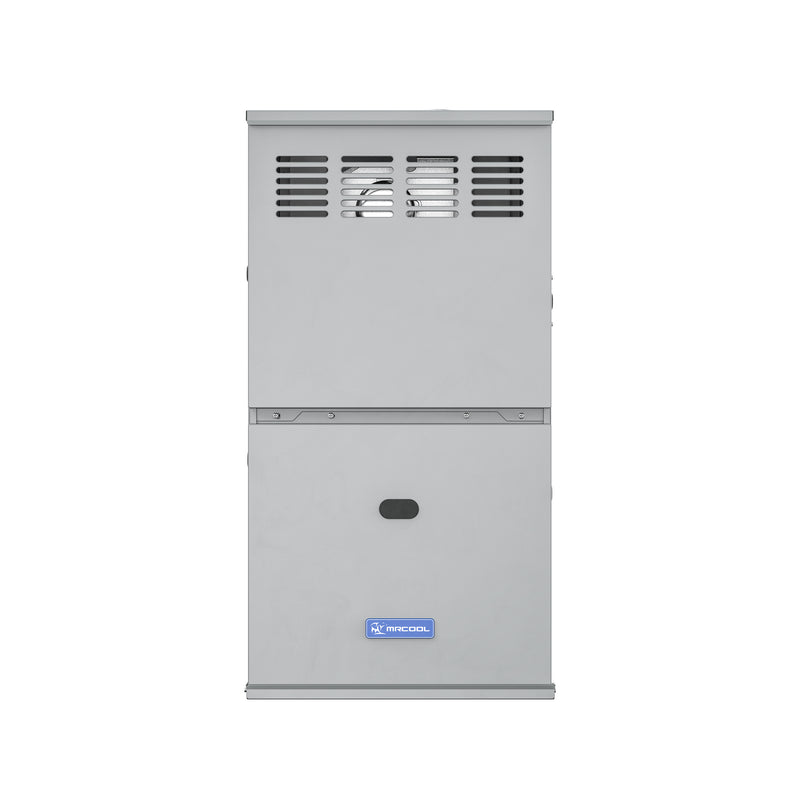

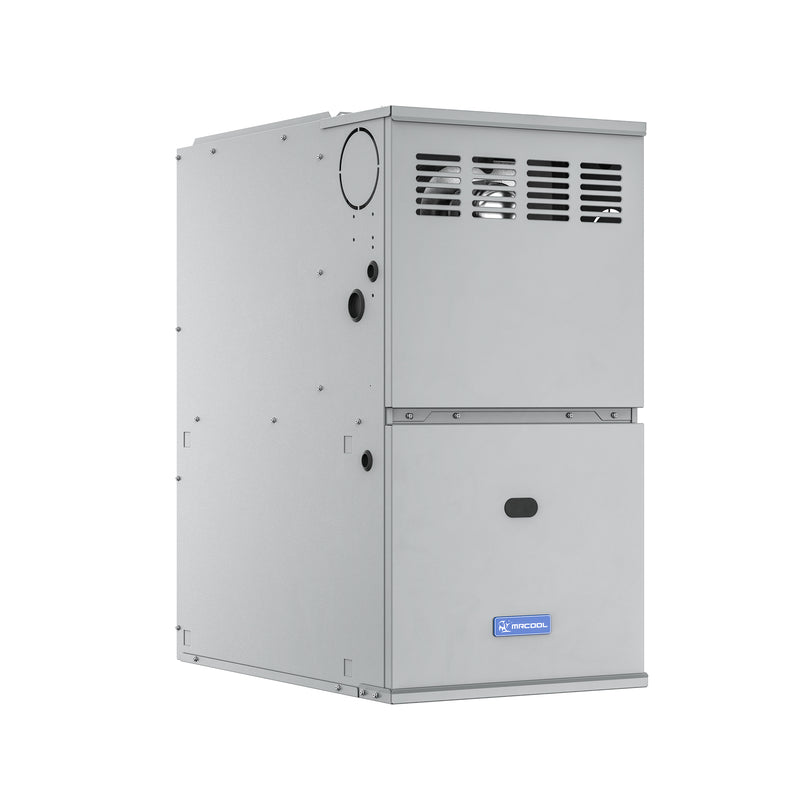

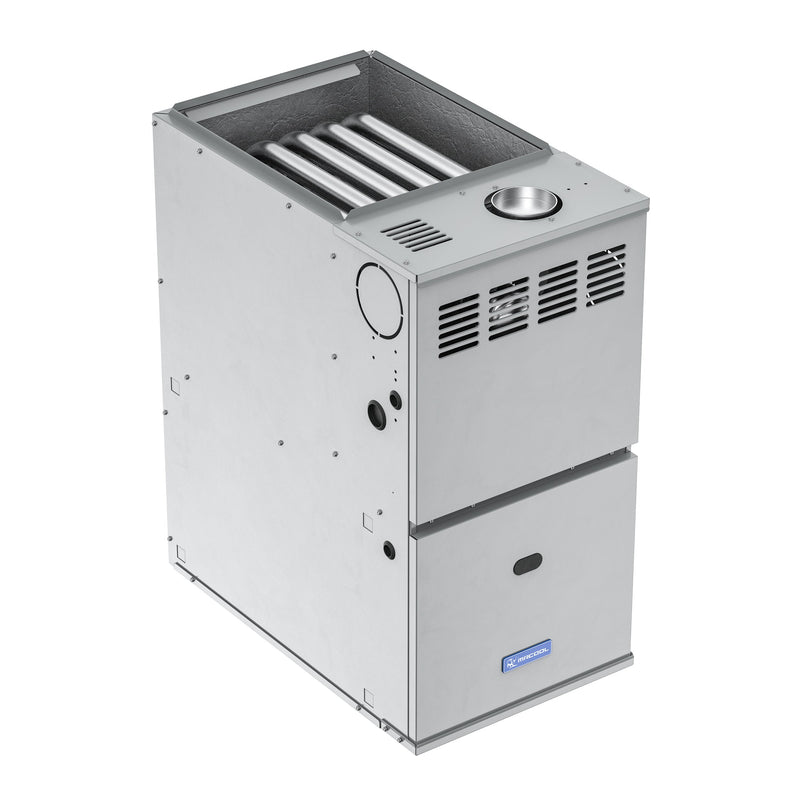

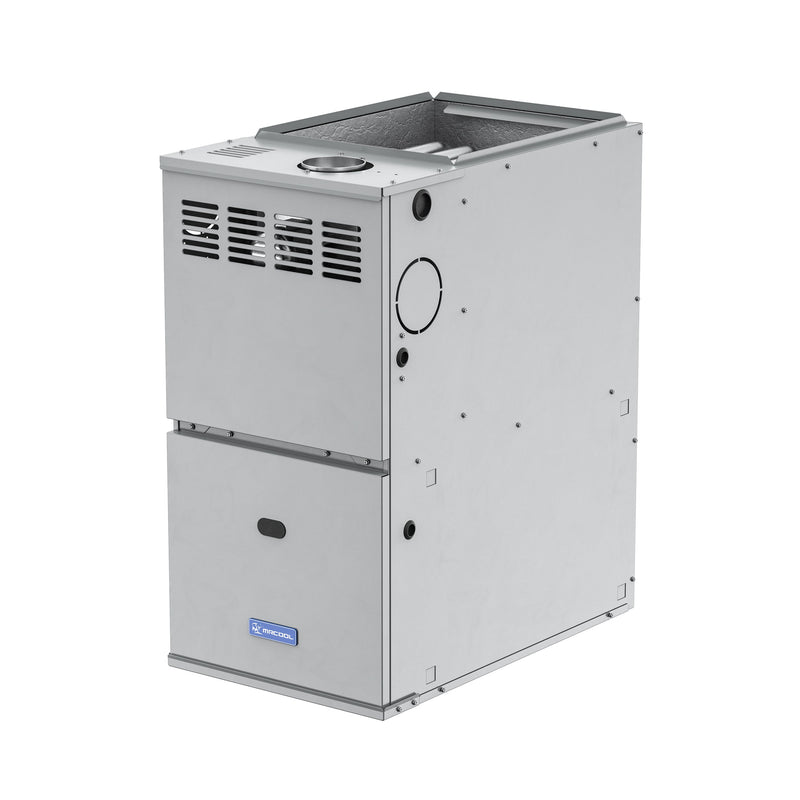

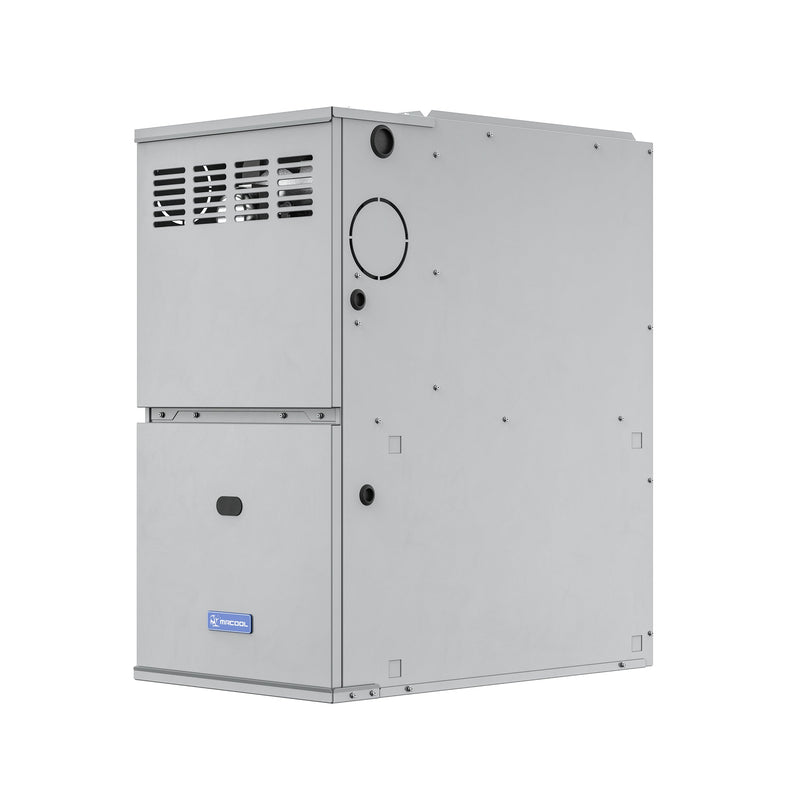

MRCOOL VersaPro 40,000 BTU 80% AFUE Multi-Position Two-Stage Natural Gas Furnace 115V MGA80EE040A3B
Questions? Call Us Today
Call Us on (888)-897-6153
No matter how harsh the winter weather is outside, the MRCOOL® VersaPro® 40k BTU 80% AFUE Gas Furnace ensures you stay warm and comfortable inside your home. With a durable build and compact design, this furnace fits most cabinet sizes, even where space is limited, making installation, replacement, and maintenance easy. Its multi-position installation allows for upflow, downflow, and horizontal applications, and features convenient left or right connections for gas and electric service. It can also be easily converted from natural gas to propane with an optional LP kit. The innovative two-stage consistent flow DC motor ensures you’ll save both energy and money on utility costs. The hot-surface ignition provides dependable operation and the multi-speed direct-drive blower works effectively and quietly without disturbing your day-to-day activities. The furnace is also AHRI certified and ETL listed. When registered within 90 days of installation, it is backed by a 10-year parts warranty and lifetime heat exchanger warranty. Even without registration, it is protected by a 5-year parts warranty and 20-year heat exchanger warranty.
Key Features
- Two-stage consistent torque DC motor
- Multi-position application — upflow, downflow, or horizontal
- 80% AFUE energy efficiency
- Hot-surface ignition for dependable operation
- Quiet multi-speed direct-drive blower
- Optional LP kit for propane conversion
- Durable build and finish
- Compact design fits most cabinet sizes
- AHRI certified / ETL listed / Intertek Cert: 3124627
- Filter Size — Side Return: 16×25×1 | Bottom Return: varies by casing width (14×25, 16×25, 20×25, 24×25)
- Registered warranty: 10-year parts / Lifetime heat exchanger
- Unregistered warranty: 5-year parts / 20-year heat exchanger
Technical Specifications
| Heating Capacity | 40,000 BTU |
| AFUE | 80% |
| Blower Motor HP | 1/2 HP |
| Voltage | 115 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 15 A |
| Min Circuit Ampacity | 6 A |
| Net Weight | 108 lbs |
| Net Dimensions (D×H×W) | 28.50" × 33.74" × 14.49" |
| Gross Weight | 132 lbs |
| GTIN / UPC | 00840255582537 |
| AHRI Certified | Yes |
| Certification | ETL Listed / Intertek Cert: 3124627 |
Product Documentation
- MRCOOL VersaPro 40,000 BTU 80% AFUE Gas Furnace Brochure (PDF)
- MRCOOL VersaPro 40,000 BTU 80% AFUE Gas Furnace Installation Manual (PDF)
- MRCOOL VersaPro 40,000 BTU 80% AFUE Gas Furnace Performance Specifications (PDF)
- MRCOOL VersaPro 40,000 BTU 80% AFUE Gas Furnace Warranty Document (PDF)
- MRCOOL VersaPro 40,000 BTU 80% AFUE Gas Furnace Service Manual (PDF)
