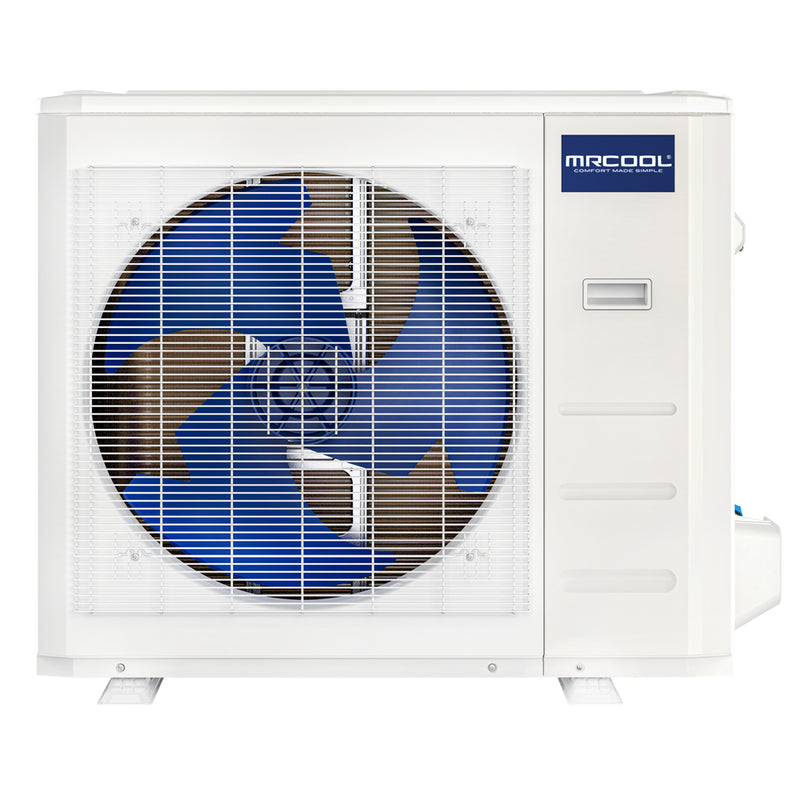

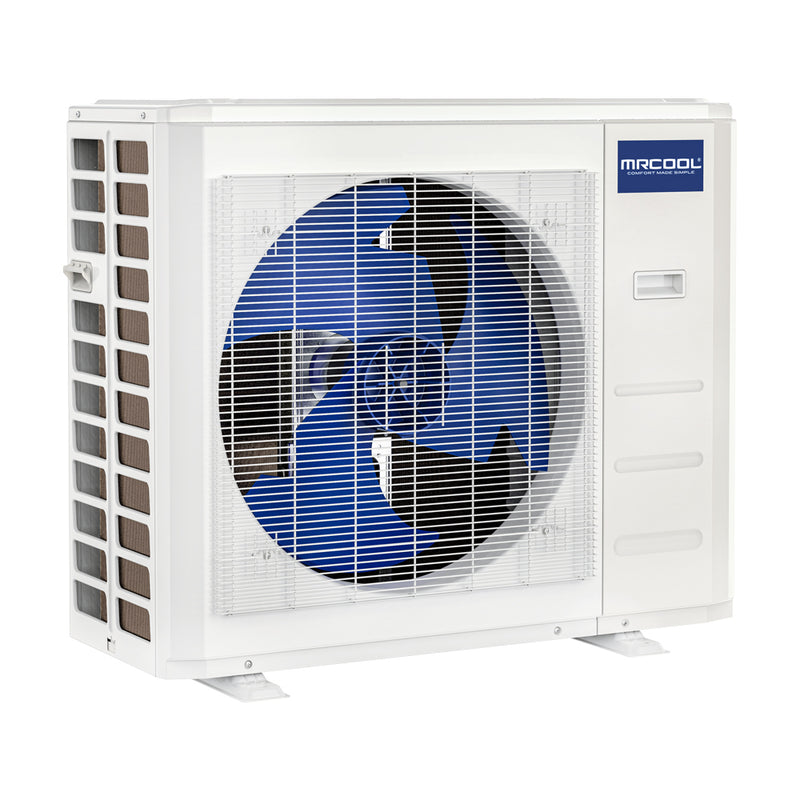

MRCOOL VersaPro 36,000 BTU 3-Ton 16.9 SEER2 R-410A Central Ducted Heat Pump Condenser 208/230V MVP-36-HP-C-230-00
Questions? Call Us Today
Call Us on (888)-897-6153
Experiencing discomfort within your own home is a significant source of frustration, particularly when considering the substantial costs and time commitments often associated with HVAC upgrades. However, there's a solution to overcome these challenges and ensure unparalleled year-round comfort and cost savings with the 3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser. Equipped with a DC inverter and variable speed compressor, this condenser achieves an exceptional SEER2 rating of 16.9. The variable speed compressor modulates its operation to match the precise heating and cooling demands of your home, maximizing efficiency and minimizing energy consumption.
Key Features
- DC inverter variable speed compressor for maximum efficiency
- 16.9 SEER2 energy efficiency rating
- R-410A refrigerant
- AHRI certified
- App compatible for smart control
- Professional installation required
Technical Specifications
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| Tonnage | 3 Ton |
| SEER2 | 16.9 |
| EER2 | 10.1 |
| HSPF2 | 8.3 |
| Voltage | 208-230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 40 A |
| Min Circuit Ampacity | 24 A |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 131.0 oz |
| Sound Level | 60 dBA |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Compressor Type | Rotary |
| Net Weight | 151.68 lbs |
| Net Dimensions (D×H×W) | 16.14" × 31.89" × 37.24" |
| Gross Weight | 161.16 lbs |
| GTIN / UPC | 00840255577502 |
| AHRI Certified | Yes |
Product Documentation
- MRCOOL VersaPro 36,000 BTU 3-Ton Heat Pump Condenser Brochure (PDF)
- MRCOOL VersaPro 36,000 BTU 3-Ton Heat Pump Condenser Installation Manual (PDF)
- MRCOOL VersaPro 36,000 BTU 3-Ton Heat Pump Condenser Performance Specifications (PDF)
- MRCOOL VersaPro 36,000 BTU 3-Ton Heat Pump Condenser Warranty Document (PDF)
