MRCOOL VersaPro 2-Ton R-410A Central Ducted Multi-Position Air Handler 208/230V MVP-24-HP-MUAH-230-25
Questions? Call Us Today
Call Us on (888)-897-6153

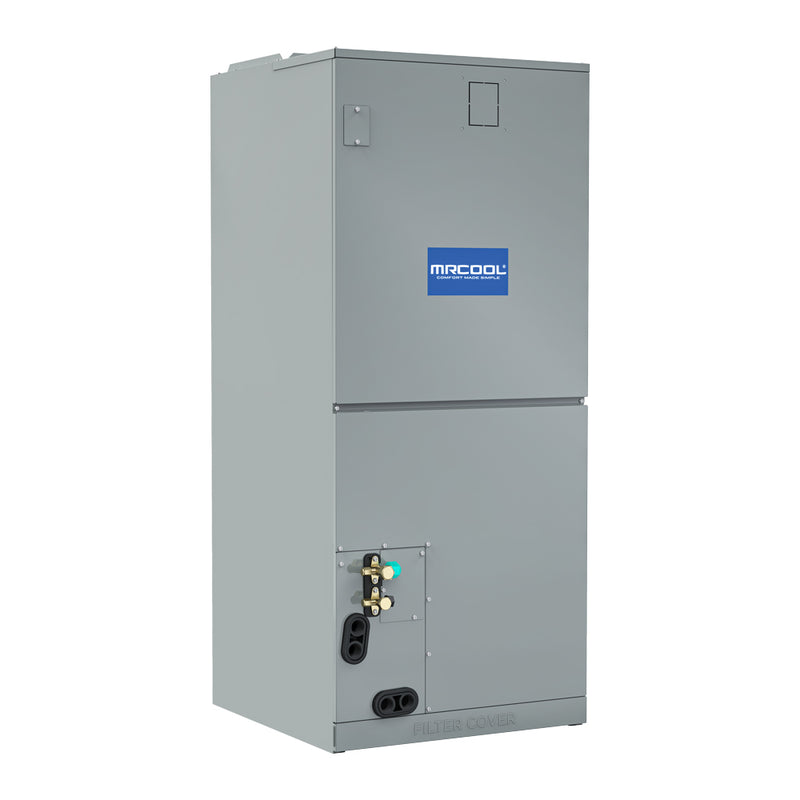

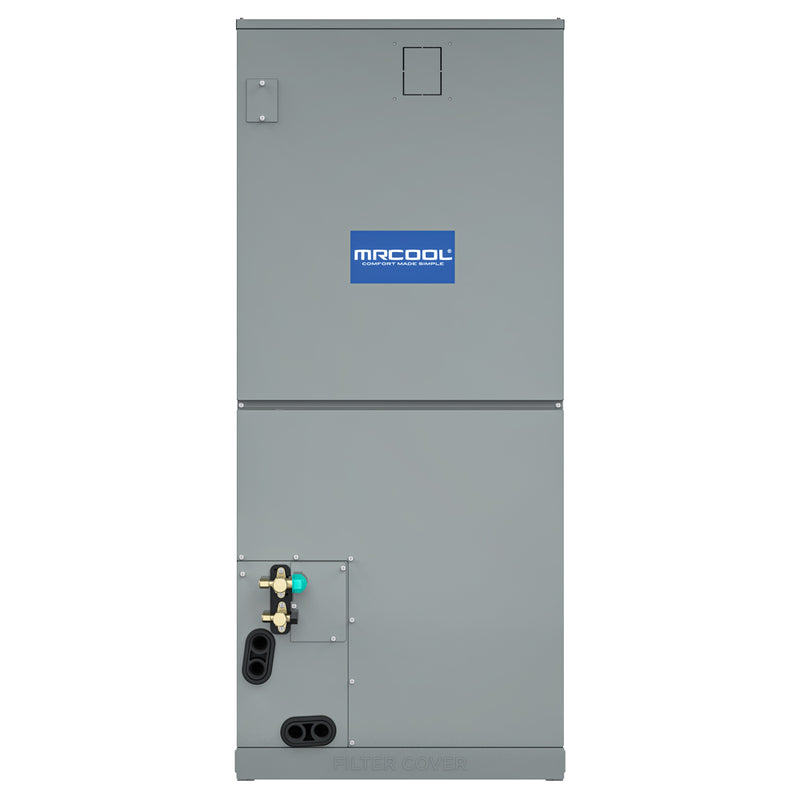

The 2 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a wise and economical choice to maintain ideal heating and cooling conditions in your home year-round. With an impressive SEER2 rating of 16.7, this handler efficiently covers approximately 1000 square feet of living space, providing a dependable and cost-effective solution for your home's comfort needs. It pairs seamlessly with the VersaPro Central Ducted Heat Pump Condenser, integrating into your existing ductwork for whole-home heating and cooling without costly installation upgrades.
Key Features
- Pairs with VersaPro Central Ducted Heat Pump Condenser
- Compatible with existing ductwork — no new ductwork required
- AHRI certified
- App compatible for smart control
- Professional installation required
Technical Specifications
| Tonnage | 2 Ton |
| Voltage | 208-230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 15 A |
| Min Circuit Ampacity | 4 A |
| Sound Level | 41.5 dBA |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
| Net Weight | 106.48 lbs |
| Net Dimensions (D×H×W) | 21.02" × 45.00" × 17.52" |
| Gross Weight | 132.72 lbs |
| GTIN / UPC | 00840255577540 |
| AHRI Certified | Yes |
