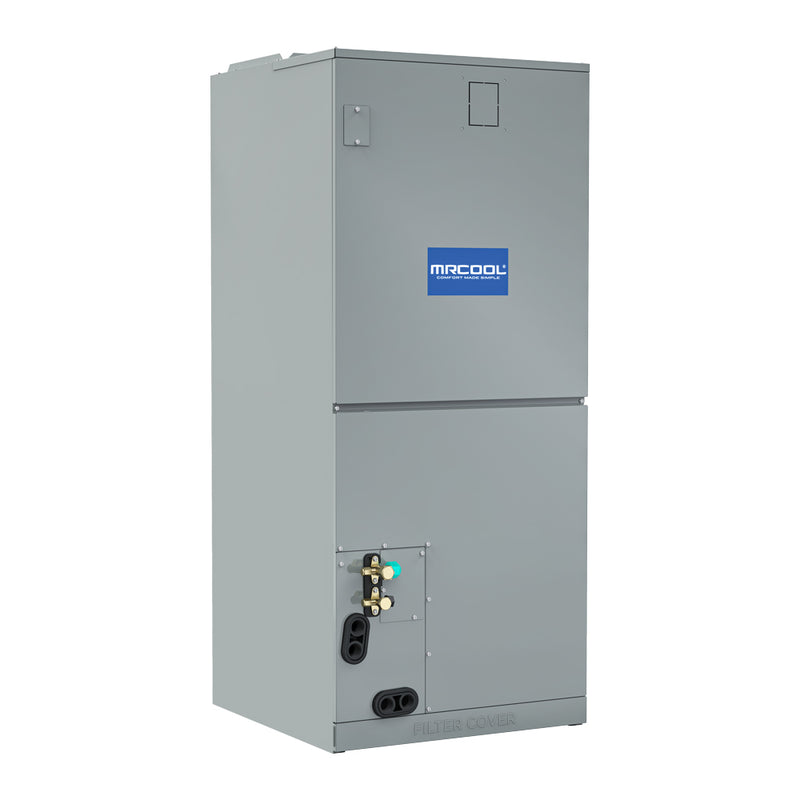

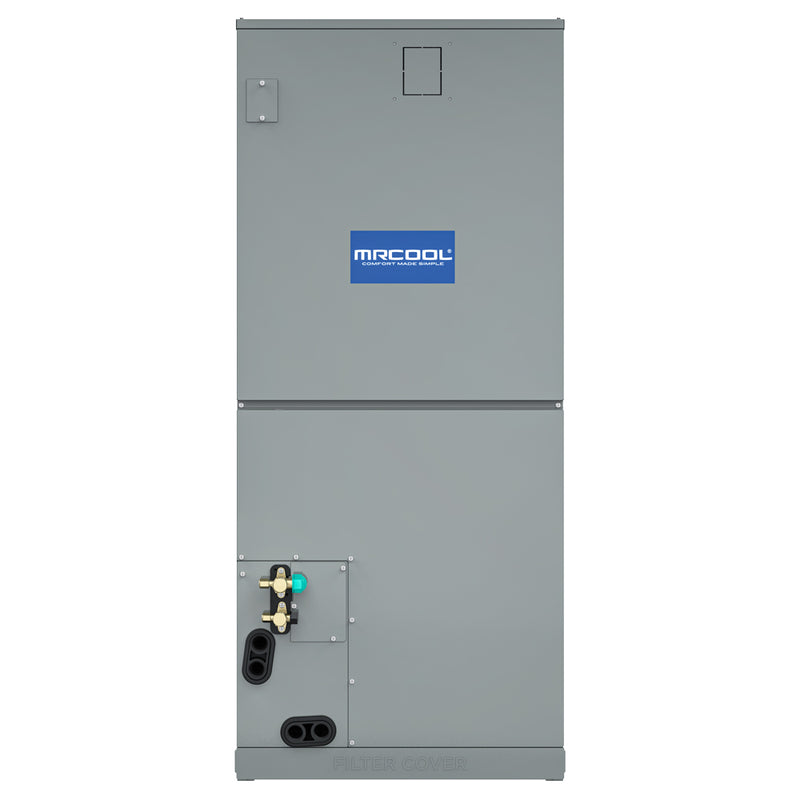

MRCOOL VersaPro 1.5-Ton R-410A Central Ducted Multi-Position Air Handler 208/230V MVP-18-HP-MUAH-230-25
Questions? Call Us Today
Call Us on (888)-897-6153
Selecting the 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler presents an exceptional and cost-effective option for maintaining year-round comfort in your home efficiently, quietly, and effectively. With its ability to cover an average of 750 square feet of space and boasting a SEER2 rating of 16.6, this air handler efficiently conditions your home without the expense and disruption of new ductwork installation. Designed to pair seamlessly with the VersaPro Central Ducted Heat Pump Condenser, this air handler integrates into your existing system for whole-home comfort.
Key Features
- Pairs with VersaPro Central Ducted Heat Pump Condenser
- Compatible with existing ductwork — no new ductwork required
- AHRI certified
- App compatible for smart control
- Professional installation required
Technical Specifications
| Tonnage | 1.5 Ton |
| Voltage | 208-230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 15 A |
| Min Circuit Ampacity | 2.5 A |
| Sound Level | 38.5 dBA |
| Liquid Line Size | 1/4 |
| Suction Line Size | 1/2 |
| Net Weight | 106.48 lbs |
| Net Dimensions (D×H×W) | 21.02" × 45.00" × 17.52" |
| Gross Weight | 131.61 lbs |
| GTIN / UPC | 00840255577533 |
| AHRI Certified | Yes |
Product Documentation
- MRCOOL VersaPro 1.5-Ton Central Ducted Air Handler Brochure (PDF)
- MRCOOL VersaPro 1.5-Ton Central Ducted Air Handler Installation Manual (PDF)
- MRCOOL VersaPro 1.5-Ton Central Ducted Air Handler Performance Specifications (PDF)
- MRCOOL VersaPro 1.5-Ton Central Ducted Air Handler Warranty Document (PDF)
