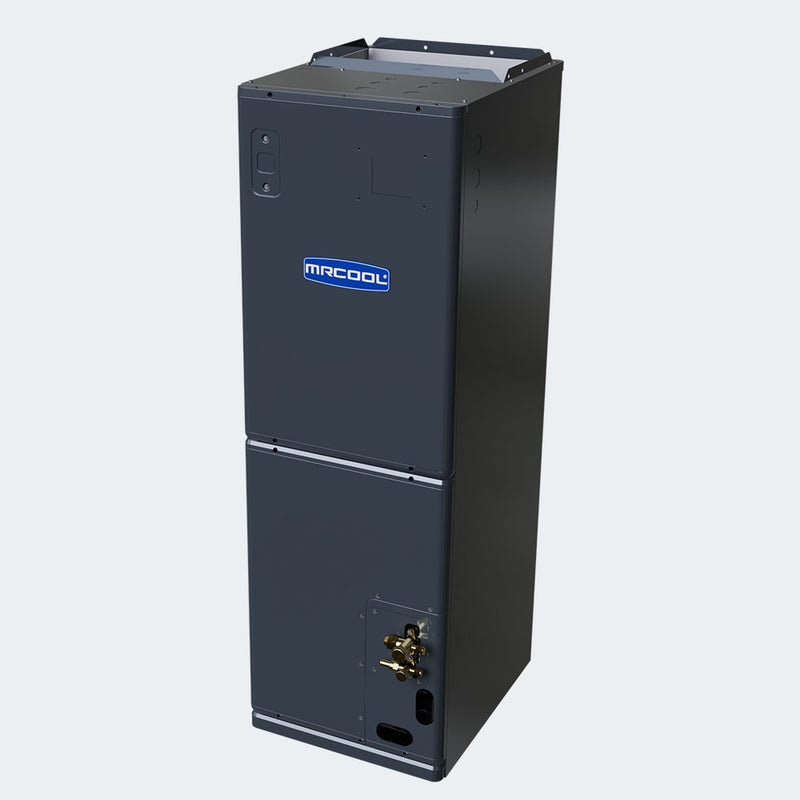

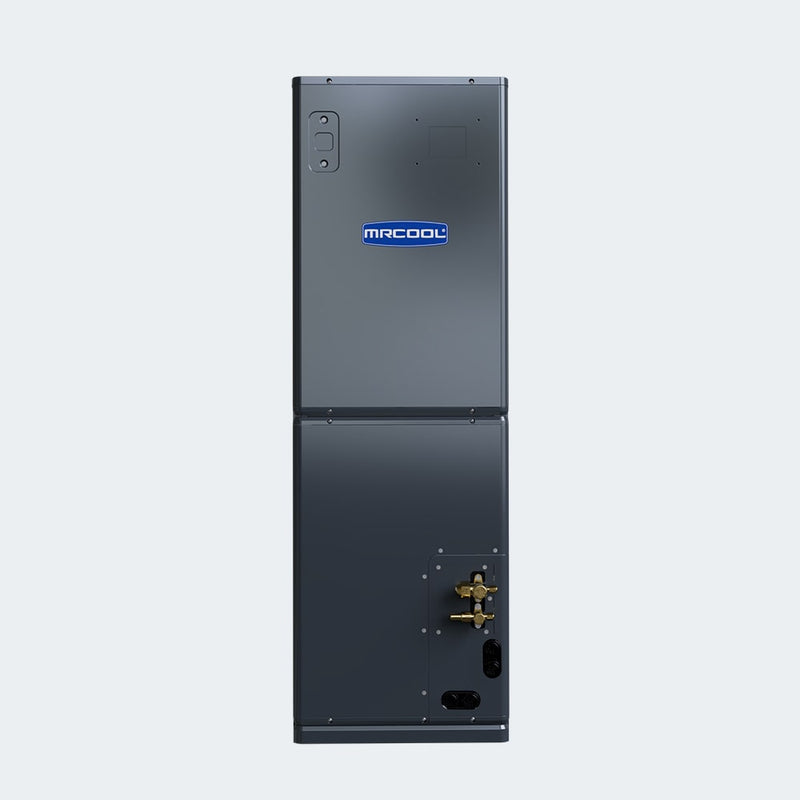

MRCOOL Universal DC Inverter 5 Ton 60,000 BTU R-454B Air Handler 115/208/230V UAH18060-O
Questions? Call Us Today
Call Us on (888)-897-6153
The MRCOOL® Universal® Series 60K Air Handler is built to deliver powerful, energy-efficient climate control for large residential spaces. No matter the season, it ensures consistent airflow and dependable indoor comfort—making it an ideal solution for homeowners seeking high-capacity performance without sacrificing efficiency.
Designed with installation versatility in mind, this air handler supports vertical, horizontal, and downflow configurations. Its compact footprint allows for easier placement in tight mechanical spaces, closets, attics, or basements. The unit is fully compatible with the MRCOOL® NO-VAC® Quick Connect® line set (sold separately), which eliminates the need for vacuuming or flaring, saving time and reducing labor.
For enhanced performance in colder climates, the system also supports optional Universal® Series Heat Kits, providing additional heating output and emergency backup heat.
Engineered for durability and quiet operation, the 60K Air Handler features an M-shaped evaporator coil that increases the heat exchange surface area and boosts airflow. Constructed from 100% aluminum, the coil is corrosion-resistant, providing long-term reliability and reducing maintenance needs.
The MRCOOL® Universal® Series 60K Air Handler is backed by a 10-year parts warranty and a 2-year limited labor warranty, offering peace of mind and long-lasting value.
Technical Specifications
| Tonnage | 5 Ton |
| CFM | 1801 / 1648 / 1501 / 1236 (High/Med-High/Med/Low) |
| Voltage | 115/208/230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 15 A |
| Min Circuit Ampacity | 14.5/10 A |
| Refrigerant Type | R-454B |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Max Lineset Length | 246 ft |
| Net Dimensions (D×H×W) | 21.5" × 55.94" × 21.5" |
| Net Weight | 188.05 lbs |
| Gross Dimensions (D×H×W) | 31.1" × 59.84" × 25" |
| Gross Weight | 238.32 lbs |
Certifications
- UL Listed
- CSA Listed
- ETL Listed
Warranty
- 10 Years Parts Warranty
- 2 Year Labor Warranty
Product Documentation
- MRCOOL Universal DC Inverter R-454B 60K Air Handler Installation Manual (PDF)
- MRCOOL Universal DC Inverter R-454B 60K Air Handler Warranty Document (PDF)
- MRCOOL Universal DC Inverter R-454B 60K Air Handler Brochure (PDF)
- MRCOOL Universal DC Inverter R-454B 60K Air Handler Service Manual (PDF)
