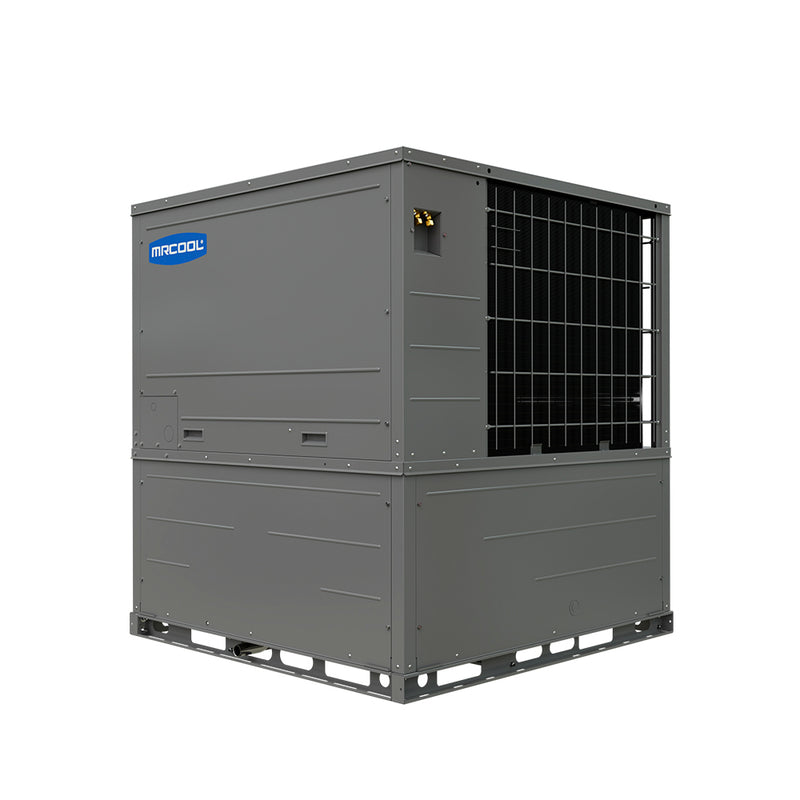

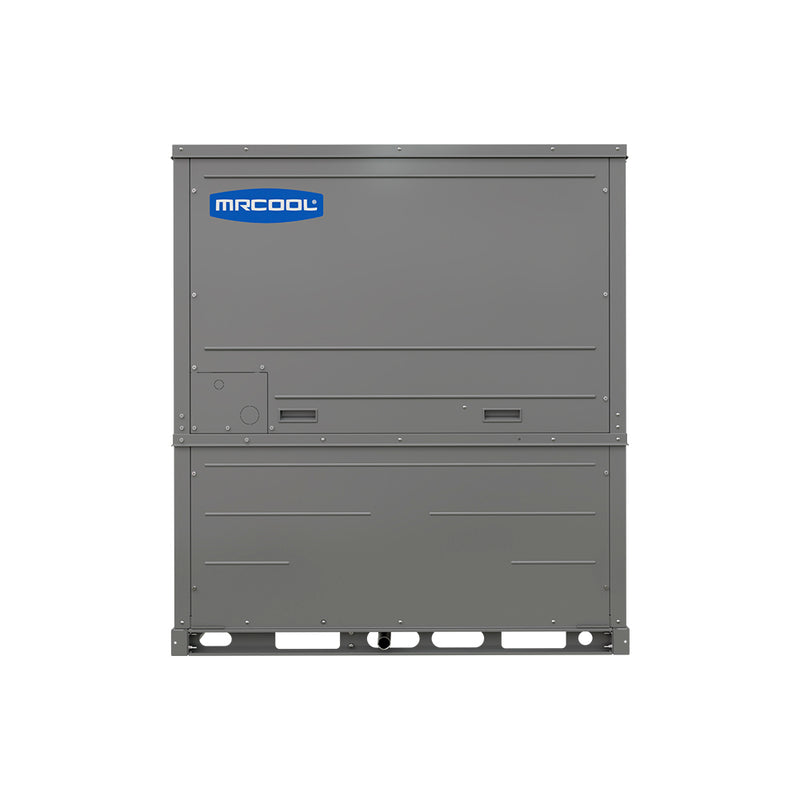

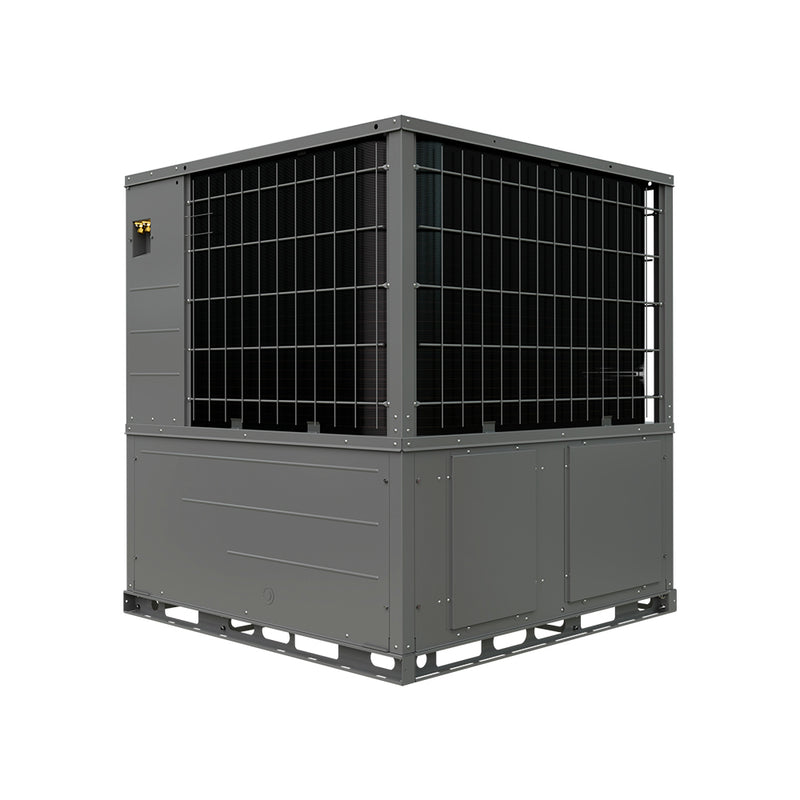

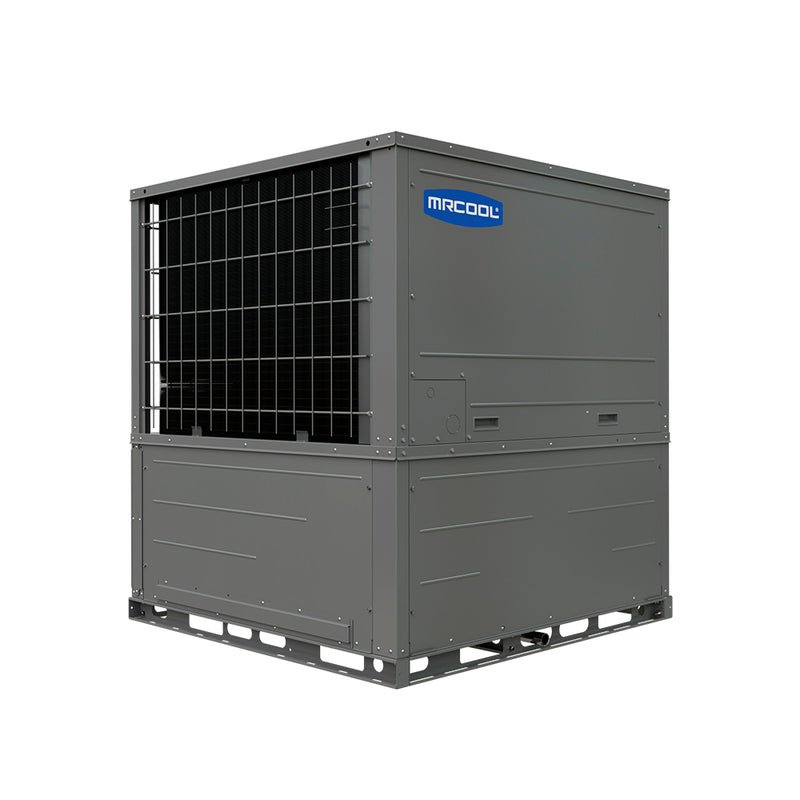

MRCOOL Universal DC Inverter 5 Ton 60,000 BTU R-32 Packaged Heat Pump 208/230V MDPH18060D
Questions? Call Us Today
Call Us on (888)-897-6153
The MRCOOL® 2nd Generation Universal® Series 60K Inverter Packaged Heat Pump is an advanced all-in-one solution designed to provide reliable comfort, lower energy costs, and environmentally responsible performance.
With its inverter-driven compressor, the system operates at variable speeds, constantly adjusting to the heating and cooling demands of your home. This ensures steadier temperatures, reduced energy use, quieter operation, and less wear on the unit compared to traditional systems.
Rated at a SEER2 of 18, this heat pump significantly improves efficiency and helps cut monthly utility bills. It is built for extreme weather, capable of heating in conditions as low as -22°F (-30°C) and cooling in temperatures as high as 125°F (52°C).
The system uses R-32 refrigerant, a modern, lower-GWP choice that reduces environmental impact while meeting today’s ecological standards. Installation is simplified thanks to a flexible multi-position design that supports downflow and horizontal applications.
The Universal® 60K is backed by a 10-year parts and labor warranty, giving homeowners confidence in long-term reliability.
Key Features
- Inverter Technology
- Energy Efficient
- Flexible air return
- Fast heating & cooling
- Intelligent defrosting
- Energy Star Cold Climate Certified
- 10 year labor warranty included
Technical Specifications
| Cooling Capacity | 56,000 BTU |
| Heating Capacity | 57,000 BTU |
| Tonnage | 5 Ton |
| SEER2 | 18 |
| EER2 | 11.2 |
| HSPF2 | 8.3 |
| Voltage | 208/230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 45 A |
| Min Circuit Ampacity | 39.1 A |
| Refrigerant Type | R-32 |
| Refrigerant Volume | 204.6 oz |
| Sound Level | 68 dBA |
| Min Ambient Temp (Cooling) | 23°F |
| Min Ambient Temp (Heating) | -22°F |
| Net Dimensions (D×H×W) | 44" × 49.25" × 44" |
| Net Weight | 628.3 lbs |
| Gross Dimensions (D×H×W) | 44.6" × 50.78" × 44.6" |
| Gross Weight | 650 lbs |
Warranty
- 10 Year Parts Warranty
- 10 Year Labor Warranty
Product Documentation
- MRCOOL Universal R-32 Packaged Heat Pump 5T Installation Manual (PDF)
- MRCOOL Universal R-32 Packaged Heat Pump 5T Warranty Document (PDF)
- MRCOOL Universal R-32 Packaged Heat Pump 5T Brochure (PDF)
- MRCOOL Universal R-32 Packaged Heat Pump 5T AHRI Certification (PDF)
- MRCOOL Universal R-32 Packaged Heat Pump 5T Energy Guide (PDF)
