MRCOOL Signature Series 2 Ton R-454B Stud Mount Air Handler 208/230V MCAEAWPEF24D21AA
Questions? Call Us Today
Call Us on (888)-897-6153

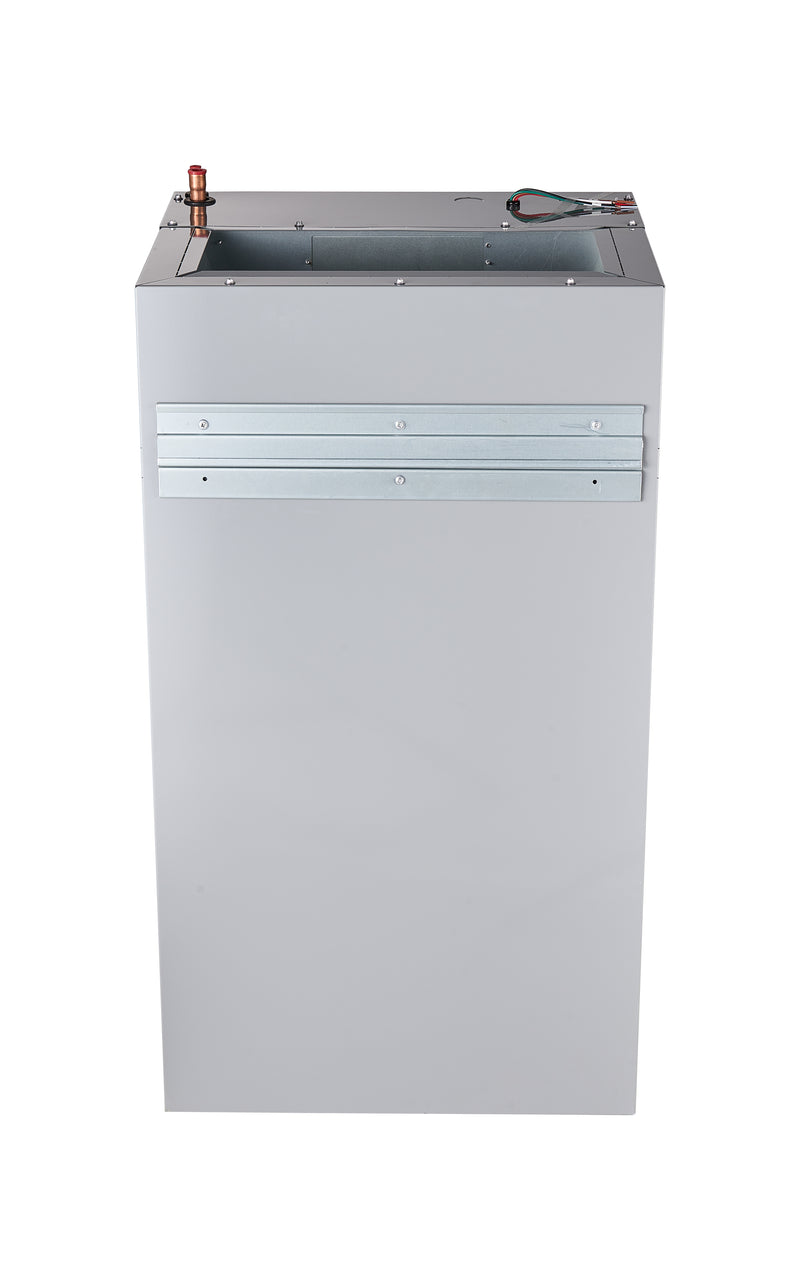

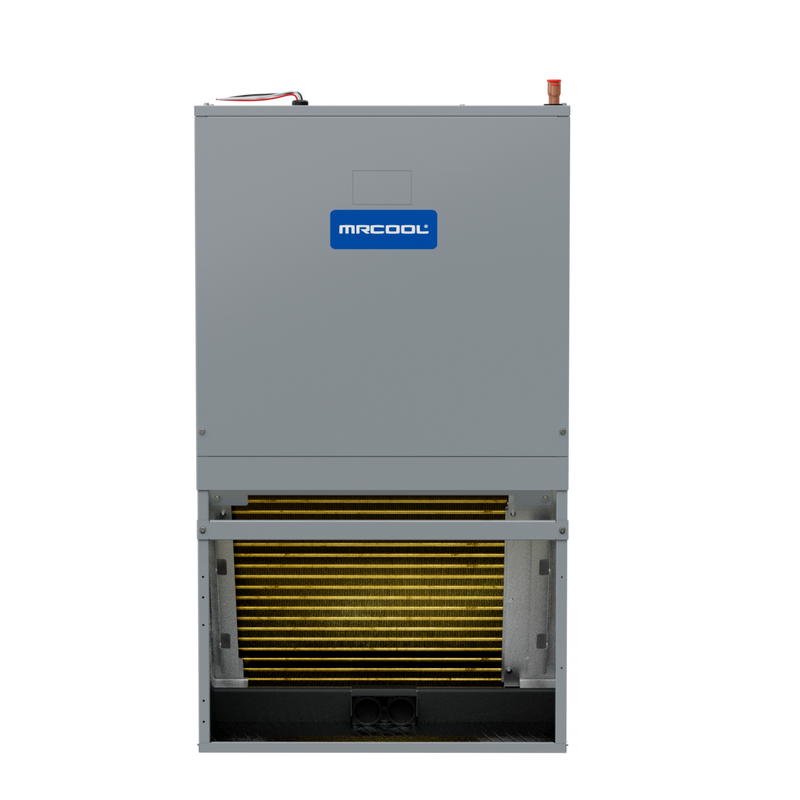

Transform your HVAC system with the MRCOOL® Signature Series 24K Stud Mount Air Handler—crafted for maximum flexibility, energy efficiency, and hassle-free installation. Designed to fit cleanly between standard wall studs, this compact unit is perfect for tight spaces where conventional air handlers just won’t work.
Despite its slim profile, this powerful unit delivers dependable heating and cooling performance when paired with a compatible heat pump or condenser. With both front and bottom return air options, it adapts easily to your layout and airflow requirements.
Built to last, the MRCOOL® Signature Series 24k Stud Mount Air Handler features a tough galvanized steel cabinet and advanced blower technology for quiet, efficient operation. Full insulation throughout the cabinet minimizes energy loss and prevents condensation, while the high-efficiency ECM motor ensures steady airflow and reduced utility bills.
Maintenance is simple with an integrated air filter rack for quick filter replacements. For colder climates, optional electric heat kits are available to provide added warmth when needed.
Supported by a 10-year limited parts warranty, the MRCOOL® Signature Series 24K Stud Mount Air Handler delivers compact comfort without compromise.
Technical Specifications
| Tonnage | 2 Ton |
| CFM | 797 |
| Voltage | 208/230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 3 A |
| Min Circuit Ampacity | 2.5 A |
| Refrigerant Type | R-454B |
| Sound Level | 54 dBA |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Net Dimensions (D×H×W) | 15" × 36" × 20.5" |
| Net Weight | 88 lbs |
| Gross Dimensions (D×H×W) | 18.11" × 39.375" × 23.22" |
| Gross Weight | 97 lbs |
Certifications
- UL Listed
- CSA Listed
- ETL Listed
- AHRI Certified
Warranty
- 10 Year Parts Warranty
- Limited Lifetime Compressor Warranty
Product Documentation
- MRCOOL Signature Series Stud Mount Air Handler 2T Installation Manual (PDF)
- MRCOOL Signature Series Stud Mount Air Handler 2T Warranty Document (PDF)
- MRCOOL Signature Series Stud Mount Air Handler 2T Brochure (PDF)
