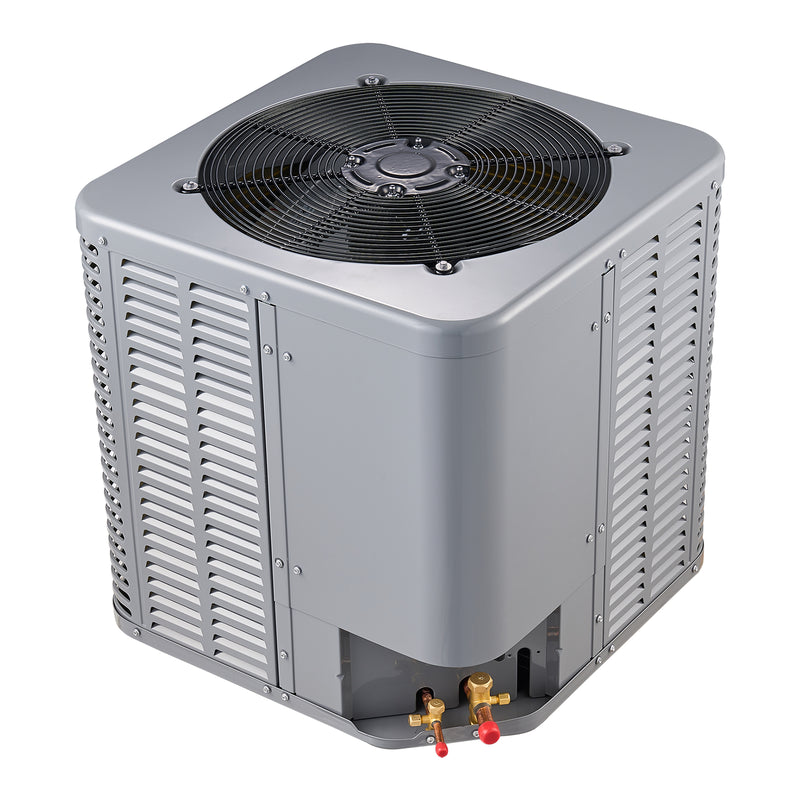

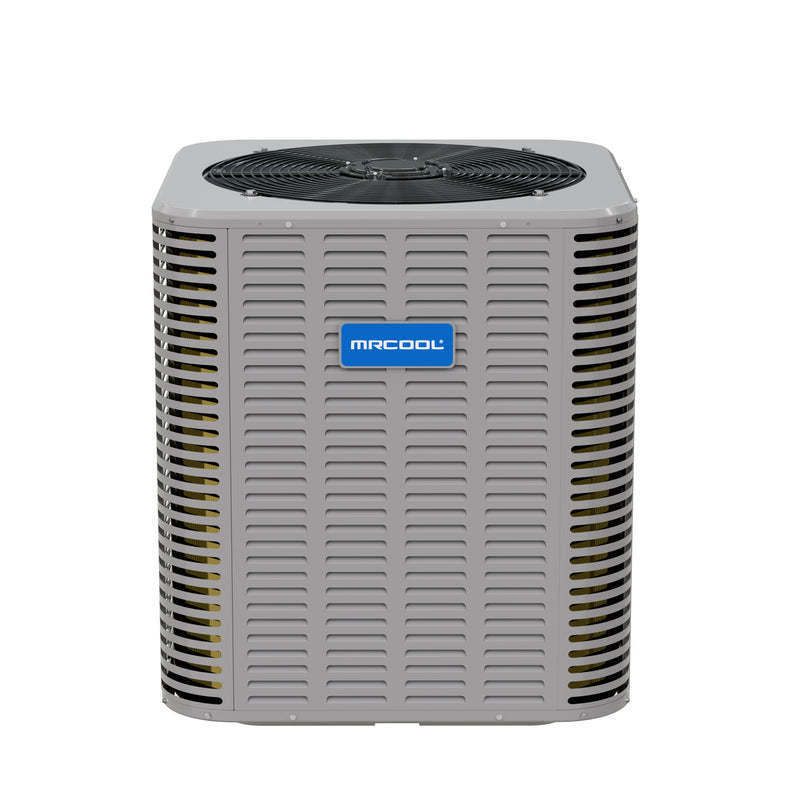

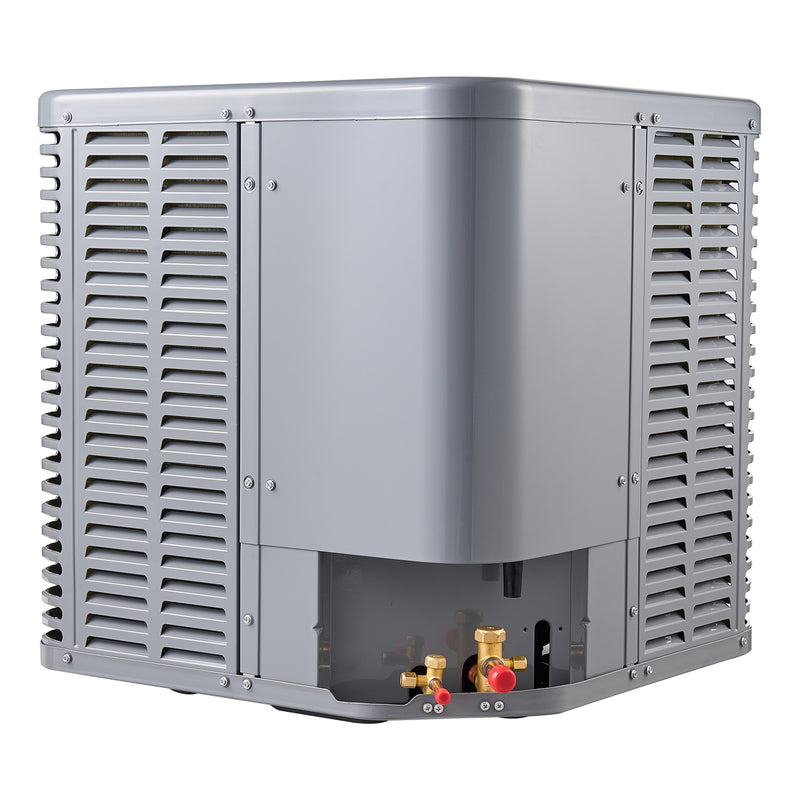

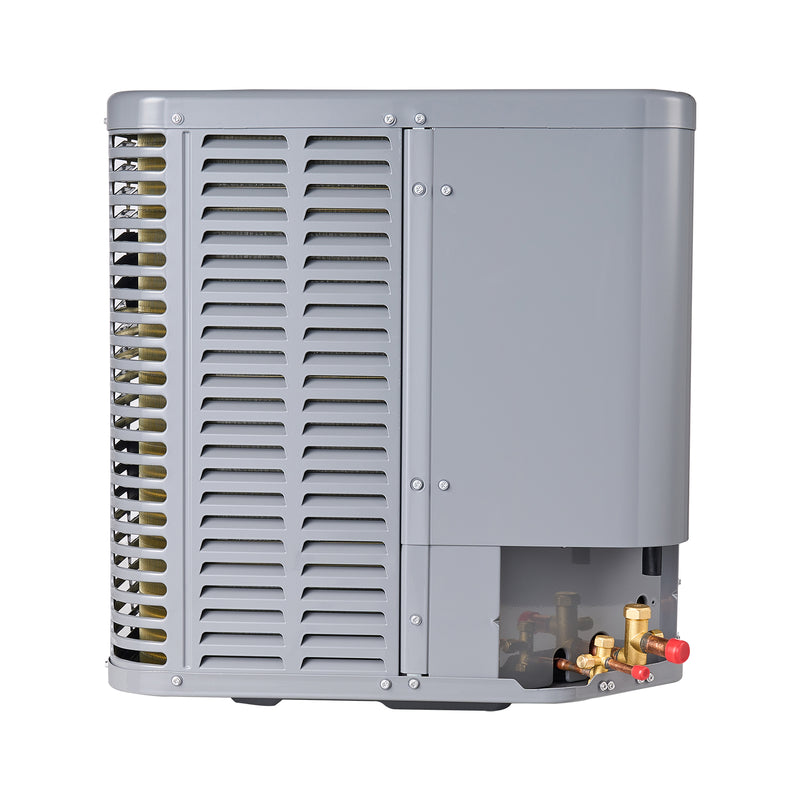

MRCOOL Signature Series 2 Ton 14.3 SEER2 R-454B AC Condenser 208/230V MCAESAS4T2421AA
Questions? Call Us Today
Call Us on (888)-897-6153
The MRCOOL® Signature Series 24k Cooling Only Condenser offers dependable, energy-efficient performance for homeowners looking to upgrade their comfort without increasing energy bills. With a 14.3 SEER2 and 11.7 EER2 rating, this system delivers consistent, cost-effective cooling for a wide range of residential applications.
This unit comes factory pre-charged with R-454B refrigerant, a next-generation, low-GWP refrigerant developed to comply with today’s stricter environmental regulations.
At the heart of this high-performing unit is a durable single-speed scroll compressor, engineered to provide long-lasting, dependable operation. Inner-groove copper tubing increases surface area contact, boosts refrigerant flow, and promotes quicker, more effective temperature regulation throughout the system.
Despite its strength, the unit operates at only 60 decibels, quiet enough for everyday residential use. A sound-dampening top helps reduce noise, while a steel louver coil guard and wire fan discharge grille help safeguard internal parts and extend the unit’s lifespan.
The system is backed by a 10-year limited parts warranty and a limited lifetime compressor warranty, offering added assurance of long-term reliability and support.
Technical Specifications
| Cooling Capacity | 22000 BTU |
| Tonnage | 2 Ton |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| CFM | 1950 |
| Voltage | 208/230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 20 A |
| Min Circuit Ampacity | 15.2 A |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 79.3 oz |
| Sound Level | 60 dBA |
| Min Ambient Temp (Cooling) | 59°F |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Max Lineset Length | 100 ft |
| Net Dimensions (D×H×W) | 23.6" × 25" × 23.6" |
| Net Weight | 133 lbs |
| Gross Dimensions (D×H×W) | 24.8" × 26.2" × 24.8" |
| Gross Weight | 139 lbs |
Certifications
- UL Listed
- CSA Listed
- ETL Listed
- AHRI Certified
Warranty
- 10 Year Parts Warranty
- Limited Lifetime Compressor Warranty
Product Documentation
- MRCOOL Signature Series AC Condenser 2T Installation Manual (PDF)
- MRCOOL Signature Series AC Condenser 2T Warranty Document (PDF)
- MRCOOL Signature Series AC Condenser 2T Brochure (PDF)
- MRCOOL Signature Series AC Condenser 2T AHRI Certification (PDF)
- MRCOOL Signature Series AC Condenser 2T Energy Guide (PDF)
