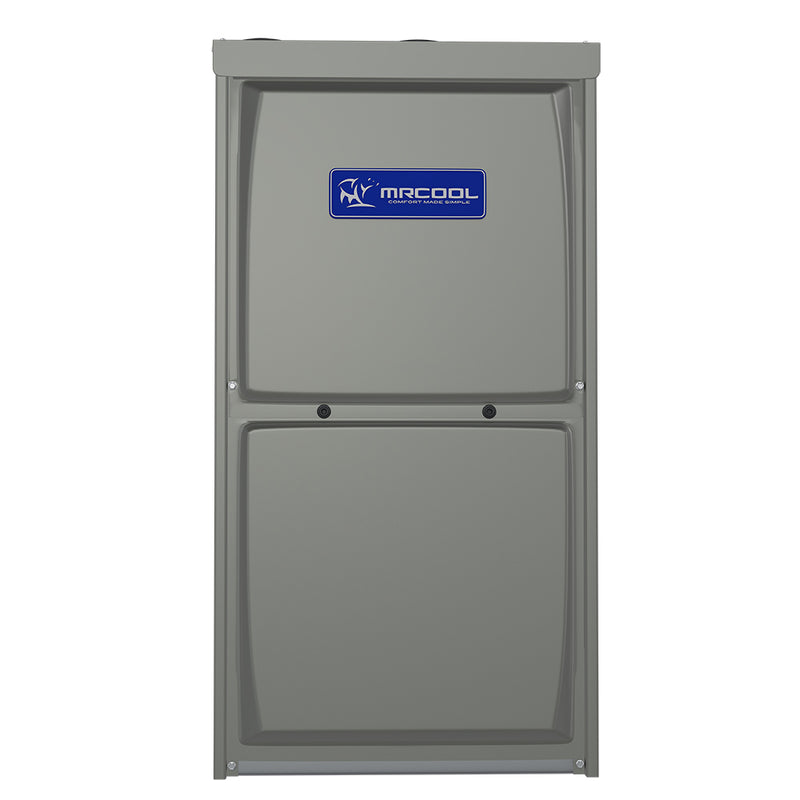

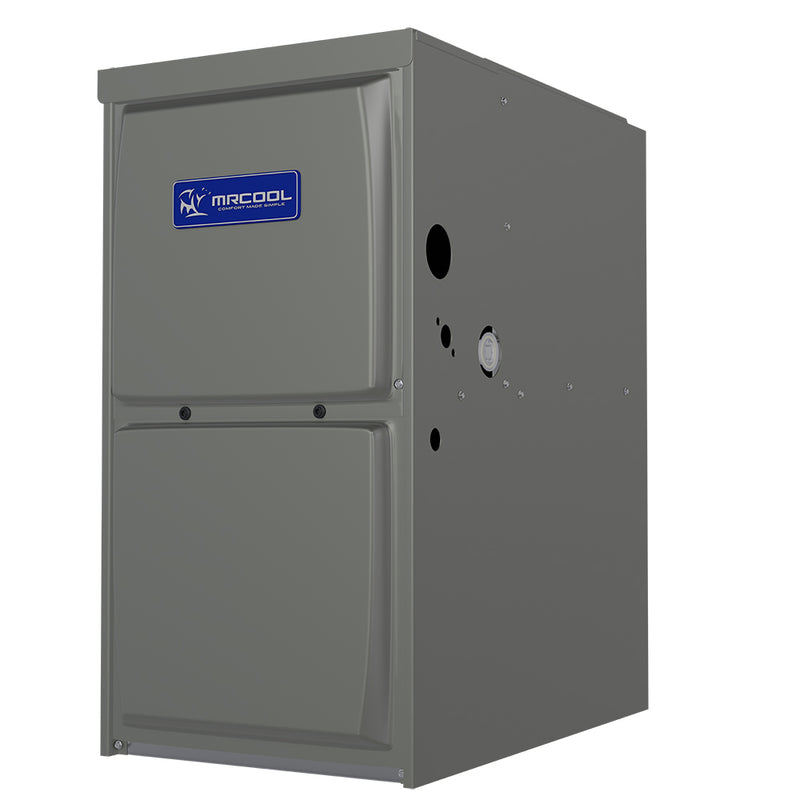

MRCOOL Signature 90,000 BTU 96% AFUE 4-Ton Multi-Position Multi-Speed Natural Gas Furnace 120V MGM96SE090C4XA

The MRCOOL® Signature Series Single-Stage 96% AFUE 90k BTU gas furnace provides superior heating comfort in an energy efficient and quiet running unit that can be configured in an upflow or horizontal orientation. With low NOx and a 96% AFUE, the furnace's multi-speed high efficiency blower motor helps to keep utility costs low. For even higher cooling SEER ratings, apply this furnace with properly matched cooling equipment. The aluminized steel primary heat exchanger with crimped non-welded construction make up this unit's long-lasting build and finish. With a durable silicon nitride ignitor and aluminized steel inshot burners, the ignition process for this furnace is smooth and effective. The single stage gas valve ensures heating is delivered quickly to your home. Installation is easy with the furnace's compact 33 inch design, it can be easily converted to use liquid propane with an optional LP kit, and offers a zero step horizontal conversion process. The furnace can be easily vented with PVC pipe and features a left or right utility connection, aiding in the installation ease. It has standardized widths for easy coil fit and is design certified for direct and non-direct vent applications. Another useful feature is its removable floor base for bottom return air. The furnace's easily removable slide out blower design makes for easy maintenance of the unit. MRCOOL® offers a lifetime heat exchanger warranty and 10-year parts warranty.

Key Features

• 96% AFUE energy efficiency with low NOx emissions
• Multi-speed high efficiency (constant torque) blower motor
• Aluminized steel primary heat exchanger with crimped non-welded construction
• Aluminized steel inshot burners with silicon nitride ignitor
• Single-stage gas valve for fast home heating
• Compact 33" design — upflow or horizontal configuration
• Removable floor base for bottom return air
• PVC venting — design certified for direct and non-direct vent applications
• Optional LP kit for liquid propane conversion
• Easily removable slide out blower design for easy maintenance
• Lifetime heat exchanger warranty / 10-year parts warranty
• AHRI certified

Technical Specifications

Product Documentation

• MRCOOL Signature 90,000 BTU 96% AFUE Multi-Position Gas Furnace Brochure (PDF)
• MRCOOL Signature 90,000 BTU 96% AFUE Multi-Position Gas Furnace Installation Manual (PDF)
• MRCOOL Signature 90,000 BTU 96% AFUE Multi-Position Gas Furnace Performance Specifications (PDF)
• MRCOOL Signature 90,000 BTU 96% AFUE Multi-Position Gas Furnace Warranty Document (PDF)
