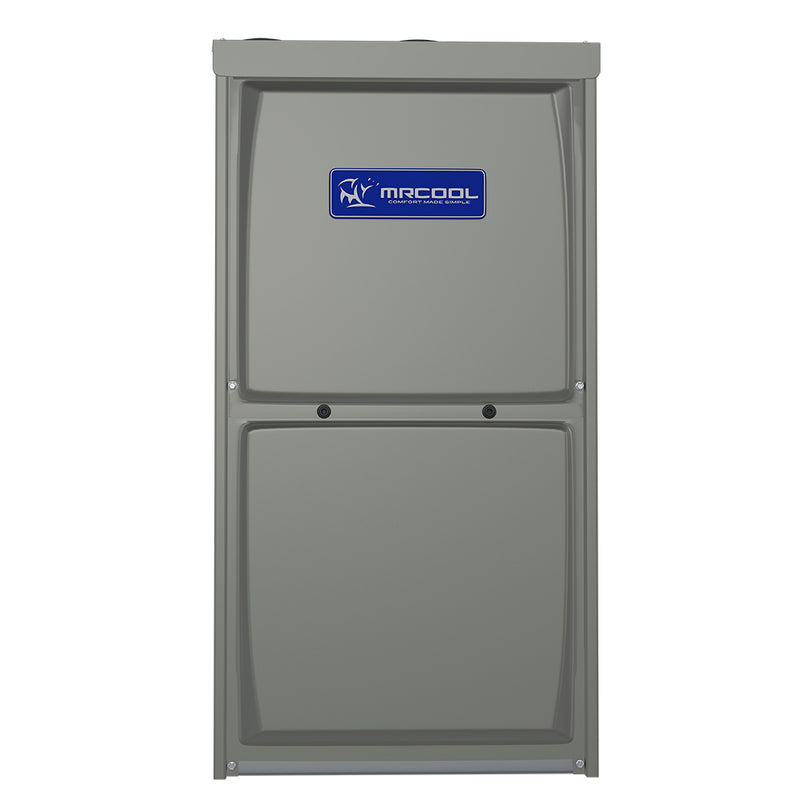

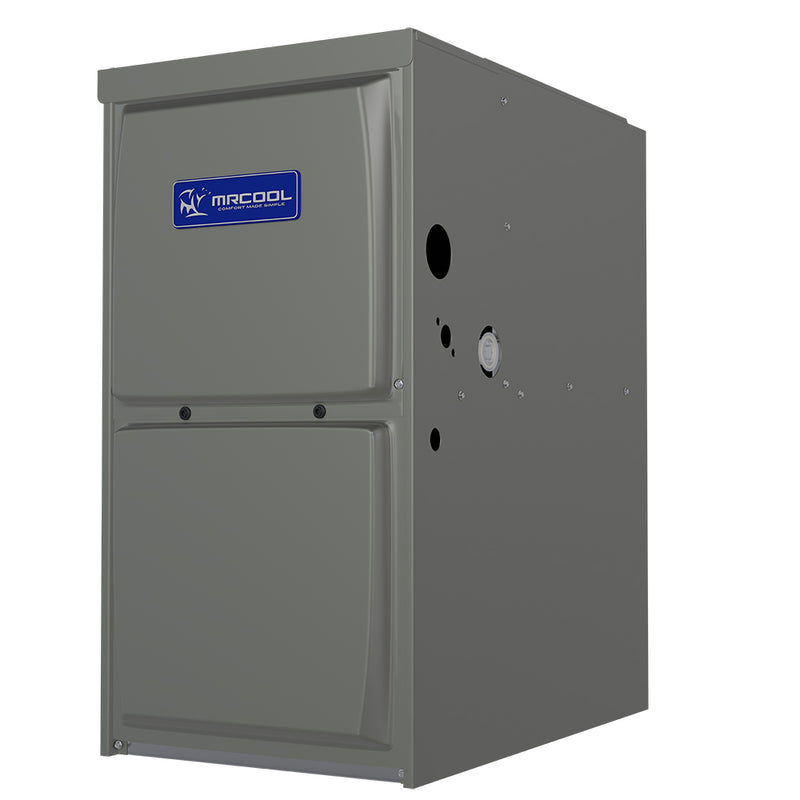

MRCOOL Signature 70,000 BTU 96% AFUE 3-Ton Multi-Position Multi-Speed Natural Gas Furnace 120V MGM96SE070B3XA

The MRCOOL® Signature Series Single-Stage 96% AFUE 70k BTU gas furnace is the perfect option to expertly warm your home no matter how harsh the weather conditions. This quiet running, energy efficient unit is designed to be used in an upflow or horizontal configuration and offers low NOx. With a 96% AFUE, this furnace will save on utility costs thanks to the multi-speed high efficiency blower motor. When matched with the proper cooling equipment, you can experience enhanced cooling SEER ratings as well. It features a durable build and finish with an aluminized steel primary heat exchanger with crimped non-welded construction. For optimal operation, the furnace offers aluminized steel inshot burners for a smooth ignition process and a durable silicon nitride ignitor. The single stage gas valve delivers heating to your home quickly. The 33 inch compact design, left or right utility connection, and zero step horizontal conversion make this furnace easy to install. It features standardized widths for easy coil fit and is design certified for direct and non-direct applications. It is easily vented with PVC pipe and features a removable floor base for bottom return air. The optional LP kit allows for an easy conversion to use liquid propane. For easy maintenance, the furnace has an easily removable slide-out blower. For peace of mind, MRCOOL® offers a 10-year parts warranty and a lifetime heat exchanger warranty on this furnace.

Key Features

• 96% AFUE energy efficiency with low NOx emissions
• Multi-speed high efficiency (constant torque) blower motor
• Aluminized steel primary heat exchanger with crimped non-welded construction
• Aluminized steel inshot burners with silicon nitride ignitor
• Single-stage gas valve for fast home heating
• Compact 33" design — upflow or horizontal configuration
• Removable floor base for bottom return air
• PVC venting — design certified for direct and non-direct vent applications
• Optional LP kit for liquid propane conversion
• Easily removable slide out blower design for easy maintenance
• Lifetime heat exchanger warranty / 10-year parts warranty
• AHRI certified

Technical Specifications

Product Documentation

• MRCOOL Signature 70,000 BTU 96% AFUE Multi-Position Gas Furnace Brochure (PDF)
• MRCOOL Signature 70,000 BTU 96% AFUE Multi-Position Gas Furnace Installation Manual (PDF)
• MRCOOL Signature 70,000 BTU 96% AFUE Multi-Position Gas Furnace Performance Specifications (PDF)
• MRCOOL Signature 70,000 BTU 96% AFUE Multi-Position Gas Furnace Warranty Document (PDF)
