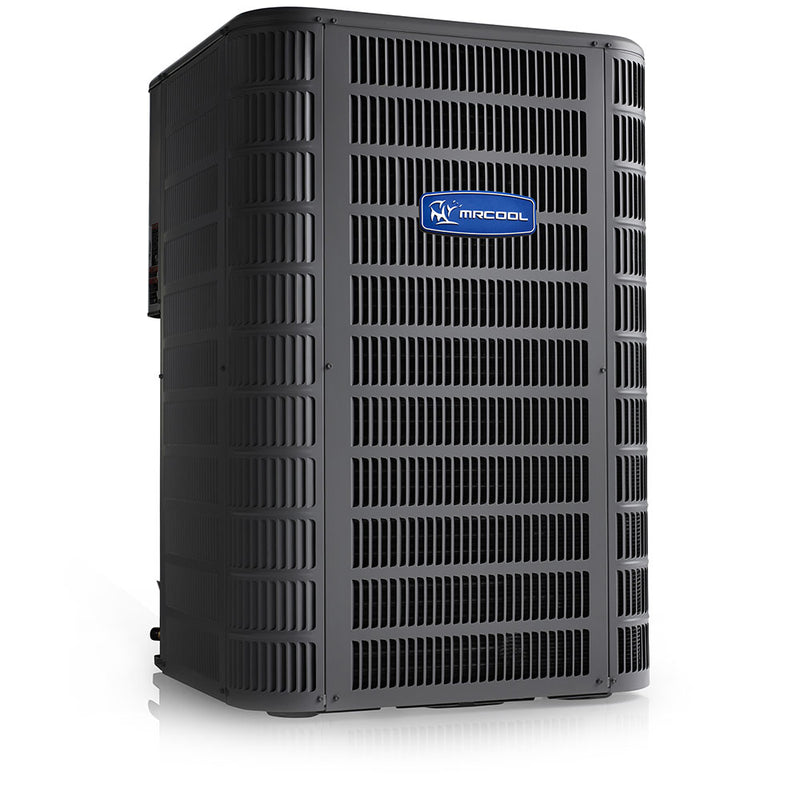

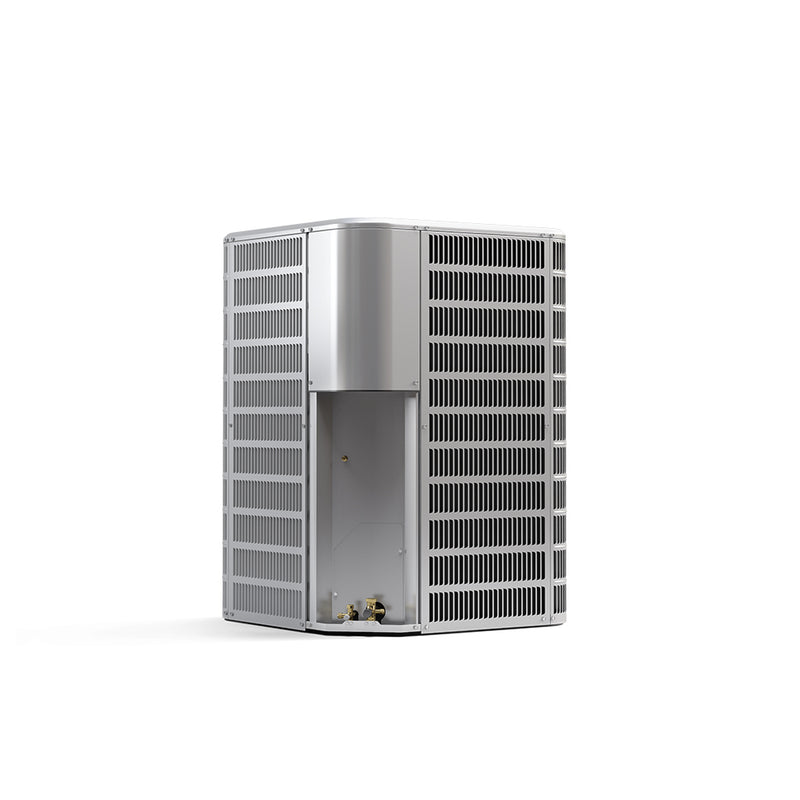

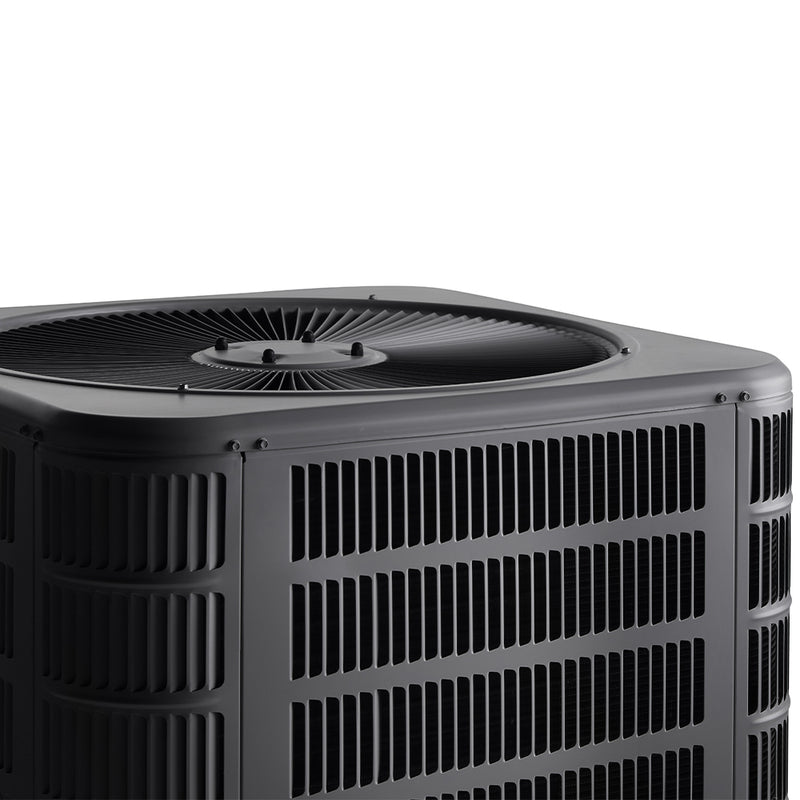

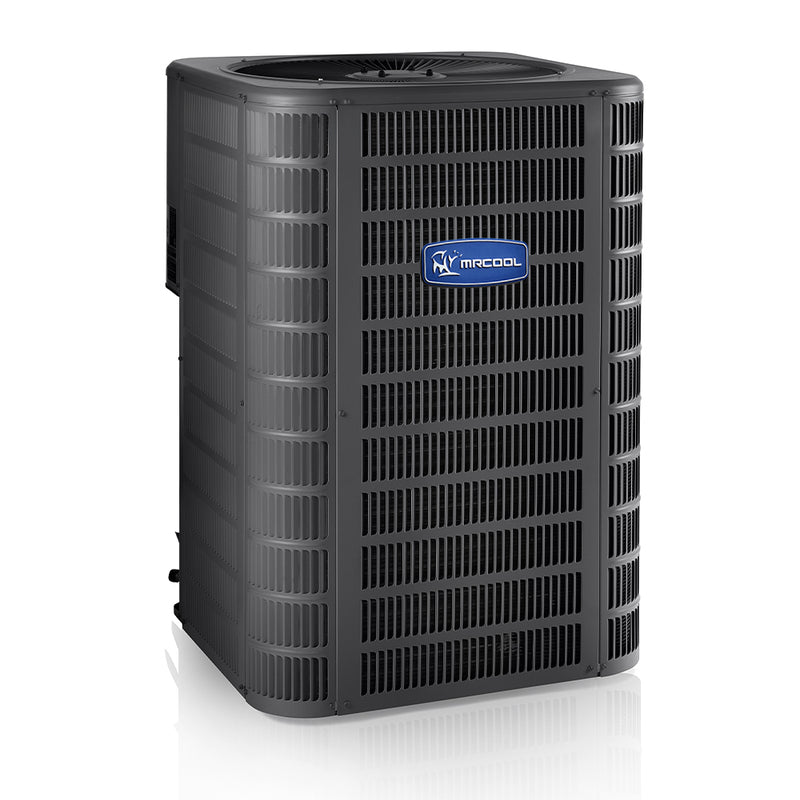

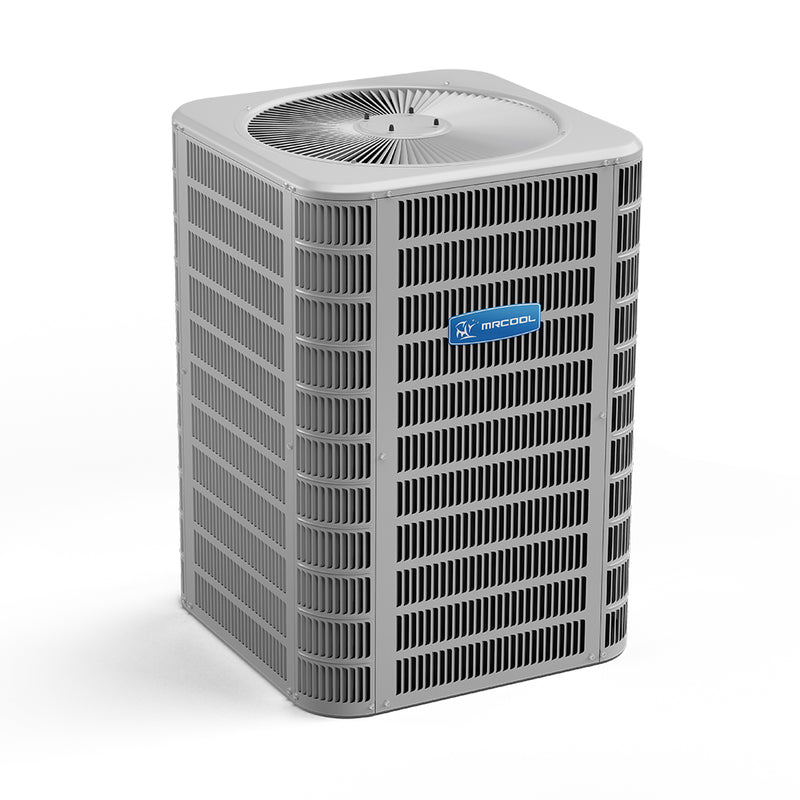

MRCOOL Signature 5 Ton 60K BTU 16 SEER R-410A A/C Condenser 208/230V MAC16060A
by MRCOOL
Original price
$2,827.20
-
Original price
$2,827.20
Original price
$2,827.20
$2,827.20
-
$2,827.20
Current price
$2,827.20
Questions? Call Us Today
Call Us on (888)-897-6153
Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 5 ton, 208/230 volt, R-410A refrigerant MRCOOL outdoor condenser. When paired with other MRCOOL products, this condenser achieves a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. This unit only provides cooling — this is not a heat pump.
Key Features
- CoolGuard total corrosion protection technology designed coil
- Corner-mounted controls for easy service
- Full metal louvered construction to protect the coil / hail protection
- Factory installed high pressure switch
- Thread-on pressure switches for simple, quick replacement
- 10-Year Limited Warranty on compressor
- Charged for 15 feet of line set

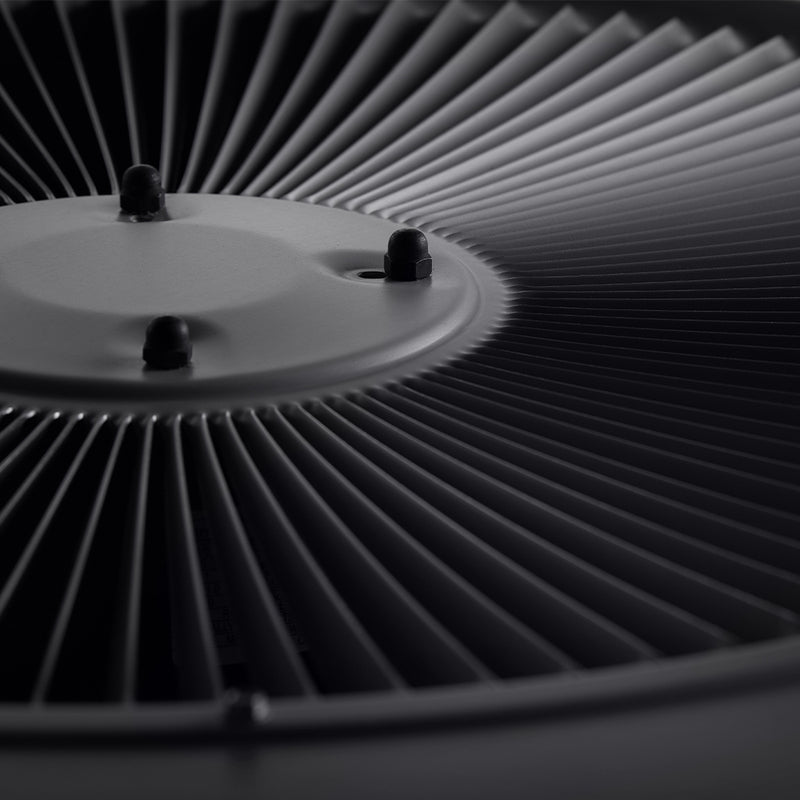

- Fan orifice for smoother airflow and sound level reduction
- Lanced fins for maximum heat transfer
- Every coil factory tested for leak proof construction
- ETL and ETLC approved | AHRI Certified
- Internally protected against high temperature motor overload conditions
Technical Specifications
| SKU / Model | MAC16060A |
| Series | Signature Split Air Conditioner |
| Unit Type | A/C Condenser (Outdoor Unit) — Cooling Only |
| Cooling Capacity | 57,000–58,000 BTU (5 Ton) |
| SEER | Up to 16 |
| EER | 11.7 |
| Coverage Area | Up to 2,500 sq. ft. |
| Voltage | 208/230V, 1-Phase, 60Hz |
| Max Fuse / Breaker | 50A |
| Min Circuit Ampacity | 29.6A |
| Refrigerant | R-410A |
| Net Weight | 226 lbs. |
| Net Dimensions (H x W x D) | 32.25 in. x 32.25 in. x 43.00 in. |
| Warranty | 5-Year Parts (unregistered) / 10-Year Parts (registered) |
