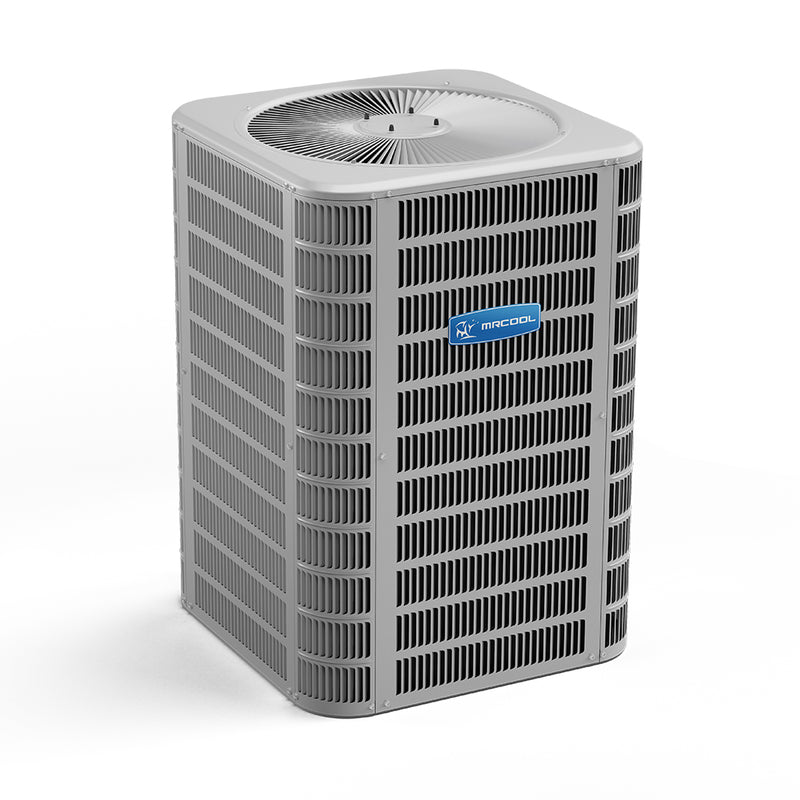

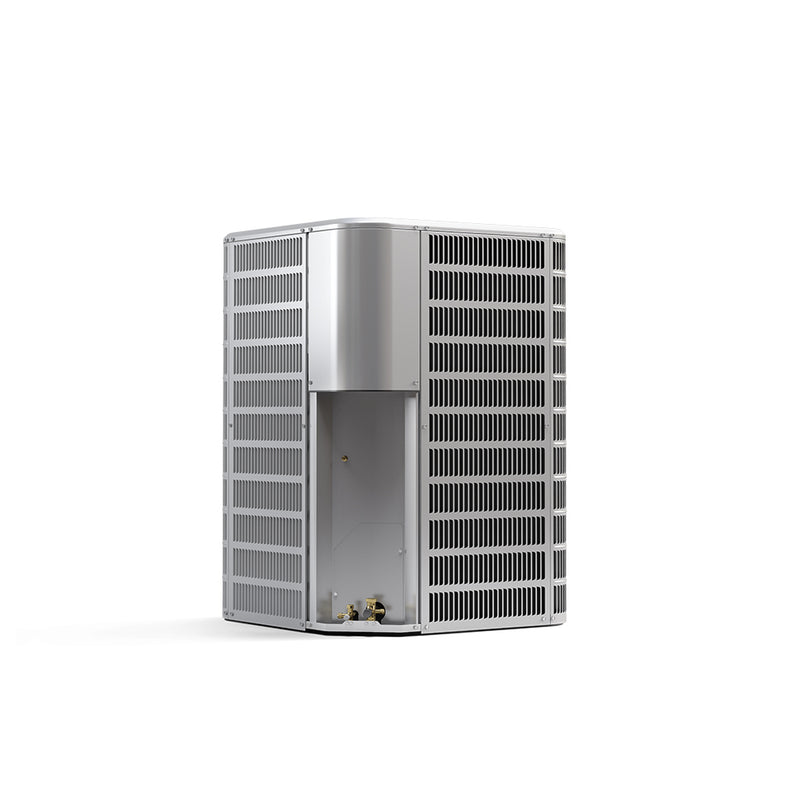

MRCOOL Signature 2 Ton 24K BTU 17 SEER R-410A A/C Condenser 208/230V MAC17024A
by MRCOOL
Original price
$2,617.20
-
Original price
$2,617.20
Original price
$2,617.20
$2,617.20
-
$2,617.20
Current price
$2,617.20
Questions? Call Us Today
Call Us on (888)-897-6153
Looking for an efficient way to cool your home and lower your energy bills? MRCOOL's Split System A/C Condensers offer a solution. This 2 ton condenser operates on 208/230 volt and uses R-410A refrigerant, achieving a seasonal energy efficiency rating of up to 17 SEER when paired with other MRCOOL products. This unit is designed for cooling only and does not function as a heat pump. Invest in a MRCOOL condenser to experience maximum comfort and energy savings.
Key Features
- CoolGuard total corrosion protection technology designed coil
- Corner-mounted controls for easy service
- Full metal louvered construction to protect the coil / hail protection
- Factory installed high pressure switch
- Thread-on pressure switches for simple, quick replacement
- 10-Year Limited Warranty on compressor
- Charged for 15 feet of line set
- Fan orifice for smoother airflow and sound level reduction
- Lanced fins for maximum heat transfer
- Every coil factory tested for leak proof construction
- ETL and ETLC approved | AHRI Certified
- Internally protected against high temperature motor overload conditions
Technical Specifications
| SKU / Model | MAC17024A |
| Series | Signature Split Air Conditioner |
| Unit Type | A/C Condenser (Outdoor Unit) — Cooling Only |
| Cooling Capacity | 24,000 BTU (2 Ton) |
| SEER | Up to 17 |
| Voltage | 208/230V, 1-Phase, 60Hz |
| Max Fuse / Breaker | 20A |
| Min Circuit Ampacity | 15.4A |
| Refrigerant | R-410A |
| Gross Weight | 170 lbs. |
| Net Dimensions (H x W x D) | 37.25 in. x 28.25 in. x 28.25 in. |
| Warranty | 5-Year Parts (unregistered) / 10-Year Parts (registered) |
