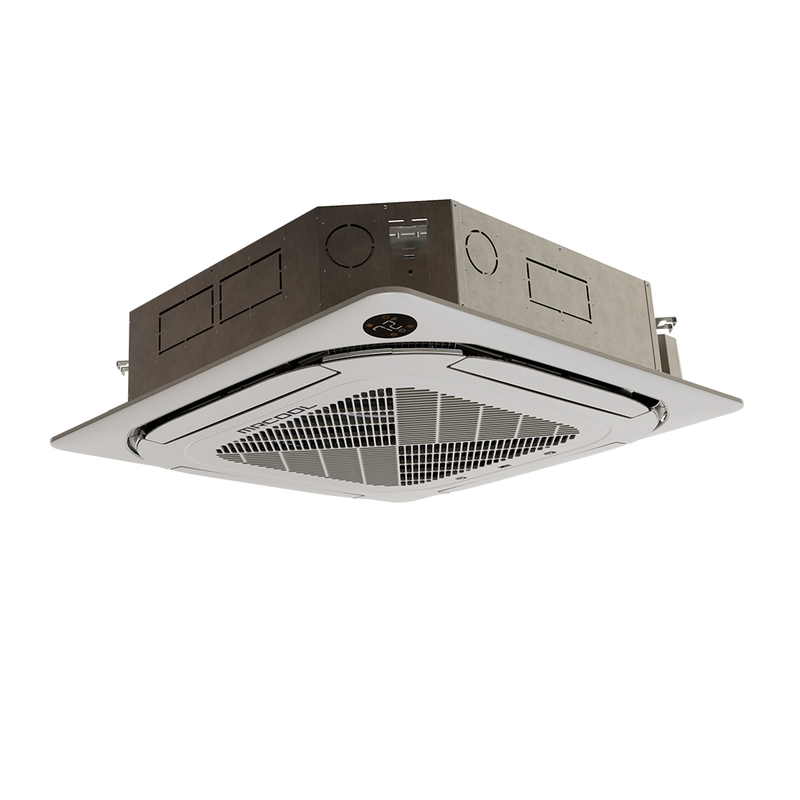

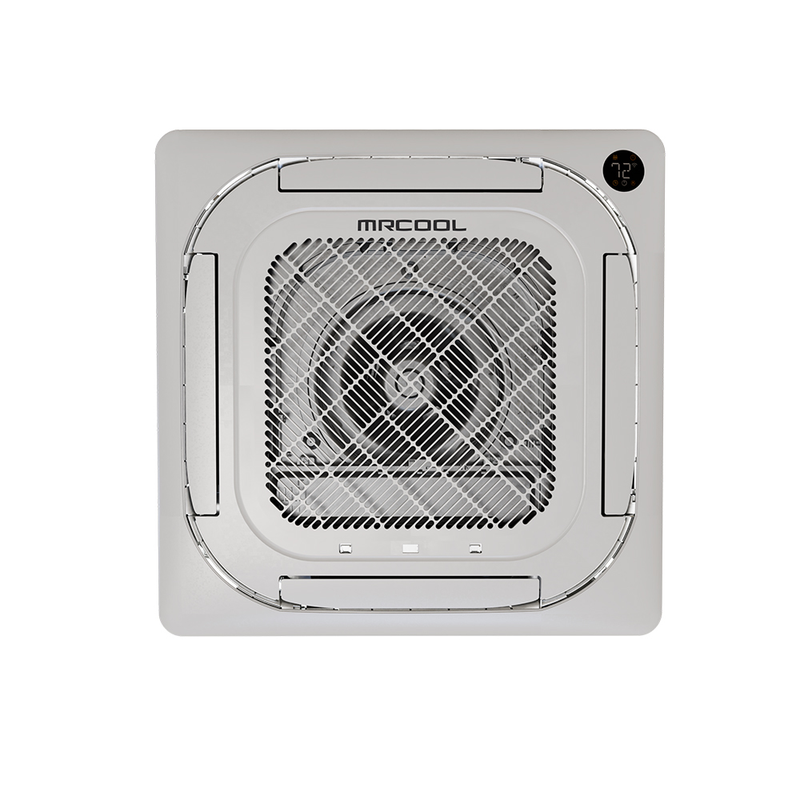

MRCOOL Olympus 24,000 BTU 2-Ton R-454B Ceiling Cassette Mini-Split Air Handler 208/230V CASSETTE24HP-230C-P-O
Questions? Call Us Today
Call Us on (888)-897-6153
The MRCOOL® OLYMPUS 24K CASSETTE offers powerful heating and cooling for areas up to 1,050 square feet, making it a perfect solution for larger bedrooms, home offices, or smaller commercial spaces. Designed to mount seamlessly within the ceiling, this system integrates effortlessly into your environment, providing a modern and sophisticated aesthetic that complements any room's décor. Its versatile design makes it a great option for both residential and business settings, optimizing space while delivering efficient climate control.
Operating at a quiet 48.5 dB, the indoor fan ensures a serene atmosphere without sacrificing performance. The minimal noise level allows for uninterrupted comfort, making it ideal for noise-sensitive areas like bedrooms, offices, or nurseries.
The unit is equipped with R-454B refrigerant, an environmentally friendly choice that offers superior performance with a reduced environmental impact. With its low global warming potential, R-454B refrigerant not only minimizes the carbon footprint of your system but also maintains high energy efficiency.
Backed by a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty, the MRCOOL® OLYMPUS 24K CASSETTE ensures long-lasting durability and cutting-edge technology.
Technical Specifications
| Tonnage | 2 Ton |
| Refrigerant Type | R-454B |
| Voltage | 208/230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 15 A |
| Min Circuit Ampacity | 3 A |
| Sound Level (Indoor) | 48.5 / 45 / 42.5 / 33.5 / 33.5 dBA |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
| Net Weight | 47.18 lbs |
| Net Dimensions (D×H×W) | 32.68" × 8.07" × 32.68" |
| Gross Weight | 59.08 lbs |
| GTIN / UPC | 00840255588034 |
| Warranty | Limited Lifetime / 7-Year Compressor / 5-Year Parts |
