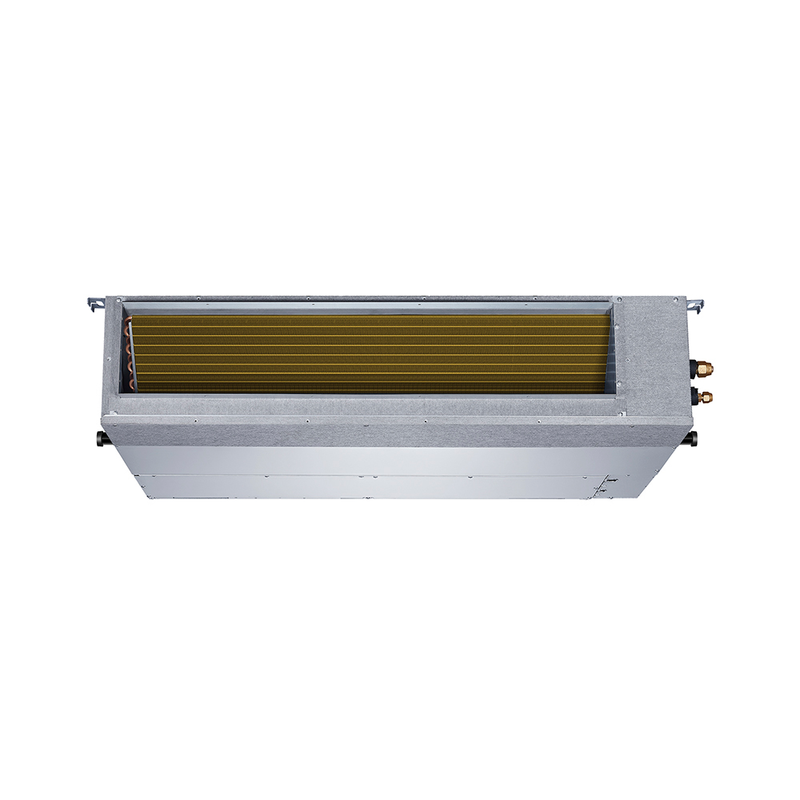

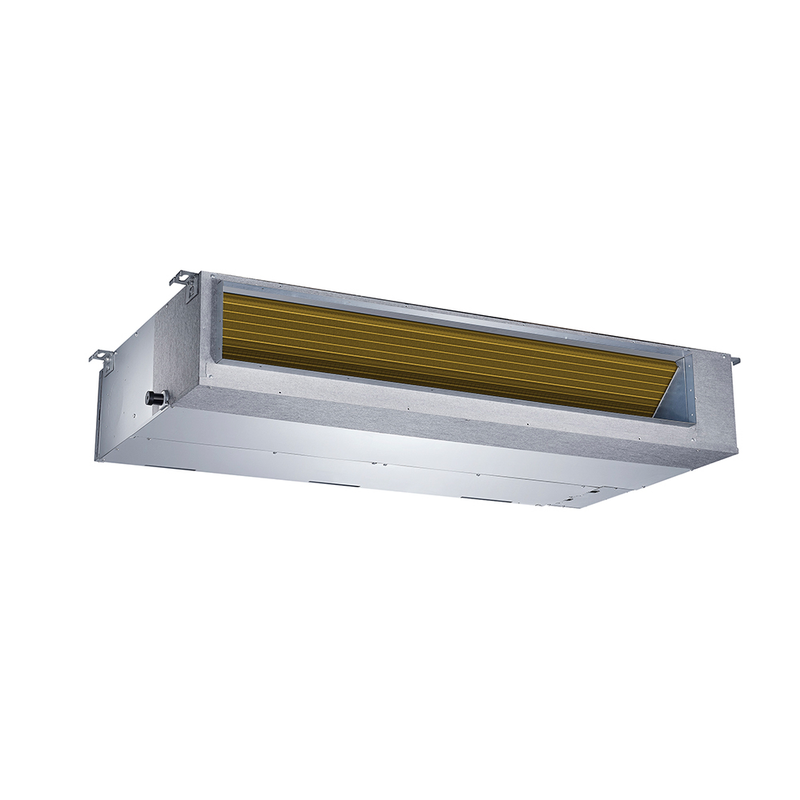

MRCOOL Olympus 18,000 BTU 1.5-Ton R-454B Ducted Mini-Split Air Handler 208/230V DUCT-18HP-230B-O
Questions? Call Us Today
Call Us on (888)-897-6153
The MRCOOL® OLYMPUS 18K DUCT Air Handler delivers dependable heating and cooling for areas up to 800 square feet, making it an excellent solution for spacious bedrooms, home offices, or compact commercial spaces. Its low-profile, ceiling-concealed installation allows it to virtually disappear from view, maintaining a clean and modern interior without sacrificing performance.
Control is effortless thanks to the included wired wall-mounted controller and handheld remote. Adjusting your temperature preferences is simple and convenient—no need to interrupt your routine or leave your seat.
Environmentally conscious performance is also a hallmark of this system, utilizing advanced R-454B refrigerant. This low global warming potential refrigerant provides outstanding heating and cooling while significantly reducing your carbon footprint.
The MRCOOL® OLYMPUS 18K DUCT Air Handler is backed by a limited lifetime warranty, along with 7-year compressor protection and a 5-year parts warranty.
Technical Specifications
| Tonnage | 1.5 Ton |
| Refrigerant Type | R-454B |
| Voltage | 208/230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 15 A |
| Min Circuit Ampacity | 3 A |
| Sound Level (Indoor) | 40 / 40 / 39 / 38 / 32 dBA |
| Liquid Line Size | 1/4" |
| Suction Line Size | 1/2" |
| Net Weight | 54.45 lbs |
| Net Dimensions (D×H×W) | 26.54" × 8.27" × 34.65" |
| Gross Weight | 66.14 lbs |
| GTIN / UPC | 00840255587686 |
| Warranty | Limited Lifetime / 7-Year Compressor / 5-Year Parts |
