MRCOOL Central Ducted 4 Ton 48K BTU 17.3 SEER R-410A Complete System Heat Pump Condenser + Air Handler 208/230V CENTRAL-48-HP-230-00
Questions? Call Us Today
Call Us on (888)-897-6153
The MRCOOL® Central Ducted System is a fully matched, contractor-installed central split system that includes everything needed for a complete installation:
- MRCOOL Central Ducted 48K BTU Heat Pump Condenser (CENTRAL-48-HP-C-230-00)
- MRCOOL Central Ducted 48K BTU Multi-Position Air Handler (CENTRAL-48-HP-MUAH-230-00)

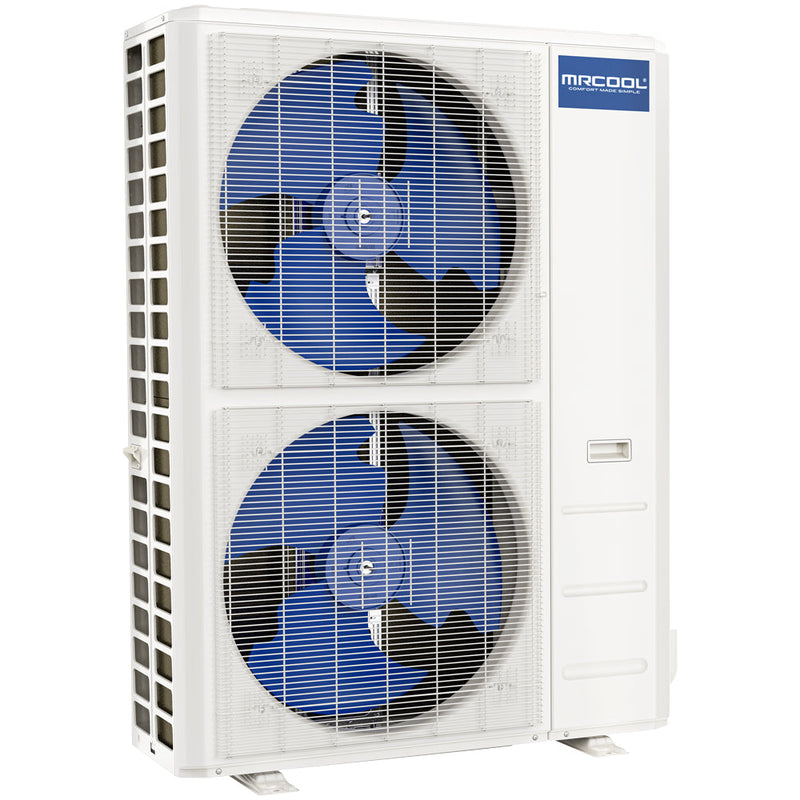

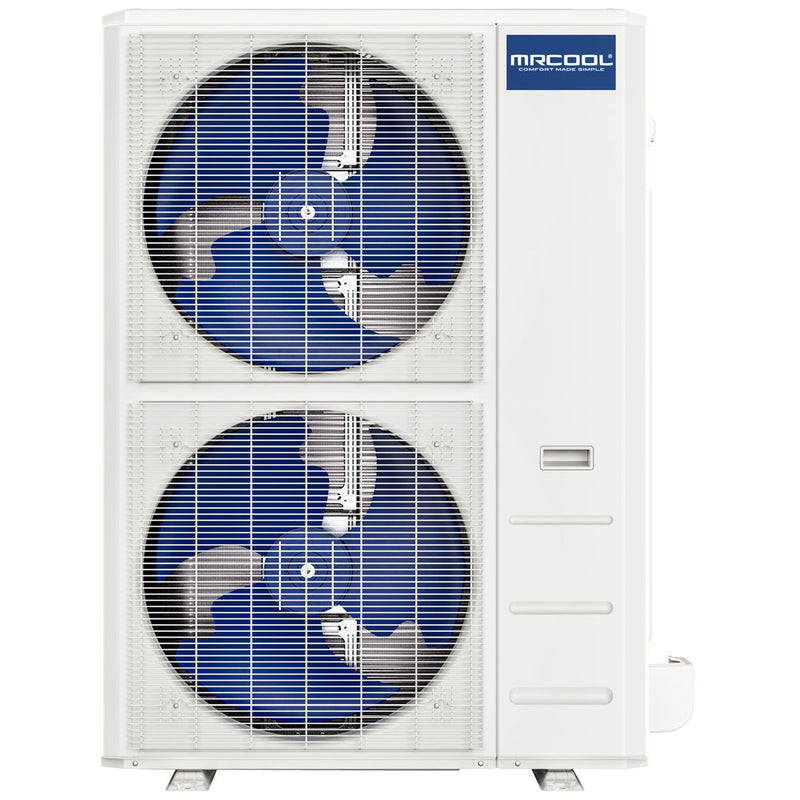

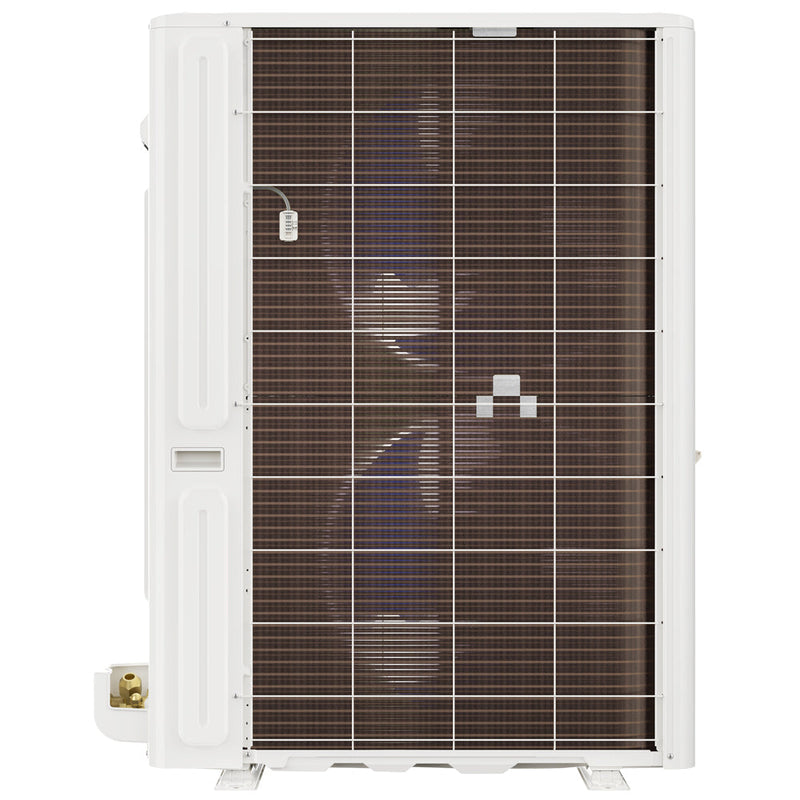

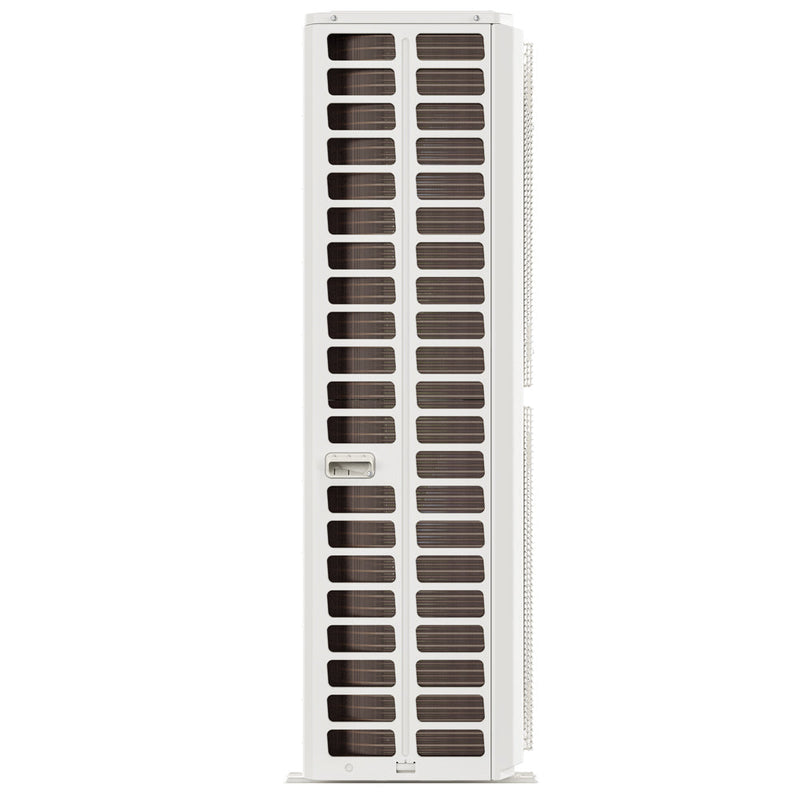

Condenser
The MRCOOL® Central Ducted 48K BTU Heat Pump Condenser delivers reliable, energy-efficient comfort all year long. With a SEER rating of 17.3 and HSPF of 10, this unit provides consistent heating and cooling while keeping energy use in check. Factory-charged with R-410A refrigerant, the system is designed for straightforward professional installation. The condenser features timer mode, auto cool mode, fan only mode, and more. A wired thermostat is included.

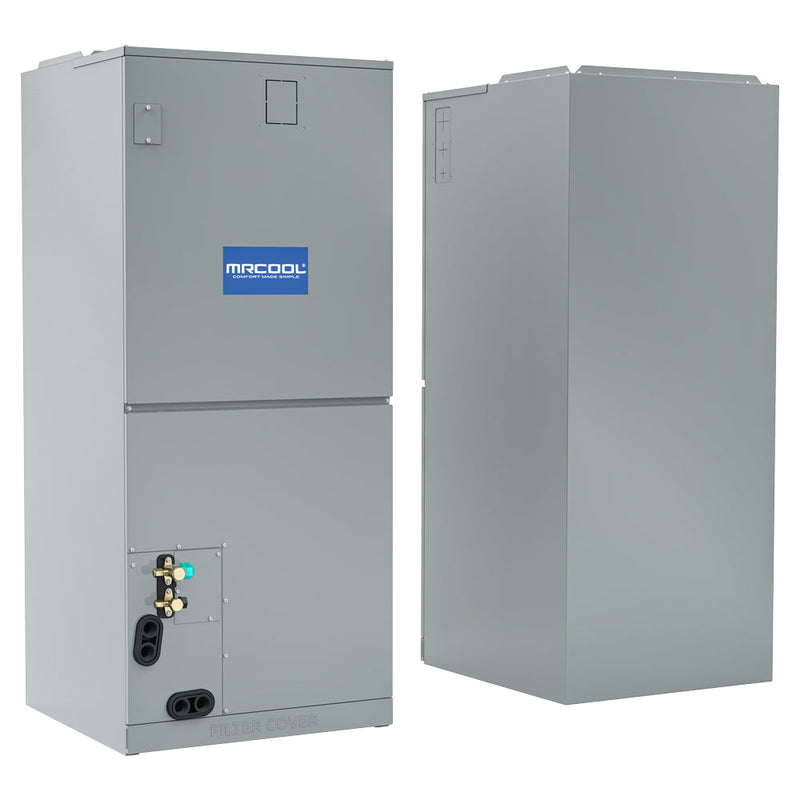

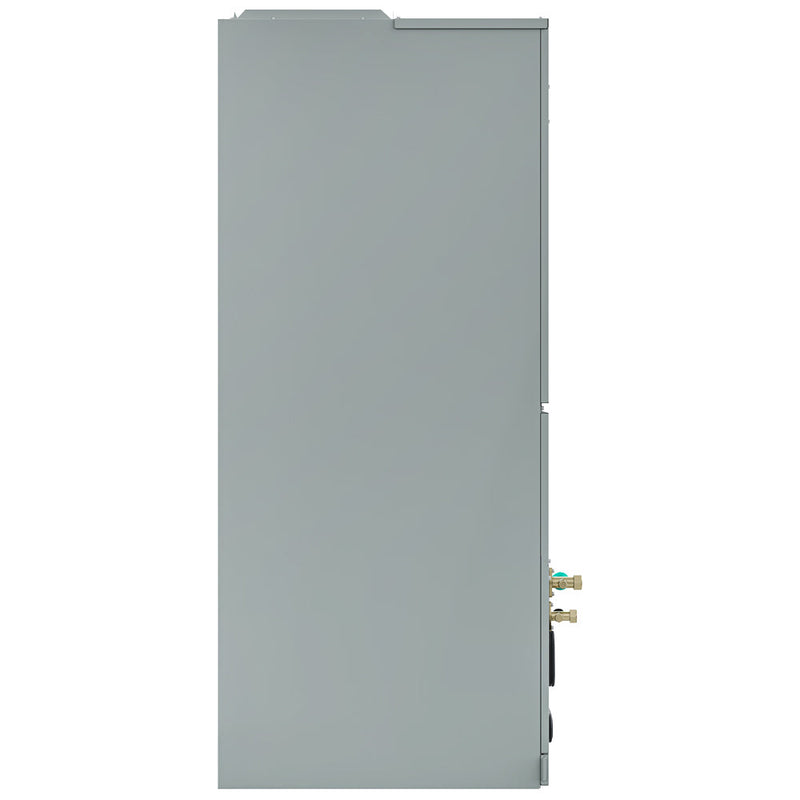

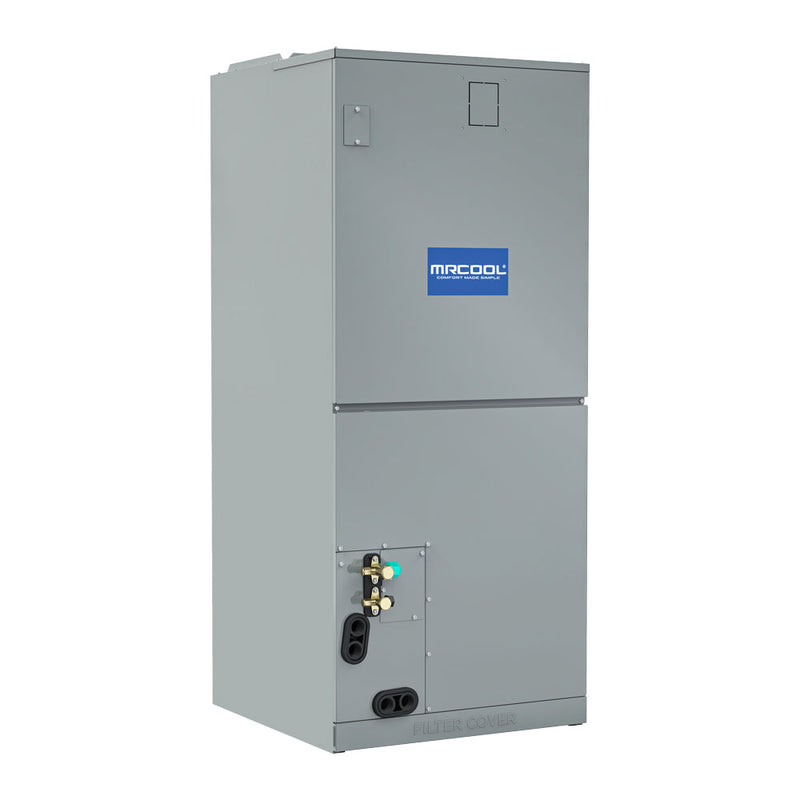

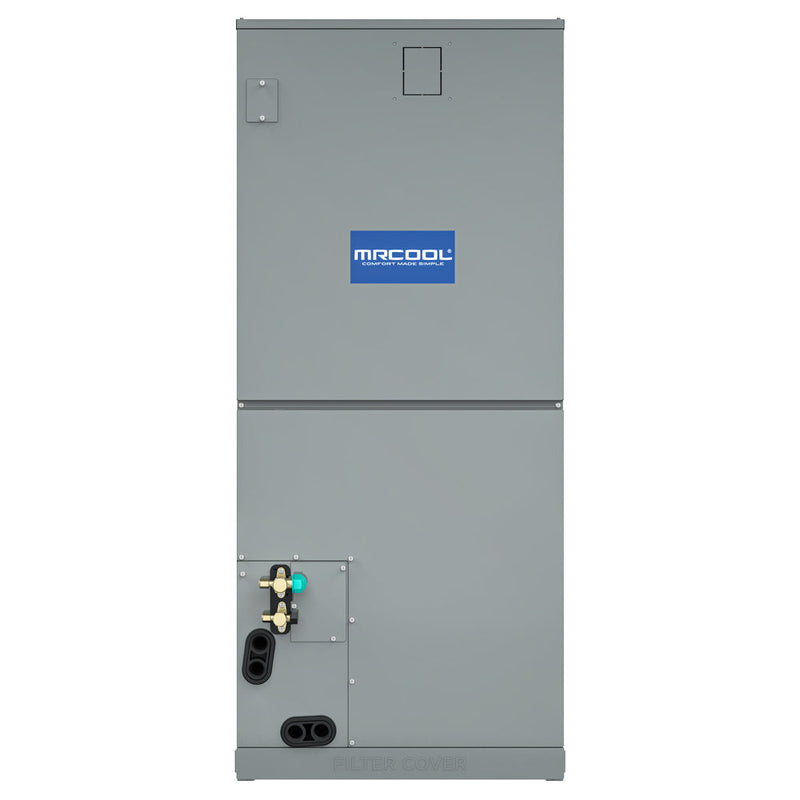

Air Handler
The MRCOOL® Central Ducted 48K BTU Multi-Position Air Handler is engineered to deliver dependable, high-efficiency comfort for homes and light-duty applications. Supporting upflow, downflow, and horizontal installation, this unit fits easily into attics, crawl spaces, closets, or mechanical rooms. An optional heating kit is available for supplemental heat. When paired with the matching heat pump condenser, this bundle provides a complete central ducted system ready for professional installation.
Technical Specifications
| Bundle SKU | CENTRAL-48-HP-230-00 |
| Condenser SKU | CENTRAL-48-HP-C-230-00 |
| Air Handler SKU | CENTRAL-48-HP-MUAH-230-00 |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Tonnage | 4 Ton |
| SEER | 17.3 |
| HSPF | 10 |
| Refrigerant Type | R-410A |
| Refrigerant Volume (Condenser) | 130.05 oz |
| Voltage | 208/230V |
| Phase | 1 |
| Hz | 60 |
| Condenser Max Fuse/Breaker | 60A |
| Condenser MCA | 38A |
| Air Handler Sound Level | 49.0 / 47.5 / 43.5 dBA |
| Min Ambient Cooling | -13°F |
| Min Ambient Heating | -13°F |
| Air Handler Mount Type | Multi-Position (Upflow / Downflow / Horizontal) |
| Auxiliary Heater Available | Yes |
| Condenser Dimensions (D x H x W) | 16.34 x 52.48 x 37.48 in |
| Condenser Net Weight | 217.59 lbs |
| Air Handler Dimensions (D x H x W) | 21.02 x 49.02 x 21.02 in |
| Air Handler Net Weight | 132.50 lbs |
| Combined Net Weight | 350.09 lbs |
Certifications
- AHRI Certified
Warranty
- 10 Year Parts Warranty
- 10 Year Labor Warranty
Product Documentation
- MRCOOL Central Ducted 48K BTU Complete System AHRI Certification (PDF)
- MRCOOL Central Ducted System Performance Specification Sheet (PDF)
- MRCOOL Central Ducted System Installation Manual (PDF)
- MRCOOL Central Ducted System Warranty Document (PDF)
