MRCOOL 4th Generation Advantage Series 24k-230v Air Handler A-24-HP-WMAH-230C

by MRCOOL
Original price $395.56 - Original price $395.56
Original price
$395.56
$395.56 - $395.56
Current price $395.56

Questions? Call Us Today

Call Us on (888)-897-6153

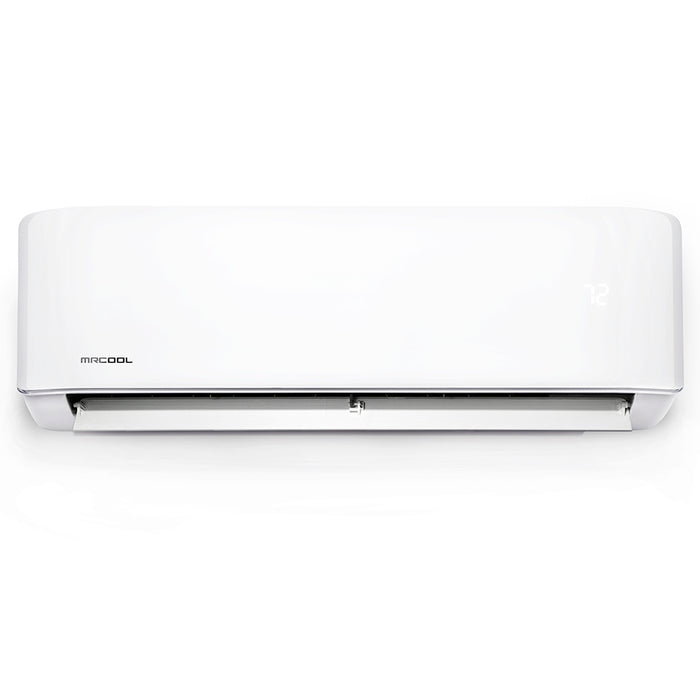

MRCOOL 4th Generation Advantage Series 24k-230v Air Handler A-24-HP-WMAH-230C


This new 4th generation MRCOOL Advantage series now features an improved SEER of 17.5 while providing quality comfort immediately upon installation by an HVAC technician. The competitive price makes this combination an excellent choice for those searching for quality, efficiency, quiet operation, and affordability. Staying environmentally-friendly, the condenser features the chlorine-free refrigerant R-410A.

This is an excellent option for those looking for comfort and innovative technology. Using Wi-Fi enabled control, this system is easy to set up and can be controlled with the SmartHVAC app or your Amazon Alexa or Google Assistant.

Feature List

  • Installation kit included
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • The new 4th generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
  • Installation by a licensed professional required where applicable
  • 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
  • R-410A environmentally friendly refrigerant
  • Sleep mode, louver position memory, and auto restart functions
  • Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor

Specifications

HSPF-4

9.8

HSPF-5

8

HSPF2-4

8.6

HSPF2-5

6.6

COOLING CAPACITY (BTU)

24000

HEATING CAPACITY (BTU)

24000

VOLTAGE (V)

208-230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

15

MIN CIRCUIT AMPACITY (A)

3

COLOR

White

MAX COVERAGE AREA

1000

ZONE CAPACITY

1

REFRIGERANT TYPE

R-410A

DECIBEL RATING (DBA)

39.5

DECIBEL RATING LOW (DBA)

35

DECIBEL RATING HIGH (DBA)

45.5

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

5/8

FILTER TYPE

Washable

LOW VOLTAGE COMPENSATION

No

OVERLOAD PROTECTION

Yes

ADJUSTABLE THERMOSTAT

Yes

FAN ONLY OPTION

Yes

QUIET MODE

Yes

SLEEP MODE

No

AUTO COOL

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REMOTE CONTROL INCLUDED

Yes

UL LISTED

Yes

CSA LISTED

Yes

ETL LISTED

Yes

ENERGY STAR COMPLIANT

No

ENERGY STAR CERTIFIED

No

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

1-Year Compressor, 2-Year Parts and 1-Year Remote

BASE WARRANTY

None

REGISTERED PARTS WARRANTY

2-year

BASE PARTS WARRANTY

None

REGISTERED COMPRESSOR WARRANTY

1-year

BASE COMPRESSOR WARRANTY

None

REGISTERED REMOTE WARRANTY

1-year

BASE REMOTE WARRANTY

None

REGISTERED LABOR WARRANTY

None

BASE LABOR WARRANTY

None

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

8.90

NET HEIGHT (IN)

13.19

NET WIDTH (IN)

42.52

NET WEIGHT (LBS)

29.98

GROSS DEPTH (IN)

16.34

GROSS HEIGHT (IN)

12.60

GROSS WIDTH (IN)

45.47

GROSS WEIGHT (LBS)

39



Manuals & Guides

Brochure
Install Manual
Warranty Documents
AHRI Certs
Energy Guide Certs
