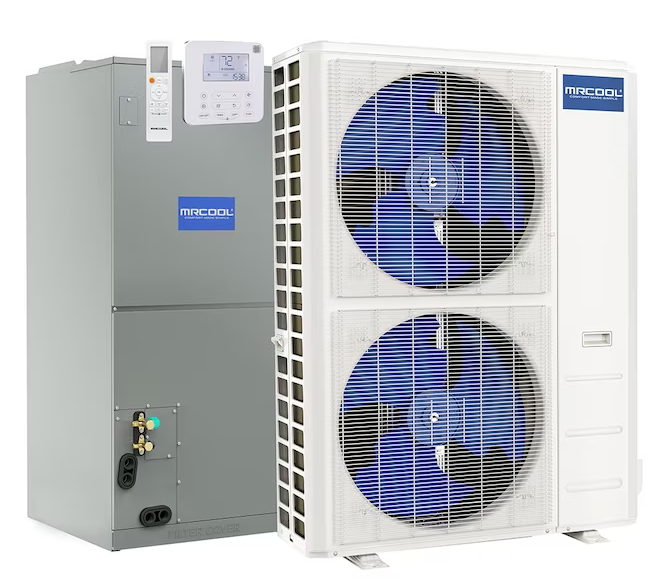

MRCOOL 36K MRCOOL® Hyper Heat Central Ducted Complete System CENTRAL-36-HP-230A00

by MRCOOL
Original price $3,458.00 - Original price $3,458.00
Original price
$3,458.00
$3,458.00 - $3,458.00
Current price $3,458.00

Questions? Call Us Today

Call Us on (888)-897-6153

MRCOOL 36K MRCOOL® Hyper Heat Central Ducted Complete System CENTRAL-36-HP-230A00

This MRCOOL Central Ducted Hyper Heat Complete System will be one of the best decisions that you could make for your comfort, as it’ll help you save money and time, all while increasing your comfort!

Bundle Includes:

  1. MRCOOL 36K BTU, 16 SEER2, Hyper Heat Central Ducted Heat Pump Condenser (CENTRAL-36-HP-C-230A00)

  2. MRCOOL 36K BTU, 16 SEER2, Hyper Heat Central Ducted Air Handler (CENTRAL-36-HP-MUAH230A00)



The new MRCOOL 36K BTU Hyper Heat Central Ducted Heat Pump Split System is a great choice for heating and cooling around 1,500sqft and can handle extreme winter and summer temperatures! Boasting a DC Inverter and state-of-the-art variable speed technology, this unit offers exceptional efficiency, leading to significant savings on utility expenses without compromising performance. With an impressive SEER2 rating of up to 16 and an HSPF2-4 rating of up to 9.5, its enhanced heating capacity ensures indoor comfort even when outdoor temperatures range from -22°F to 122°F.


Installation is simple for professional HVAC technicians using the MRCOOL® No-Vac® Quick Connect® Line Set. This exclusive line set eliminates the need for vacuuming or flare welding and is kink-resistant, accelerating the connection process and reducing installation costs. Moreover, the eco-friendly R-410A refrigerant ensures no environmental harm.

Constructed from high-quality materials like painted galvanized steel, this durable unit can withstand damage from severe weather, animals, or yard equipment, guaranteeing reliable performance for years. In the unlikely event of any issues, the unit is supported by a 10-year warranty covering the compressor, parts, and labor. Additionally, the labor warranty is automatically activated upon installation, eliminating the need for a time-consuming registration process.

The air handler for the 36K MRCOOL Hyper Heat Central Ducted System has a side-discharge design, slide-out blower, self-diagnostics panel, and removable filters to make maintenance simple and easy. If required, an optional heat kit can be acquired separately. The unit also includes a wired thermostat and wireless remote.

The multi-position air handler, which can accommodate upflow, downflow, horizontal left and horizontal right ductwork needs, combined with the highly efficient condenser is a pairing that will ensure ultimate comfort and reduce your bills as soon as it’s installed.

The self-diagnostics of this system will allow you to identify error codes on the air handler or the thermostat. This variable speed unit will keep your bills low and your home’s air clean with filters.  Choose this MRCOOL 36,000 BTU Hyper Heat Central Ducted DC Inverter Heat Pump System for comfort exactly how you deserve it.

Specifications

Condenser Specifications:

SEER2 16
EER2 10
HSPF2
hspf2-4/2-5: 9.5/8
CFM 4500
COOLING CAPACITY 36000
HEATING CAPACITY 40000
VOLTAGE 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER 50
MIN CIRCUIT AMPACITY 41
REFRIGERANT TYPE R410A
REFRIGERANT VOLUME 165.79oz
DECIBEL RATING 64
INVERTER DC
MAX LINESET LENGTH 213.25 ft
LIQUID LINE SIZE 3/8in
SUCTION LINE SIZE 3/4in
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE Yes
AHRI CERTIFIED Yes
BASE WARRANTY
10yrs Parts and Labor
PROPOSITION 65 WARNING Yes
NET DEPTH 16.34in
NET HEIGHT 52.48in
NET WIDTH 37.48in
NET WEIGHT 227.07lbs
GROSS DEPTH 19.49in
GROSS HEIGHT 57.48in
GROSS WIDTH 43.11in
GROSS WEIGHT 255.73lbs


Air Handler Specifications:

CFM
1188.24/1082.35/970.59/864.71
COOLING CAPACITY 36000
HEATING CAPACITY 40000
VOLTAGE 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER 15
MIN CIRCUIT AMPACITY 5
REFRIGERANT TYPE R410A
DECIBEL RATING 43
DECIBEL RATING LOW 41
DECIBEL RATING HIGH 45
NUMBER OF SPEEDS 4
INVERTER DC
MAX LINESET LENGTH 213.25 ft
LIQUID LINE SIZE 3/8in
SUCTION LINE SIZE 3/4in
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE Yes
AUXILIARY HEATER SIZES
5kW, 8kW, 10kW, 15kW
AHRI CERTIFIED Yes
BASE WARRANTY
10yrs Parts and Labor
PROPOSITION 65 WARNING Yes
NET DEPTH 21.02in
NET HEIGHT 49.02in
NET WIDTH 21.02in
NET WEIGHT 129.63lbs
GROSS DEPTH 24.41in
GROSS HEIGHT 52.56in
GROSS WIDTH 26.57in
GROSS WEIGHT 154.10lbs



Manuals & Guides

Brochure

Install Manual

Specifications

Remote Manual

Warranty Documents

Accessory Manual

AHRI Certs
