MRCOOL 24K Hyper Heat Central Ducted Complete System CENTRAL-24-HP-230A00
Questions? Call Us Today
Call Us on (888)-897-6153
The MRCOOL® 24K BTU Hyper Heat Central Ducted Complete System bundles the Hyper Heat condenser and multi-position air handler into a single, ready-to-install central ducted heat pump solution. Boasting a DC Inverter and state-of-the-art variable speed technology, this system delivers exceptional efficiency with a SEER2 rating of up to 17.4 and an HSPF2-4 rating of up to 10, maintaining indoor comfort even when outdoor temperatures range from -22°F to 122°F. Installation is simple for professional HVAC technicians using the MRCOOL® No-Vac® Quick Connect® Line Set — eliminating the need for vacuuming or flare welding. In the unlikely event of any issues, the system is supported by a 10-year warranty covering the compressor, parts, and labor, automatically activated upon installation with no registration required.
Key Features
- Enhanced Heating Capacity — operates from -22°F to 122°F
- DC Inverter with variable speed technology for maximum efficiency

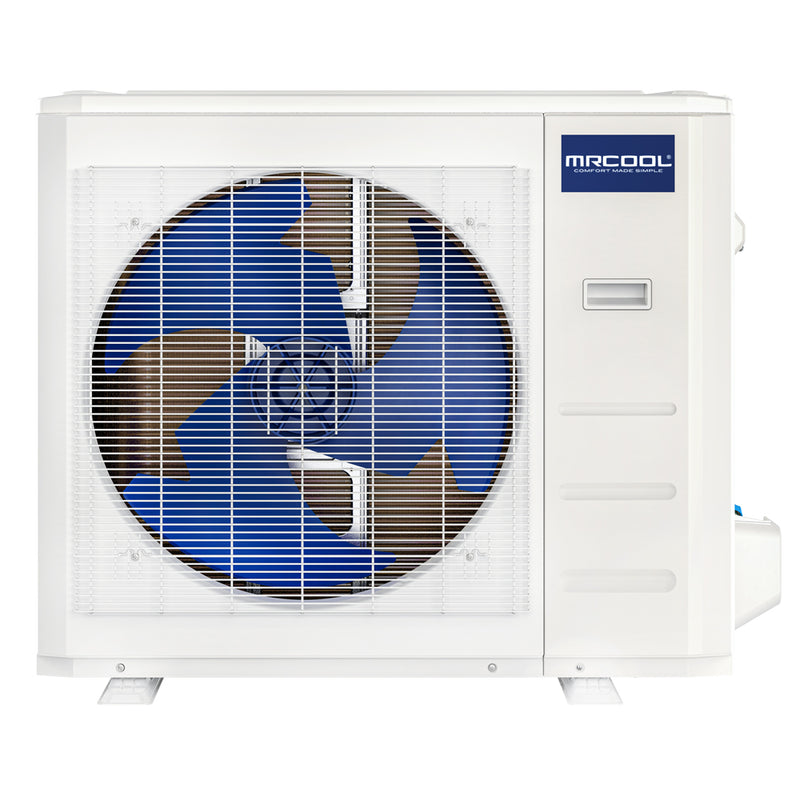

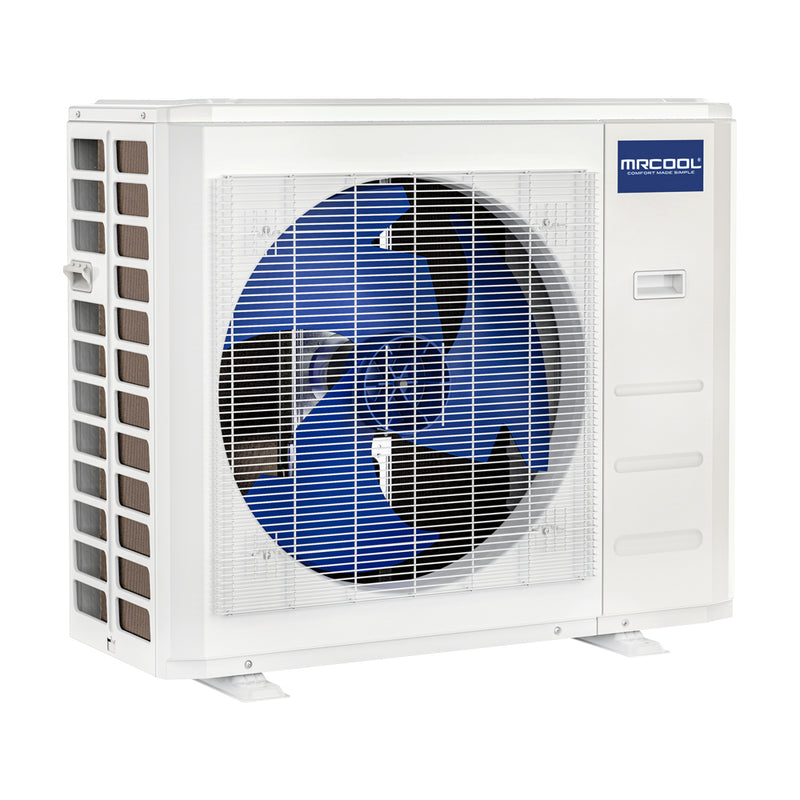

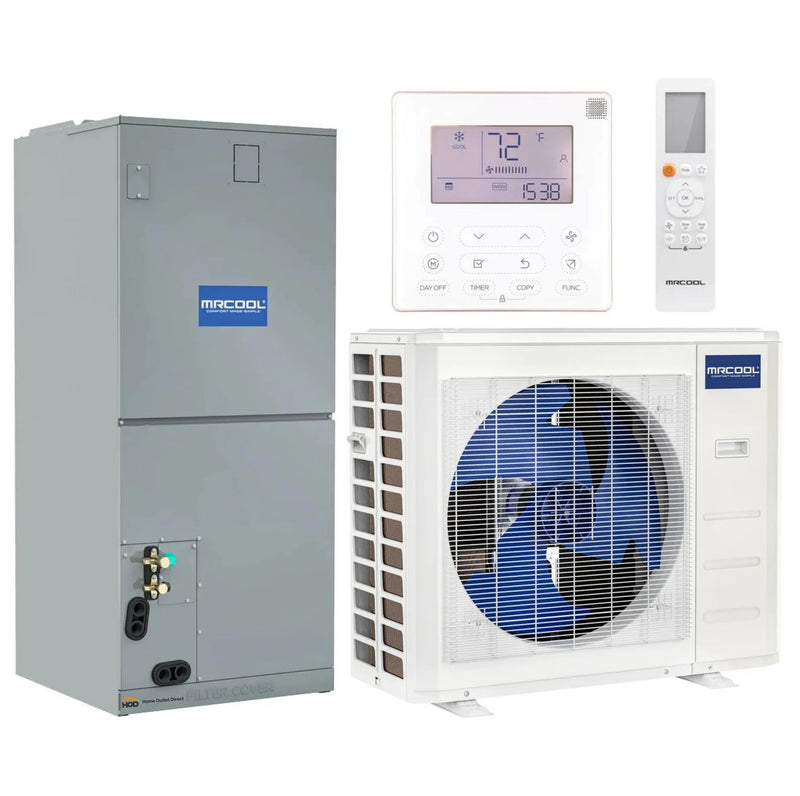

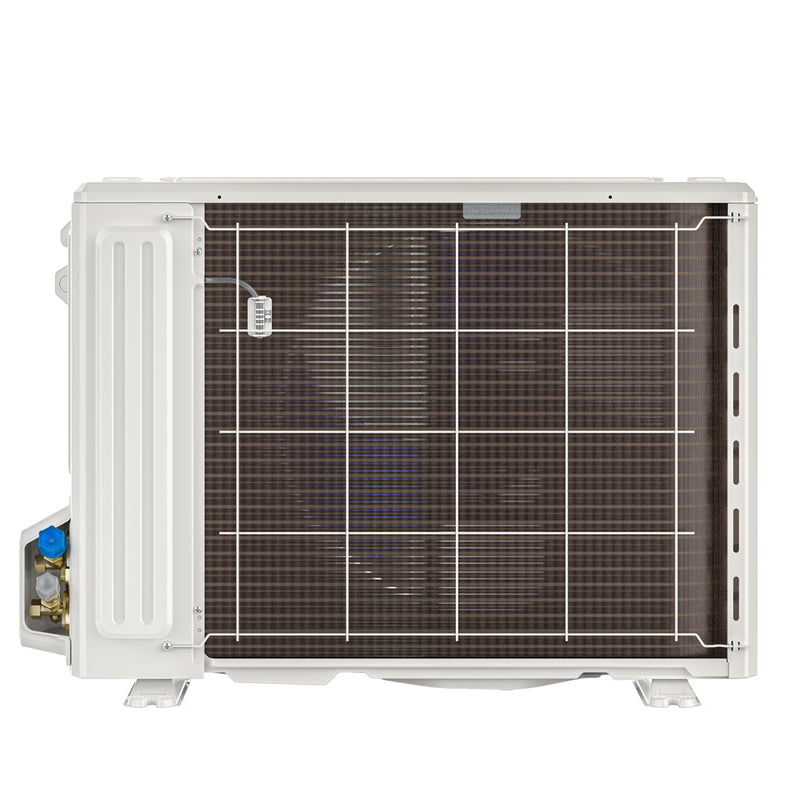

- Includes both outdoor condenser and indoor multi-position air handler
- Compatible with MRCOOL® No-Vac® Quick Connect® Line Set

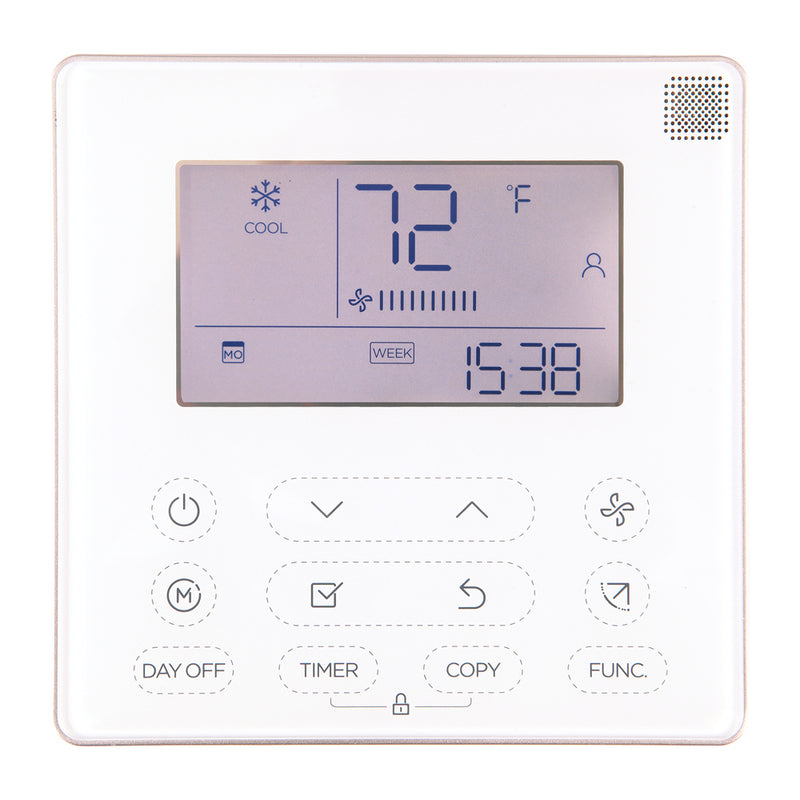

- Wired Thermostat Included (0.78 in x 4.72 in x 4.72 in)
- Multi-Position Air Handler Installation

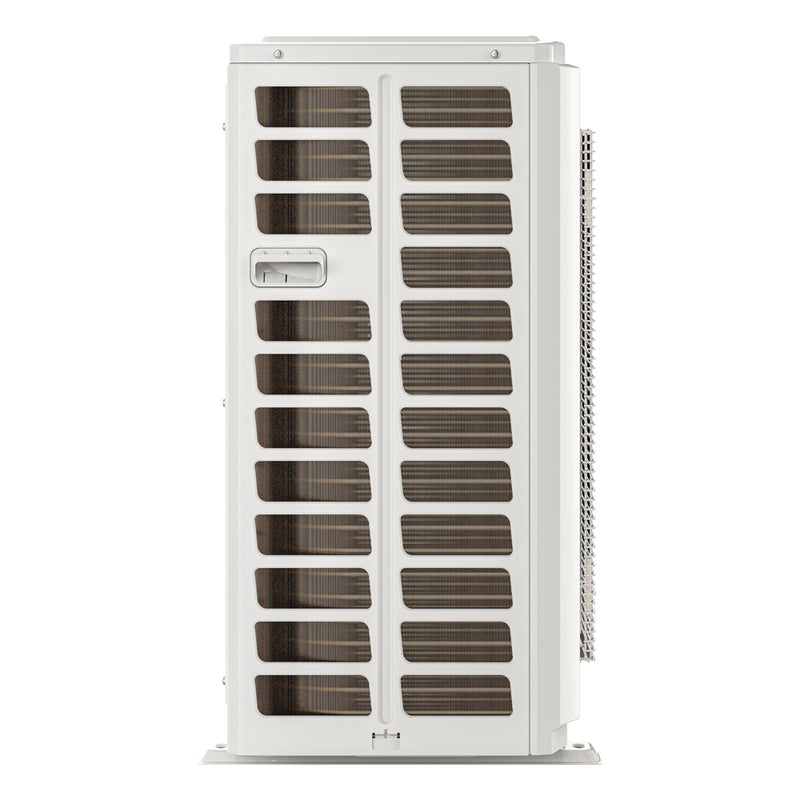

- Compact, Side Discharge Condenser Design
- Slide-Out Blower with Self-Diagnostics Panel
- Optional Heat Kit available (sold separately)
- R-410A environmentally friendly refrigerant
- Follow Me™ Function
- Easy-Access Removable Filter
- Timer mode, auto cool mode, fan only mode, and more
- 10-Year Warranty — parts, labor, and compressor (no registration required)
- AHRI Certified
Technical Specifications
| SKU / Model | CENTRAL-24-HP-230A00 |
| Series | Hyper Heat Central Ducted — Complete System |
| Includes | Outdoor Condenser + Indoor Multi-Position Air Handler |
| Cooling Capacity | 24,000 BTU (2 Ton) |
| Heating Capacity | 24,000 BTU |
| SEER2 | Up to 17.4 |
| HSPF2-4 | Up to 10.0 |
| Operating Range | -22°F to 122°F |
| Voltage | 208/230V, 1-Phase, 60Hz |
| Condenser Max Fuse / Breaker | 35A |
| Condenser Min Circuit Ampacity | 20.5A |
| Air Handler Max Fuse / Breaker | 15A |
| Air Handler Min Circuit Ampacity | 4A |
| Refrigerant | R-410A |
| Condenser Net Weight | 136.69 lbs. |
| Air Handler Net Weight | 105.60 lbs. |
| GTIN / Barcode | 840255553162 |
| Warranty | 10-Year Parts, Labor & Compressor (no registration required) |
