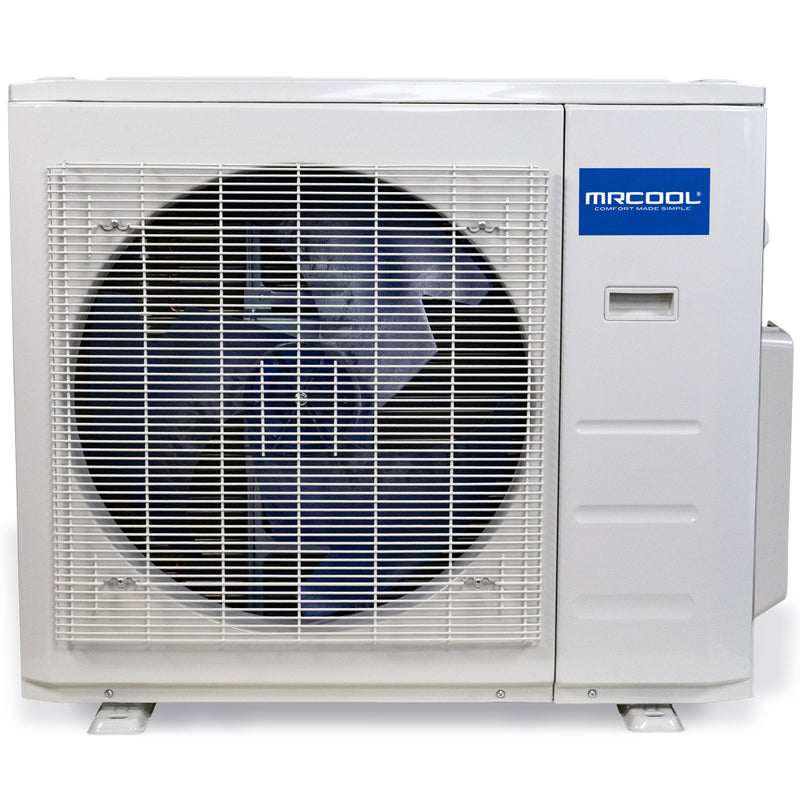

MRCOOL Olympus 36,000 BTU 3-Ton 4-Zone 23.9 SEER2 R-410A Multi-Zone Heat Pump Condenser 208/230V MULTI4-36HP230B
by MRCOOL
Original price
$3,528.00
-
Original price
$3,528.00
Original price
$3,528.00
$3,528.00
-
$3,528.00
Current price
$3,528.00
Questions? Call Us Today
Call Us on (888)-897-6153
If you’re looking for affordability and efficiency, you’ll find just that with the MRCOOL® Olympus 36k Ductless Mini-Split Condenser. This Energy-Star certified condenser features a 23 SEER and 11.3 HSPF. Simply match this unit with an Olympus ceiling cassette or wall-mounted air handler and experience exceptional heating and cooling performance, while remaining eco-friendly with R-410A refrigerant. Once installed by a licensed professional and registered online, you can have peace of mind thanks to the 7-year compressor warranty, 5-year parts warranty, and 1-year remote warranty.
Key Features
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Energy Star certified
Technical Specifications
| Cooling Capacity | 36000 BTU |
| Heating Capacity | 37000 BTU |
| SEER | Up To 23 |
| SEER2 | 23.9 |
| EER | Up To 11.5 |
| EER2 | 11.7 |
| HSPF2 (4-Zone) | 9.3 |
| HSPF2 (5-Zone) | 7.1 |
| Voltage | 208-230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Zone Capacity | 4 Zones |
| Max Fuse/Breaker | 40 A |
| Min Circuit Ampacity | 25 A |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 134.04 oz |
| Sound Level | 63 dBA |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 & 1/2 |
| Compressor Type | ROTARY |
| Net Weight | 169.09 lbs |
| Net Dimensions (D×H×W) | 16.14" × 31.89" × 37.24" |
| Gross Weight | 181 lbs |
| Gross Dimensions (D×H×W) | 19.69" × 34.84" × 42.91" |
| GTIN / UPC | 00840255522014 |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Warranty (Registered) | 5-year Parts / 7-year Compressor / 1-year Remote |
Product Documentation
- Olympus 36,000 BTU Ductless Mini-Split Condenser - 230V/60Hz Brochure (PDF)
- Olympus 36,000 BTU Ductless Mini-Split Condenser - 230V/60Hz Installation Manual (PDF)
- Olympus 36,000 BTU Ductless Mini-Split Condenser - 230V/60Hz Performance Specifications (PDF)
- Olympus 36,000 BTU Ductless Mini-Split Condenser - 230V/60Hz Owner's Manual (PDF)
- Olympus 36,000 BTU Ductless Mini-Split Condenser - 230V/60Hz Remote Control Manual (PDF)
- Olympus 36,000 BTU Ductless Mini-Split Condenser - 230V/60Hz Warranty Document (PDF)
