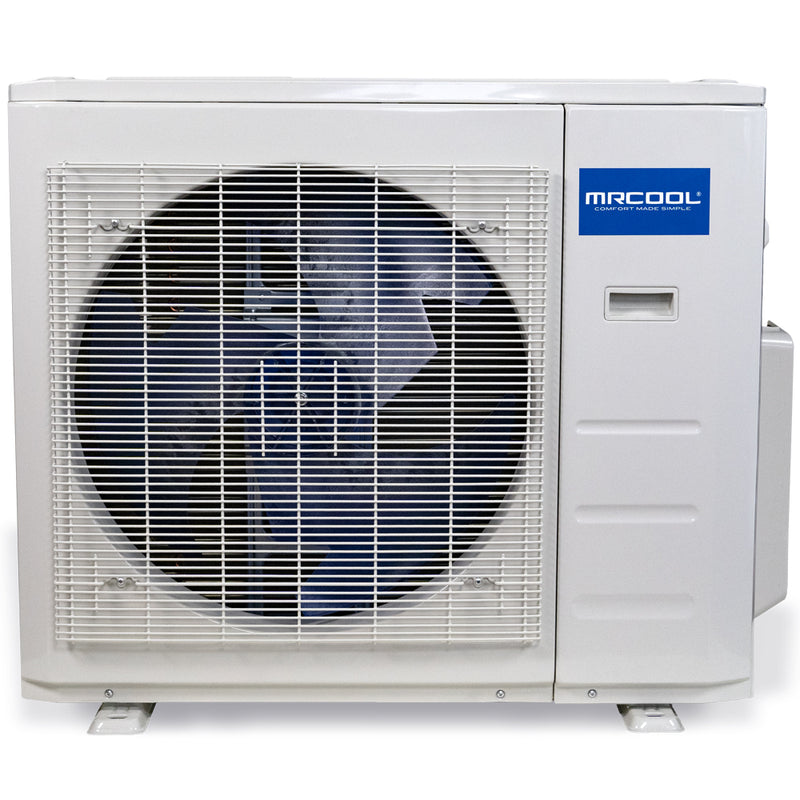

MRCOOL Olympus 27,000 BTU 2.5-Ton 3-Zone 24.6 SEER2 R-410A Multi-Zone Heat Pump Condenser 208/230V MULTI3-27HP230B
Questions? Call Us Today
Call Us on (888)-897-6153
If you’re looking for efficiency and affordability, look no further than the MRCOOL® Olympus 27k Ductless Mini-Split Condenser. Pair it with an Olympus ceiling cassette or wall-mounted air handler, and you’ll experience superior performance without sacrificing efficiency. With a 23.8 SEER and 10.5 HSPF, you can count on this Energy Star certified condenser to help save money on your utility costs. This unit was designed to be installed by an HVAC professional, and once installed and registered online, you can count on a 7-year compressor warranty, 5-year parts warranty, and 1-year remote warranty. The multi-zone technology gives you control and flexibility.
Key Features
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Energy Star certified
Technical Specifications
| Cooling Capacity | 28000 BTU |
| Heating Capacity | 28000 BTU |
| SEER | Up To 23.8 |
| SEER2 | 24.6 |
| EER | Up To 12.5 |
| EER2 | 12.7 |
| HSPF2 (4-Zone) | 9.3 |
| HSPF2 (5-Zone) | 7.1 |
| Voltage | 208-230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Zone Capacity | 3 Zones |
| Max Fuse/Breaker | 30 A |
| Min Circuit Ampacity | 24.5 A |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 91.7 oz |
| Sound Level | 61 dBA |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 |
| Compressor Type | Twin-ROTARY |
| Net Weight | 139.77 lbs |
| Net Dimensions (D×H×W) | 16.14" × 31.89" × 37.24" |
| Gross Weight | 151 lbs |
| Gross Dimensions (D×H×W) | 19.69" × 34.84" × 42.91" |
| GTIN / UPC | 00840255522007 |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Warranty (Registered) | 5-year Parts / 7-year Compressor / 1-year Remote |
Product Documentation
- Olympus 27,000 BTU Ductless Mini-Split Condenser - 230V/60Hz Brochure (PDF)
- Olympus 27,000 BTU Ductless Mini-Split Condenser - 230V/60Hz Installation Manual (PDF)
- Olympus 27,000 BTU Ductless Mini-Split Condenser - 230V/60Hz Performance Specifications (PDF)
- Olympus 27,000 BTU Ductless Mini-Split Condenser - 230V/60Hz Owner's Manual (PDF)
- Olympus 27,000 BTU Ductless Mini-Split Condenser - 230V/60Hz Remote Control Manual (PDF)
- Olympus 27,000 BTU Ductless Mini-Split Condenser - 230V/60Hz Warranty Document (PDF)
