MRCOOL TruInverter 3 Ton 36K BTU 19 SEER2 R-454B Complete System Air Handler + Condenser + Thermostat 230V MCSHV9M3621BA
Questions? Call Us Today
Call Us on (888)-897-6153

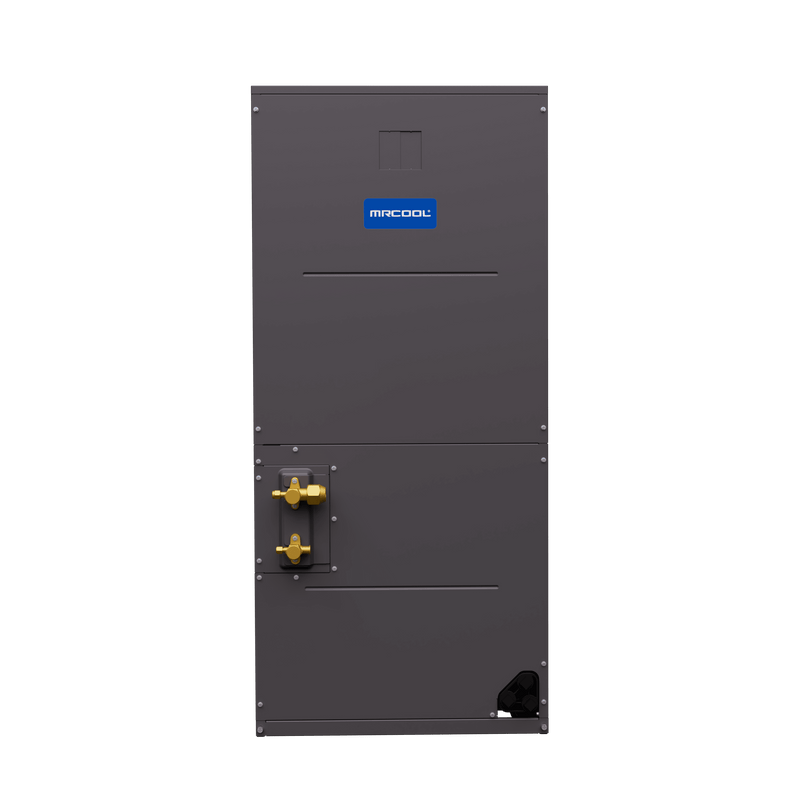

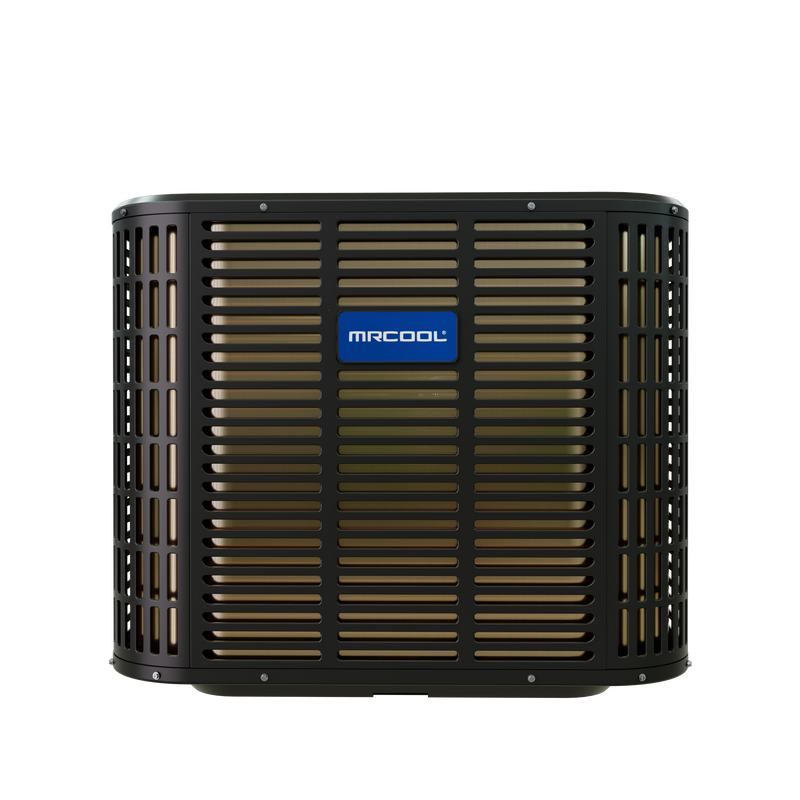

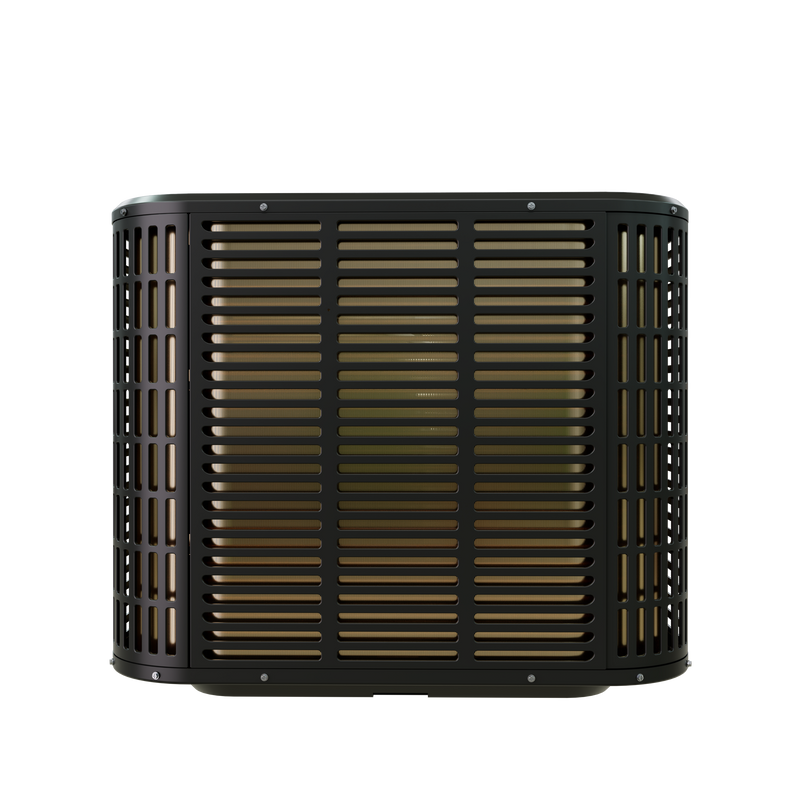

The MRCOOL® Signature Series TruInverter® 3 Ton 36K BTU R-454B Complete System bundles together the MCAESHV9T3621BA heat pump condenser, MCAEAMPVT36D21BA multi-position air handler, and XK-120D2 wired thermostat into a single, ready-to-install central split system package. Designed for contractor installation, this complete system delivers up to 19 SEER2 cooling efficiency and is built around the environmentally responsible R-454B refrigerant.

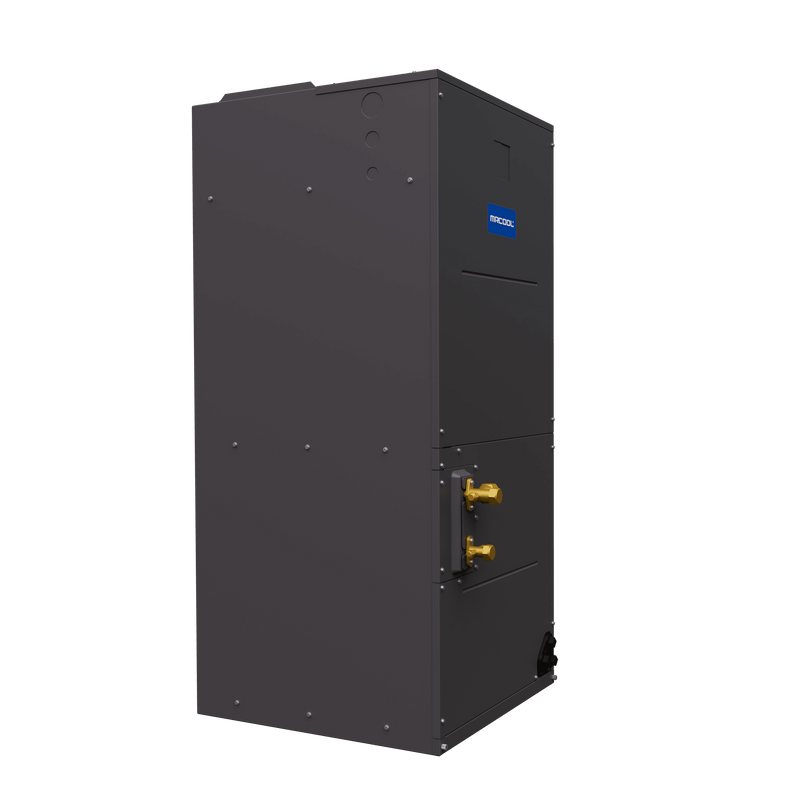

The TruInverter® inverter-driven compressor continuously modulates capacity to maintain precise temperature control, reducing energy consumption and wear compared to single-stage systems. The included multi-position air handler is compatible with electric heat kits and supports upflow, downflow, and horizontal installation orientations.

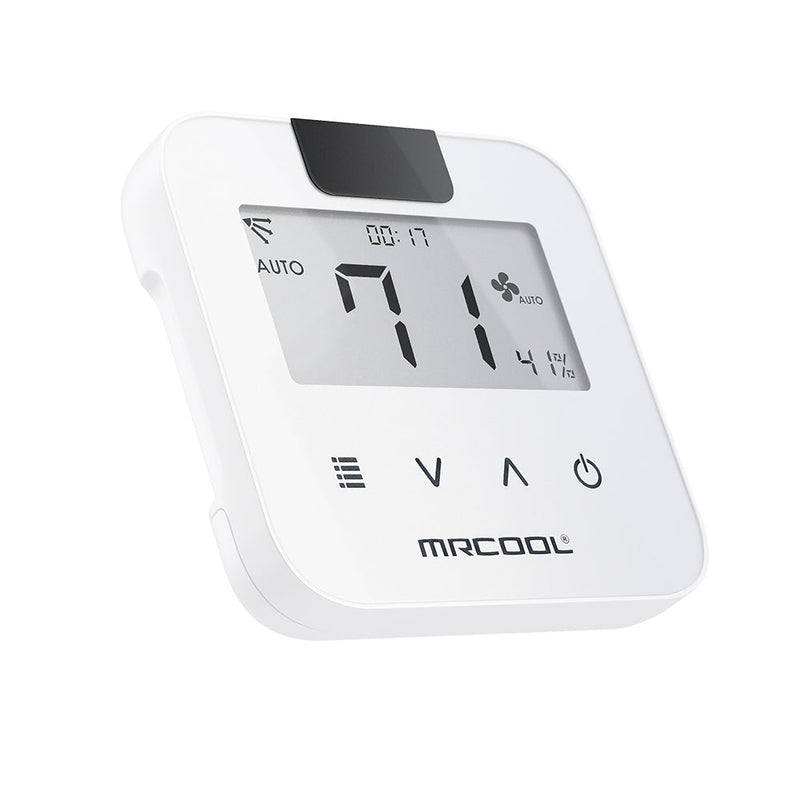

The XK-120D2 wired thermostat provides direct, reliable system control. Together, these three components form a fully matched, AHRI-certified system engineered for peak performance and compatibility.
Technical Specifications
| Cooling Capacity | 36,000 BTU |
| Tonnage | 3 Ton |
| SEER2 | Up to 19 |
| Refrigerant Type | R-454B |
| Voltage | 208/230V |
| Phase | 1 |
| Hz | 60 |
| Included Components | Condenser (MCAESHV9T3621BA), Air Handler (MCAEAMPVT36D21BA), Thermostat (XK-120D2) |
| Combined Weight | 272.8 lbs |
Certifications
- AHRI Certified
- ETL Listed
Warranty
- 10 Year Parts Warranty (registered)
- 10 Year Compressor Warranty (registered)
- 1 Year Labor Warranty (registered)
