MRCOOL TruInverter 2 Ton 24K BTU 18 SEER2 R-454B Complete System Air Handler + Condenser + Thermostat 230V MCSHV8M2421BA
Questions? Call Us Today
Call Us on (888)-897-6153
The MRCOOL® Signature Series TruInverter™ 2 Ton 24K BTU R-454B Complete System is a fully matched, contractor-installed central split system that includes everything needed for a complete installation:
- MRCOOL TruInverter 2 Ton 24K BTU Heat Pump Condenser (MCAESHV8T2421BA)
- MRCOOL TruInverter 2 Ton 24K BTU Multi-Position Air Handler (MCAEAMPVT24D21BA)

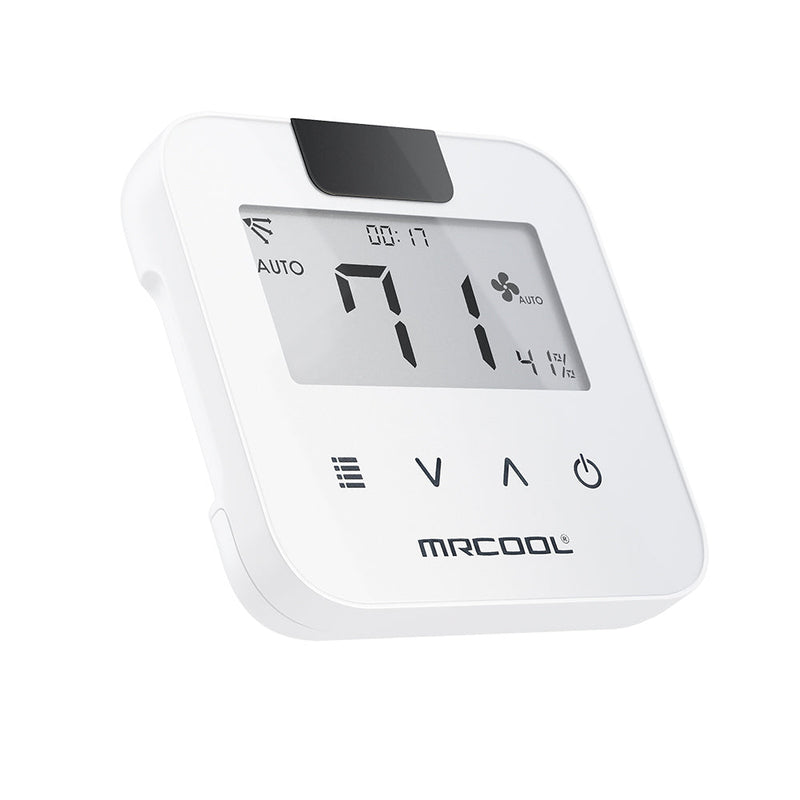

- MRCOOL TruInverter Wired Thermostat (XK-120D2)

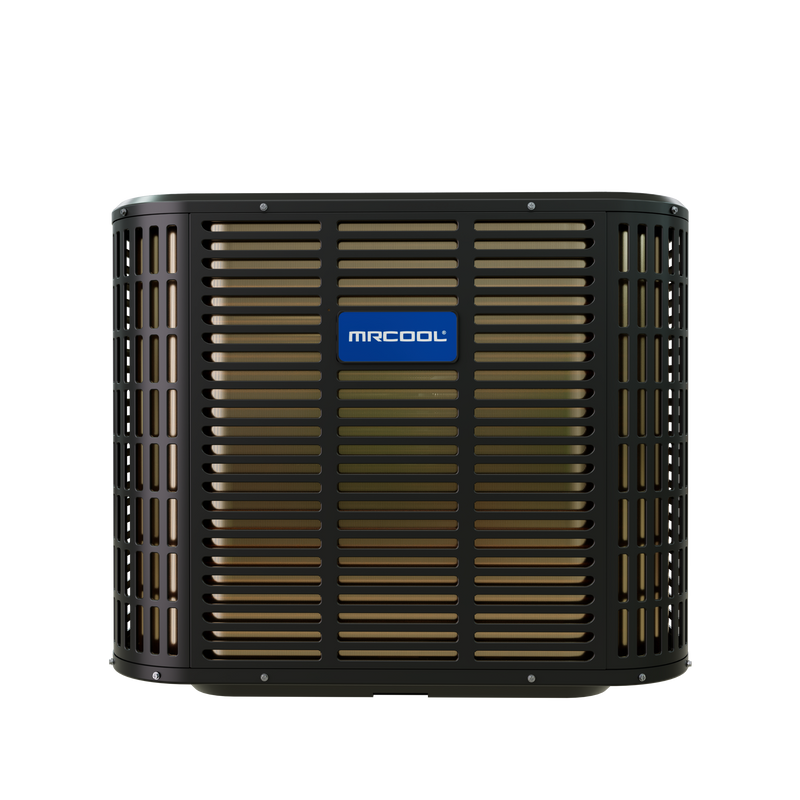

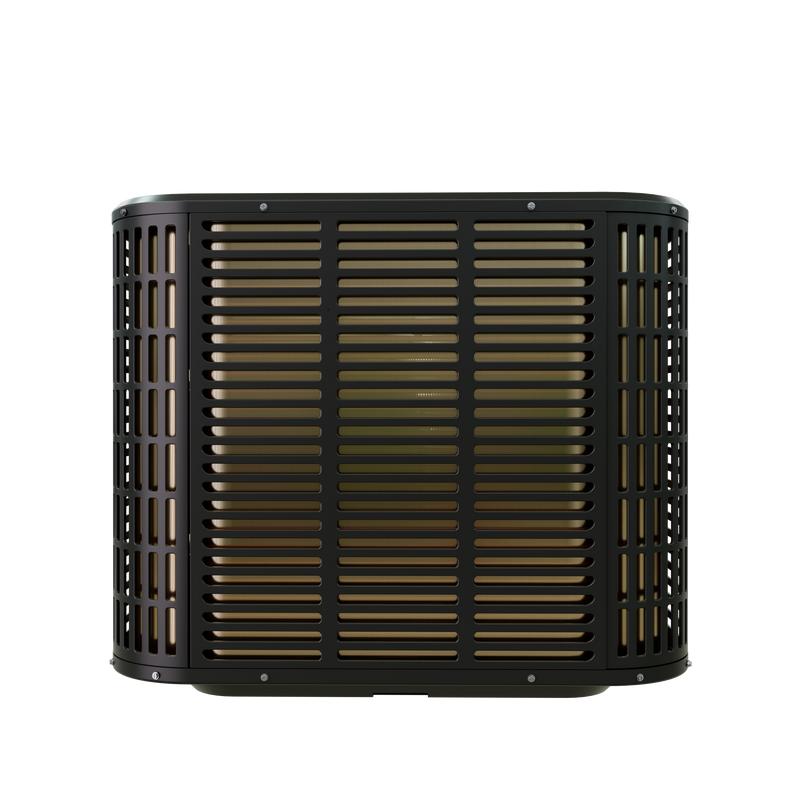

Condenser
The MRCOOL® Signature Series TruInverter™ 24K Heat Pump Condenser delivers reliable, energy-efficient comfort all year long, making it an excellent choice for homeowners who want strong performance without high utility bills. With efficiency ratings of 18 SEER2 and 9 HSPF2, it provides consistent heating and cooling while keeping energy use in check—whether you're upgrading an old system or installing new. This unit comes factory-charged with R-454B refrigerant, a next-generation, environmentally responsible option that offers excellent heat-transfer performance while significantly reducing global warming potential. Factory charging also speeds up installation and minimizes labor and handling errors.
Further simplifying the setup, this system is designed to work seamlessly with MRCOOL® No-Vac® Quick Connect® line sets, which are pre-charged and eliminate the need for vacuuming or evacuation. This specialized compatibility significantly reduces installation time and removes the need for expensive specialized tools, making the process faster and more reliable. At the core of the system is TruInverter™ variable-speed technology, which continuously adjusts compressor output to match real-time demand. This delivers more stable indoor temperatures, improved efficiency, quieter operation, and reduced wear on system components for a longer service life.
Designed for quiet operation, the TruInverter™ 24K runs at just 67 decibels, comparable to a dishwasher, with a sound-dampening top that further reduces noise. Durable construction includes a steel louver coil guard and wire fan discharge grille to protect against debris and weather, along with a service-friendly layout for easier maintenance. For added peace of mind, it's backed by a 10-year parts warranty and a limited lifetime compressor warranty. With high efficiency, quiet performance, and rugged reliability, the MRCOOL® TruInverter™ 24K is a smart, long-term investment in home comfort.

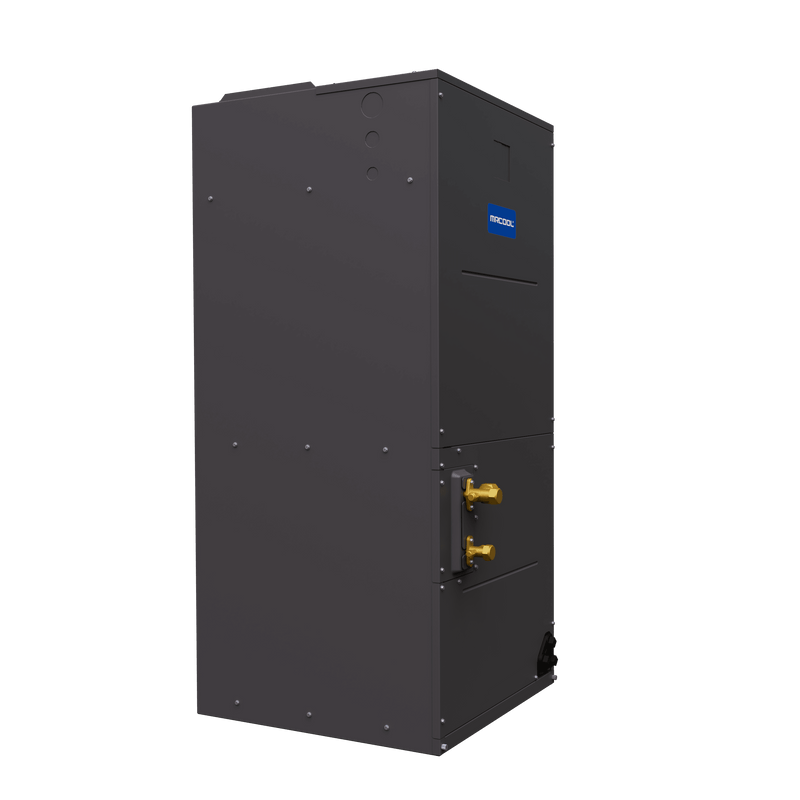

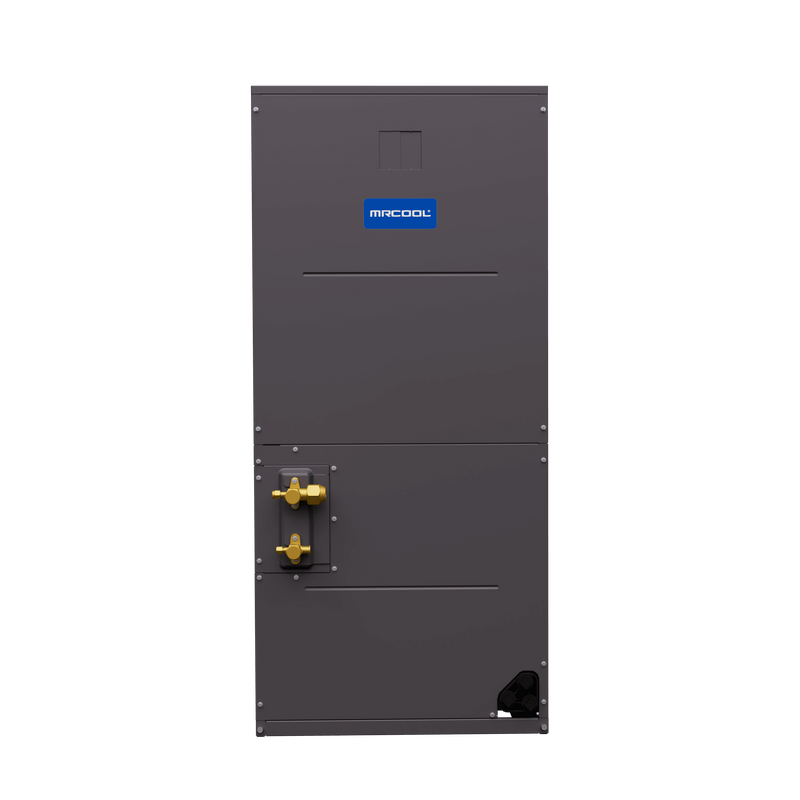

Air Handler
The MRCOOL® Signature Series TruInverter™ 24K BTU 230V Multi-Position Air Handler is engineered to deliver dependable, high-efficiency comfort for homes and light-duty applications. Built with advanced TruInverter™ variable-speed technology and next-generation R-454B refrigerant, this system provides smooth, precise temperature control while using significantly less energy than conventional fixed-speed systems. The result is quieter operation, improved humidity control, and lower monthly energy costs.
Designed with maximum flexibility in mind, this air handler supports upflow, downflow, and horizontal installation, making it easy to fit into attics, crawl spaces, closets, or mechanical rooms. Its compact, modern cabinet allows it to install where bulkier systems won't, without sacrificing airflow or performance. When paired with a compatible TruInverterâ„¢ heat pump condenser, the system delivers reliable heating and cooling across all seasons.
Installation is simplified through compatibility with MRCOOL® No-Vac® Quick Connect® line sets, which come factory-charged with R-454B refrigerant. This eliminates the need for vacuum pumps, refrigerant handling, or specialized HVAC tools, reducing labor time and installation risk while ensuring a clean, accurate setup.
For everyday control, the air handler works with most third-party smart thermostats, allowing homeowners to choose their preferred app-based, voice-activated, or automated control system. Optional TruInverterâ„¢ electric heat kits provide added heating support for cold climates or emergency backup.
Backed by a limited lifetime compressor warranty and a 10-year parts warranty, the MRCOOL® TruInverter™ 24K offers long-term reliability, flexible installation, and energy-saving performance.
Technical Specifications
| Condenser SKU | MCAESHV8T2421BA |
| Air Handler SKU | MCAEAMPVT24D21BA |
| Thermostat SKU | XK-120D2 |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| Tonnage | 2 Ton |
| SEER2 | 18 |
| EER2 | 10 |
| HSPF2-4 | 9 |
| COP @ 47°F | 3.2 |
| CFM | 850 |
| Voltage | 208/230V |
| Phase | 1 |
| Hz | 60 |
| Condenser Max Fuse/Breaker | 25A |
| Condenser MCA | 16A |
| Air Handler Max Fuse/Breaker | 15A |
| Air Handler MCA | 5A |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Condenser) | 75.84 oz |
| Refrigerant Volume (Air Handler) | 3.52 oz |
| Sound Level (Condenser) | 67 dBA |
| Sound Level (Air Handler) | 57 dBA |
| Min Ambient Cooling | 5°F |
| Min Ambient Heating | -5°F |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 3/4 in |
| Max Lineset Length | 100 ft |
| Air Handler Mount Type | Multi-Position (Upflow/Downflow/Horizontal) |
| Blower Motor | DC, 1/2 HP, 5-Speed |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes (5kW, 10kW) |
| Metering Device | TXV (Air Handler) / EEV (Condenser) |
| Inverter | Yes (Variable-Speed TruInverterâ„¢) |
| Combined Net Weight | 263.8 lbs |
| Condenser Dimensions (D x H x W) | 29.125 x 24.94 x 29.125 in |
| Air Handler Dimensions (D x H x W) | 21 x 46.5 x 21 in |
Certifications
- AHRI Certified
Warranty
- 10 Year Parts Warranty
- Lifetime Compressor Warranty
Product Documentation
- MRCOOL TruInverter 2 Ton Complete System AHRI Certification (PDF)
- MRCOOL TruInverter 2 Ton Complete System Energy Guide (PDF)
- MRCOOL TruInverter Condenser Installation Manual (PDF)
- MRCOOL TruInverter Air Handler Installation Manual (PDF)
- MRCOOL TruInverter Complete System Warranty Document (PDF)
- MRCOOL TruInverter Complete System Brochure (PDF)
