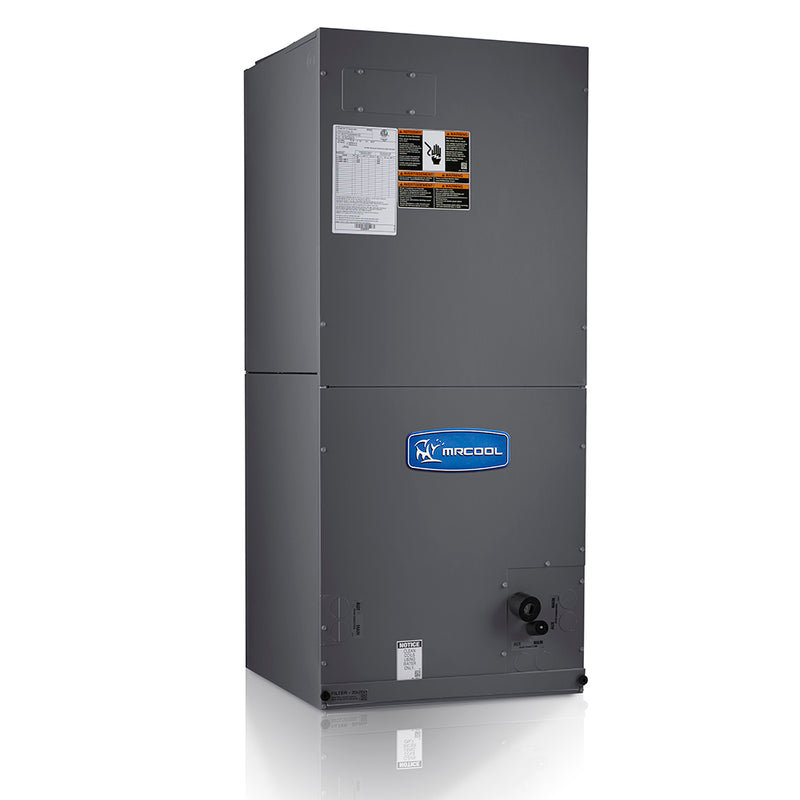

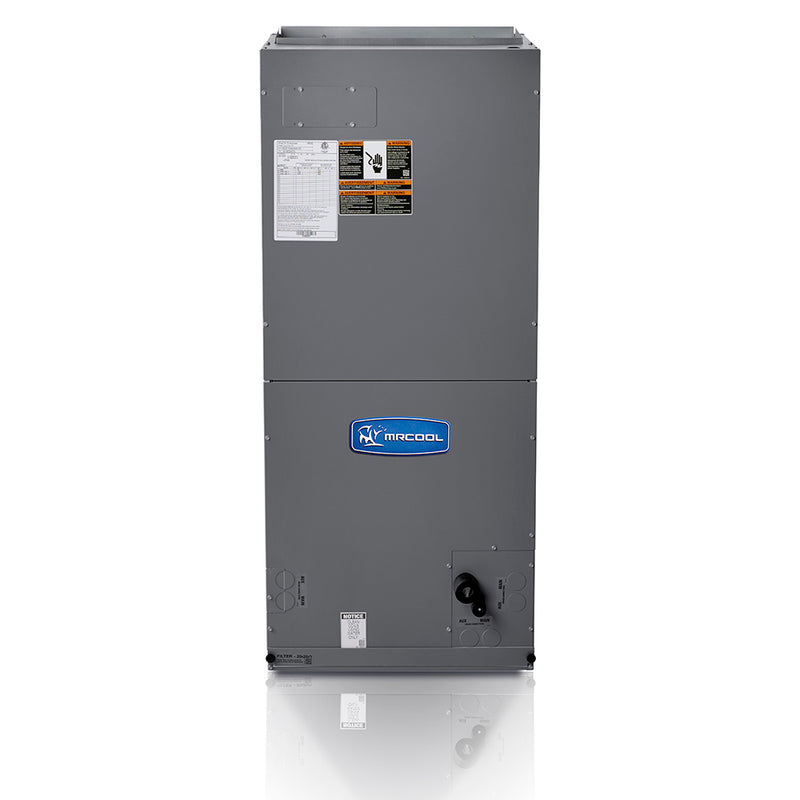

MRCOOL Signature 2 Ton 24K BTU R-410A ECM Multi-Position Air Handler 208/230V MAHM024ETA
by MRCOOL
Original price
$1,455.60
-
Original price
$1,455.60
Original price
$1,455.60
$1,455.60
-
$1,455.60
Current price
$1,455.60
Questions? Call Us Today
Call Us on (888)-897-6153
The MRCOOL® Multi-Position Air Handler is designed to deliver dependable comfort, and is built for reliability. The electronically commutated motor (ECM) delivers consistent airflow throughout the seasons, allowing you to remain relaxed at all times. When choosing a MRCOOL Multi-Position Air Handler, you can always know that you are being energy and time efficient.
Key Features
- ECM (Electronically Commutated Motor) for superior efficiency and quiet operation
- Smaller profile for closet applications
- Optional auxiliary heat kits available
- Baked polyester paint finished over galvanized steel for maximum durability
- Antimicrobial treated drain pan to resist mold and mildew growth
- Factory tested for leakproof construction
- Foil faced insulation for enhanced indoor air quality
- CoolGuard total corrosion protection technology designed coil
- Built-in indoor time delay for increased efficiency and comfort
- One piece design
- High-strength / heat resistant / corrosion resistance SMC drain pans
- Multi-position: Upflow / Horizontal Left / Horizontal Right / Counter Flow (with kit)
- AHRI Certified | ETL Listed
Technical Specifications
| SKU / Model | MAHM024ETA |
| Series | Signature Split Air Handler |
| Unit Type | Multi-Position Air Handler (Indoor Unit) |
| Cooling Capacity | 24,000 BTU (2 Ton) |
| SEER | Up to 16 |
| Motor Type | ECM (Electronically Commutated Motor) |
| Coverage Area | Up to 1,000 sq. ft. |
| Voltage | 208/230V, 1-Phase, 60Hz |
| Max Fuse / Breaker | 15A |
| Min Circuit Ampacity | 5.1A |
| Refrigerant | R-410A |
| Net Weight | 127 lbs. |
| Net Dimensions (H x W x D) | 45.50 in. x 18.50 in. x 16.50 in. |
| Positions | Upflow / Horizontal Left / Horizontal Right / Counter Flow (with kit) |
| Warranty | 5-Year Parts (unregistered) / 10-Year Parts (registered) |
