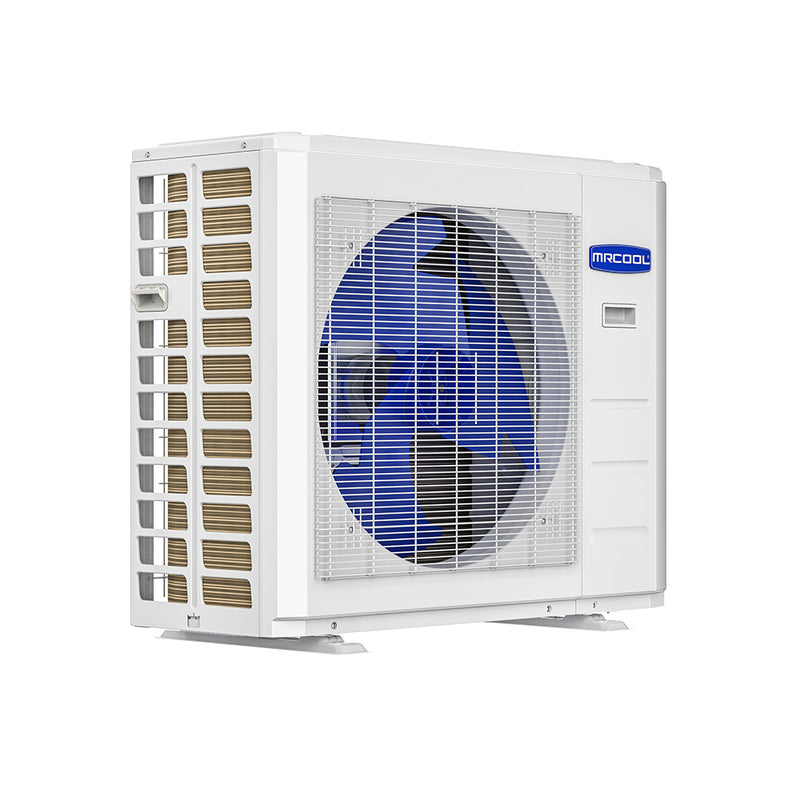

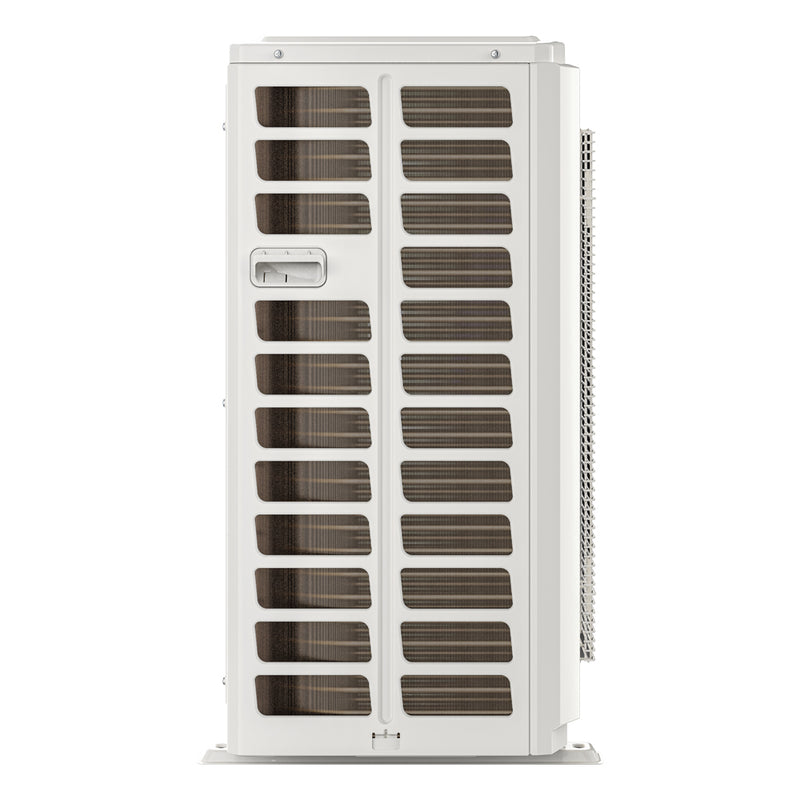

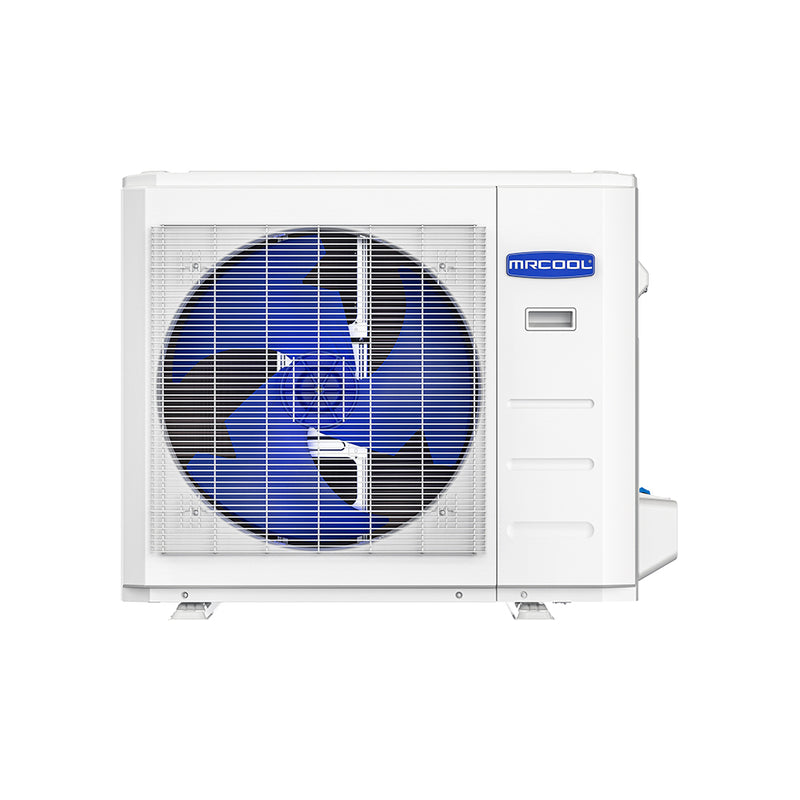

MRCOOL Hyper Heat 2nd Gen 48,000 BTU 4-Ton 16.5 SEER2 R-454B Central Ducted Heat Pump Condenser 208/230V CENTRAL-48-HP-C-230B00-O
by MRCOOL
Original price
$2,927.00
-
Original price
$2,927.00
Original price
$2,927.00
$2,927.00
-
$2,927.00
Current price
$2,927.00
Questions? Call Us Today
Call Us on (888)-897-6153
The 48K MRCOOL® Hyper Heat Central Ducted Condenser is crafted to provide outstanding performance in even the most extreme weather conditions. With R-454B refrigerant and a full 10-year warranty on parts, compressor, and labor, this unit is built for long-term reliability in demanding ducted HVAC applications.
Key Features
- R-454B refrigerant for lower environmental impact
- Hyper Heat technology for reliable heating in extreme cold
- Wi-Fi and app compatible for smart control
- Energy Star certified
- AHRI certified
- ETL certified
- 10-year parts, compressor, and labor warranty
Technical Specifications
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 50,000 BTU |
| SEER2 | 16.5 |
| EER2 | 10.5 |
| HSPF (4-Zone) | 9.5 |
| Tonnage | 4 Ton |
| Voltage | 208-230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 40 A |
| Min Circuit Ampacity | 38 A |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 134.04 oz |
| Sound Level | 65 dBA |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Net Weight | 201.06 lbs |
| Net Dimensions (D×H×W) | 16.34" × 38.39" × 38.58" |
| Gross Weight | 232.36 lbs |
| Gross Dimensions (D×H×W) | 19.68" × 42.52" × 45.08" |
| GTIN / UPC | 00840255586535 |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Warranty | 10 Years Parts / 10 Years Compressor / 10 Years Labor |
Product Documentation
- MRCOOL Hyper Heat 2nd Gen 48,000 BTU Central Ducted Condenser Brochure (PDF)
- MRCOOL Hyper Heat 2nd Gen 48,000 BTU Central Ducted Condenser Installation Manual (PDF)
- MRCOOL Hyper Heat 2nd Gen 48,000 BTU Central Ducted Condenser Performance Specifications (PDF)
- MRCOOL Hyper Heat 2nd Gen 48,000 BTU Central Ducted Condenser Service Manual (PDF)
- MRCOOL Hyper Heat 2nd Gen 48,000 BTU Central Ducted Condenser Warranty Document (PDF)
