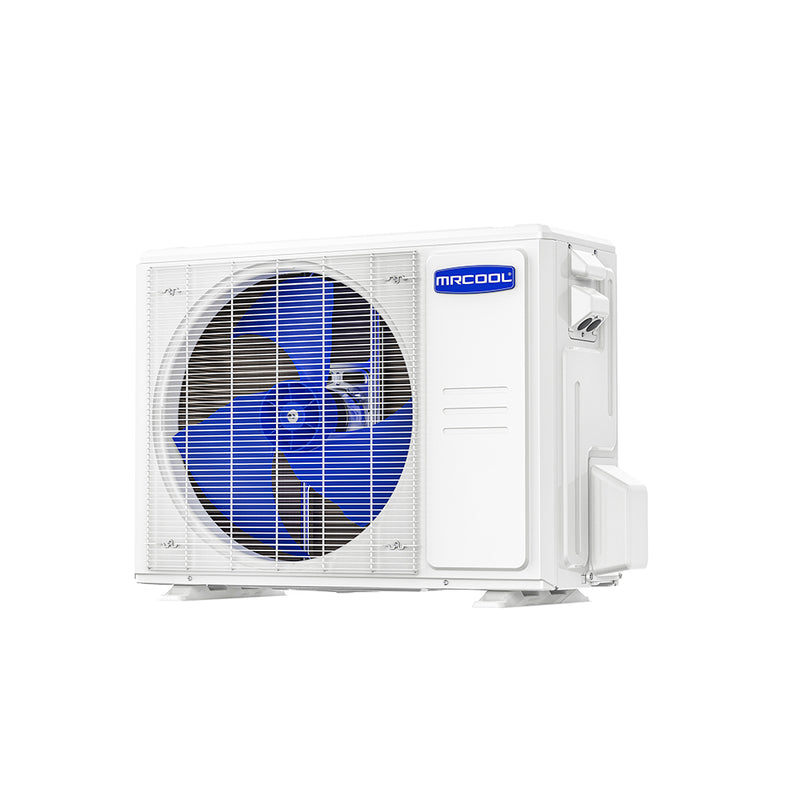

MRCOOL Hyper Heat 2nd Gen 24,000 BTU 2-Ton 18.3 SEER2 R-454B Central Ducted Heat Pump Condenser 208/230V CENTRAL-24-HP-C-230B00-O
by MRCOOL
Original price
$2,040.00
-
Original price
$2,040.00
Original price
$2,040.00
$2,040.00
-
$2,040.00
Current price
$2,040.00
Questions? Call Us Today
Call Us on (888)-897-6153
Maintain year-round comfort in your home with the 24K MRCOOL® Hyper Heat Central Ducted Condenser, a reliable system designed to perform efficiently across a wide range of temperatures. Utilizing R-454B refrigerant, this unit provides environmentally responsible heating and cooling with a 10-year warranty on parts, compressor, and labor.
Key Features
- R-454B refrigerant for lower environmental impact
- Hyper Heat technology for reliable heating in extreme cold
- Wi-Fi and app compatible for smart control
- Energy Star certified
- AHRI certified
- ETL certified
- 10-year parts, compressor, and labor warranty
Technical Specifications
| Cooling Capacity | 23,000 BTU |
| Heating Capacity | 24,000 BTU |
| SEER2 | 18.3 |
| EER2 | 11.7 |
| HSPF (4-Zone) | 10.0 |
| Tonnage | 2 Ton |
| Voltage | 208-230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 20 A |
| Min Circuit Ampacity | 19 A |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 74.08 oz |
| Sound Level | 60 dBA |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Net Weight | 102.29 lbs |
| Net Dimensions (D×H×W) | 13.46" × 26.5" × 35.04" |
| Gross Weight | 109.13 lbs |
| Gross Dimensions (D×H×W) | 15.67" × 29.13" × 39.17" |
| GTIN / UPC | 00840255586504 |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Warranty | 10 Years Parts / 10 Years Compressor / 10 Years Labor |
Product Documentation
- MRCOOL Hyper Heat 2nd Gen 24,000 BTU Central Ducted Condenser Brochure (PDF)
- MRCOOL Hyper Heat 2nd Gen 24,000 BTU Central Ducted Condenser Installation Manual (PDF)
- MRCOOL Hyper Heat 2nd Gen 24,000 BTU Central Ducted Condenser Performance Specifications (PDF)
- MRCOOL Hyper Heat 2nd Gen 24,000 BTU Central Ducted Condenser Service Manual (PDF)
- MRCOOL Hyper Heat 2nd Gen 24,000 BTU Central Ducted Condenser Warranty Document (PDF)
