MRCOOL Hyper Heat 24,000 BTU R-410A Central Ducted Multi-Position Air Handler 208/230V CENTRAL-24-HP-MUAH230A00
Questions? Call Us Today
Call Us on (888)-897-6153

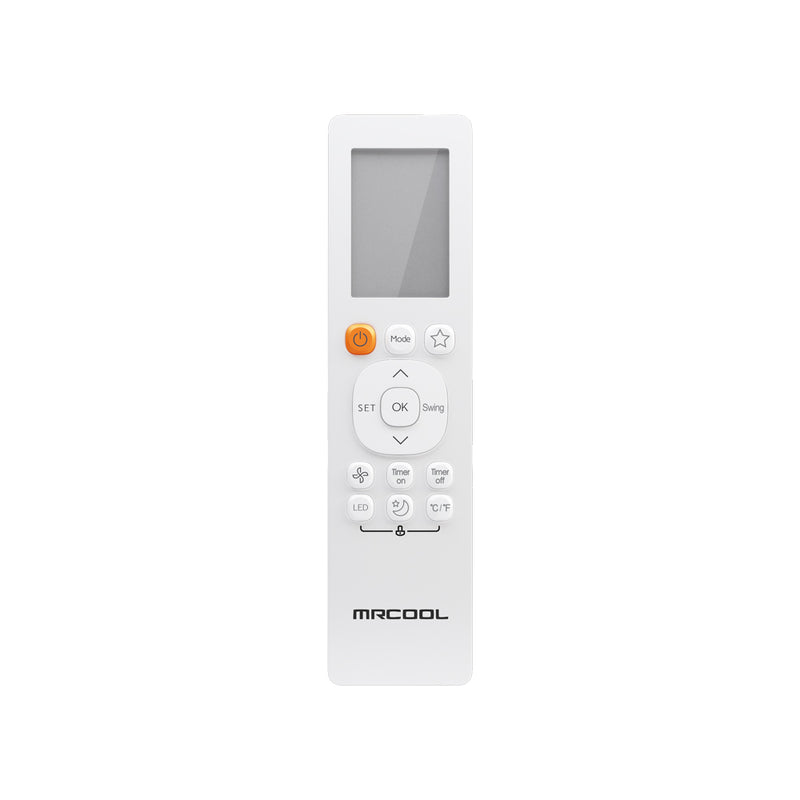

The 24K MRCOOL® Hyper Heat Central Ducted Air Handler is an affordable and efficient choice for your home's heating and cooling requirements, regardless of external weather conditions. With an impressive SEER2 rating of up to 17.4 and an HSPF2-4 rating of up to 10, its enhanced heating capacity ensures optimal performance. Constructed from painted galvanized steel, the unit's side-discharge design, slide-out blower, self-diagnostics panel, and removable filters make maintenance simple and easy. Effortless installation is possible by an HVAC technician, as the unit is compatible with the optional MRCOOL® No-Vac® Quick Connect® Line Set. Pre-charged with environmentally friendly R410-A refrigerant, this line set removes the need for vacuuming or flare welding and is kink-resistant. It also provides versatile installation possibilities due to its adaptability to various configurations. If required, an optional heat kit can be acquired separately. The unit also includes a wired thermostat and wireless remote. In the unlikely event of any operational concerns, the air handler is backed by a reassuring 10-year warranty for parts and labor, offering you peace of mind. Furthermore, registration is not required for the included labor warranty.
Key Features
- Enhanced Heating Capacity — operates from -22°F to 122°F
- Compatible with MRCOOL® No-Vac® Quick Connect® Line Set

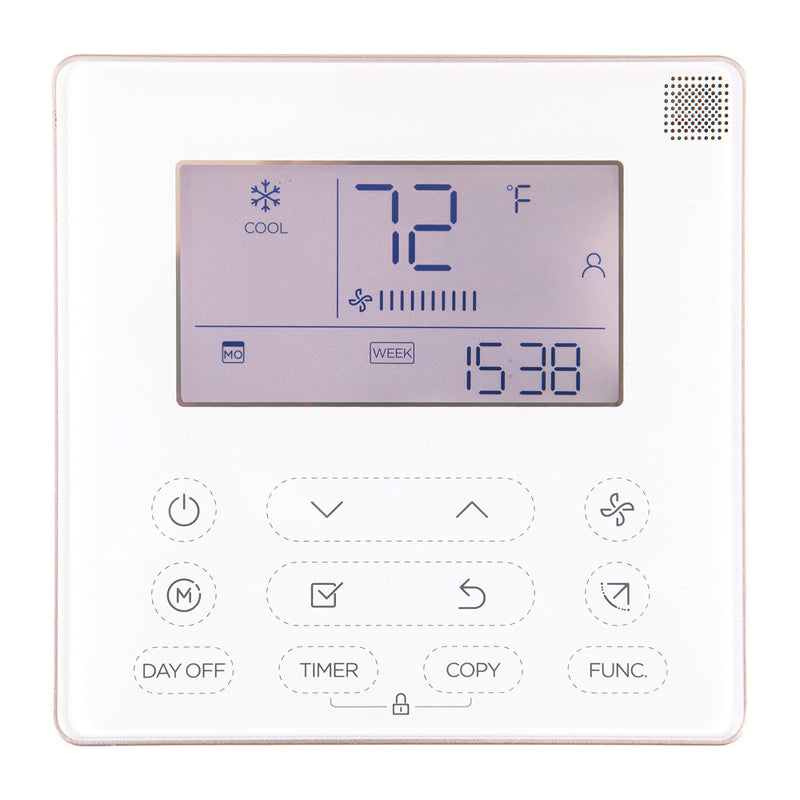

- Wired Thermostat Included (0.78 in x 4.72 in x 4.72 in)
- Multi-Position Installation
- Variable Speed Blower
- Compact, Side Discharge Design
- Slide-Out Blower for easy service access
- Self-Diagnostics Panel
- Optional Heat Kit available
- R-410A environmentally friendly refrigerant
- Follow Meâ„¢ Function
- Easy-Access Removable Filter
- Timer mode, auto cool mode, fan only mode, and more
- 10-Year Warranty — parts and labor (no registration required)
- AHRI Certified
Technical Specifications
| SKU / Model | CENTRAL-24-HP-MUAH230A00 |
| Series | Hyper Heat Central Ducted |
| Unit Type | Multi-Position Air Handler (Indoor Unit) |
| Cooling Capacity | 24,000 BTU (2 Ton) |
| Heating Capacity | 24,000 BTU |
| SEER2 | Up to 17.4 |
| HSPF2-4 | Up to 10.0 |
| Voltage | 208/230V, 1-Phase, 60Hz |
| Max Fuse / Breaker | 15A |
| Min Circuit Ampacity | 4A |
| Refrigerant | R-410A |
| Net Weight | 105.60 lbs. |
| Net Dimensions (H x W x D) | 45.00 in. x 17.52 in. x 21.02 in. |
| Gross Weight | 127 lbs. |
| GTIN / Barcode | 840255553100 |
| Warranty | 10-Year Parts & Labor (no registration required) |
