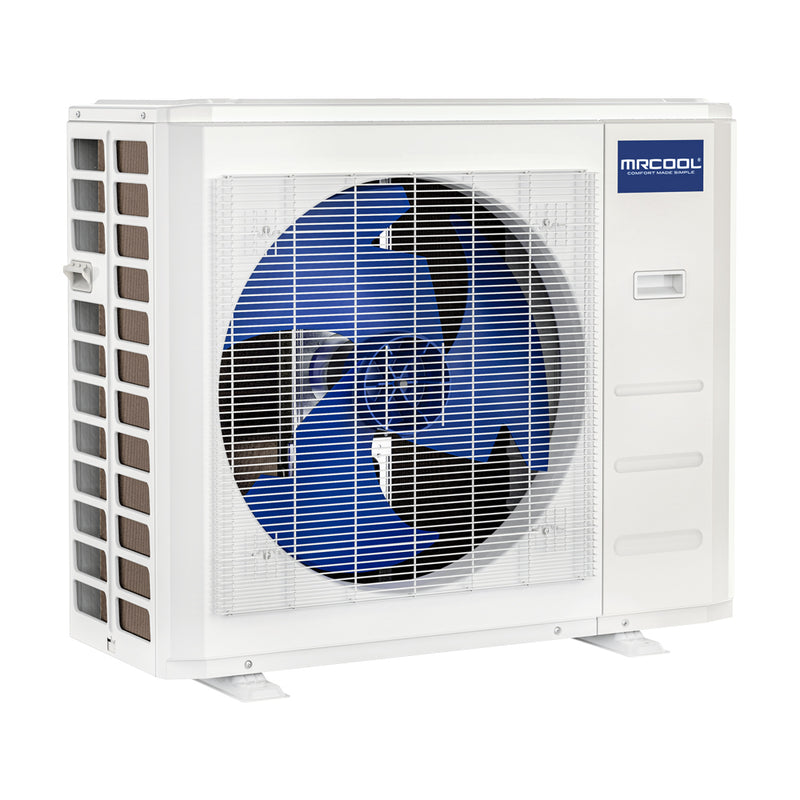

MRCOOL Central Ducted 24,000 BTU 2-Ton 19.2 SEER R-410A Heat Pump Condenser 208/230V w/ 25ft Pre-Charged Line Set CENTRAL-24-HP-C-230-25
by MRCOOL
Original price
$2,006.40
-
Original price
$2,006.40
Original price
$2,006.40
$2,006.40
-
$2,006.40
Current price
$2,006.40
Questions? Call Us Today
Call Us on (888)-897-6153
Key Features
- Includes features such as timer mode, auto cool mode, fan only mode, and more
- Wired thermostat included (.78 in x 4.72 in x 4.72in)
- Multi position installation
- Self-contained pre-charged refrigerant line set for easy installation
- R-410A refrigerant
- AHRI certified
Technical Specifications
| Cooling Capacity | 24000 BTU |
| Heating Capacity | 24000 BTU |
| SEER | 19.2 |
| Voltage | 208-230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 30 A |
| Min Circuit Ampacity | 18 A |
| Refrigerant Type | R-410A |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Compressor Type | Rotary |
| Net Weight | 125.22 lbs |
| Net Dimensions (D×H×W) | 13.78" × 28.15" × 35.04" |
| Gross Weight | 141 lbs |
| Gross Dimensions (D×H×W) | 17.72" × 31.50" × 40.55" |
| GTIN / UPC | 00840255520034 |
| AHRI Certified | Yes |
| Warranty (Base) | 10 years parts and labor |
Product Documentation
- MRCOOL 24k BTU 22 SEER Condenser - 25 foot MRCOOL Pre-Charged Line Set Brochure (PDF)
- MRCOOL 24k BTU 22 SEER Condenser - 25 foot MRCOOL Pre-Charged Line Set Installation Manual (PDF)
- MRCOOL 24k BTU 22 SEER Condenser - 25 foot MRCOOL Pre-Charged Line Set Performance Specifications (PDF)
- MRCOOL 24k BTU 22 SEER Condenser - 25 foot MRCOOL Pre-Charged Line Set Warranty Document (PDF)
