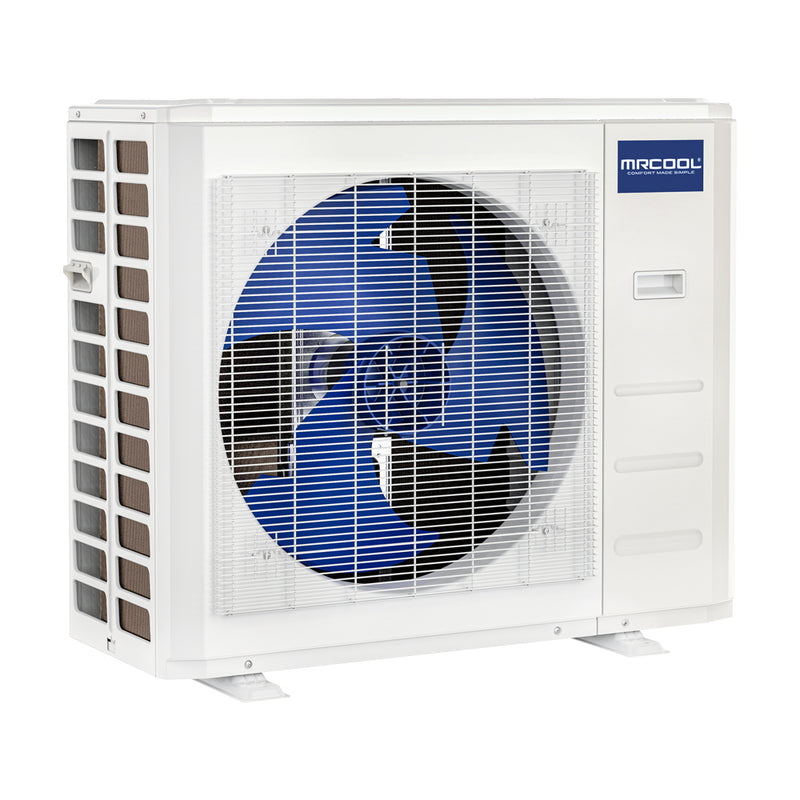

MRCOOL Central Ducted 18,000 BTU 1.5-Ton 22 SEER R-410A Heat Pump Condenser 208/230V w/ 25ft Pre-Charged Line Set CENTRAL-18-HP-C-230-25
by MRCOOL
Original price
$1,664.40
-
Original price
$1,664.40
Original price
$1,664.40
$1,664.40
-
$1,664.40
Current price
$1,664.40
Questions? Call Us Today
Call Us on (888)-897-6153
Key Features
- Includes features such as timer mode, auto cool mode, fan only mode, and more
- Wired thermostat included (.78 in x 4.72 in x 4.72in)
- Multi position installation
- Self-contained pre-charged refrigerant line set for easy installation
- R-410A refrigerant
- AHRI certified
Technical Specifications
| Cooling Capacity | 18000 BTU |
| Heating Capacity | 18000 BTU |
| SEER | 22 |
| Voltage | 208-230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse/Breaker | 30 A |
| Min Circuit Ampacity | 18 A |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 56.44 oz |
| Liquid Line Size | 1/4 |
| Suction Line Size | 1/2 |
| Compressor Type | Rotary |
| Net Weight | 94.36 lbs |
| Net Dimensions (D×H×W) | 13.46" × 26.50" × 35.04" |
| Gross Weight | 106 lbs |
| Gross Dimensions (D×H×W) | 18.11" × 29.13" × 40.55" |
| GTIN / UPC | 00840255520027 |
| AHRI Certified | Yes |
| Warranty (Base) | 10 years parts and labor |
Product Documentation
- MRCOOL 18k BTU 19.2 SEER Condenser - 25 foot MRCOOL Pre-Charged Line Set Brochure (PDF)
- MRCOOL 18k BTU 19.2 SEER Condenser - 25 foot MRCOOL Pre-Charged Line Set Installation Manual (PDF)
- MRCOOL 18k BTU 19.2 SEER Condenser - 25 foot MRCOOL Pre-Charged Line Set Performance Specifications (PDF)
- MRCOOL 18k BTU 19.2 SEER Condenser - 25 foot MRCOOL Pre-Charged Line Set Warranty Document (PDF)
