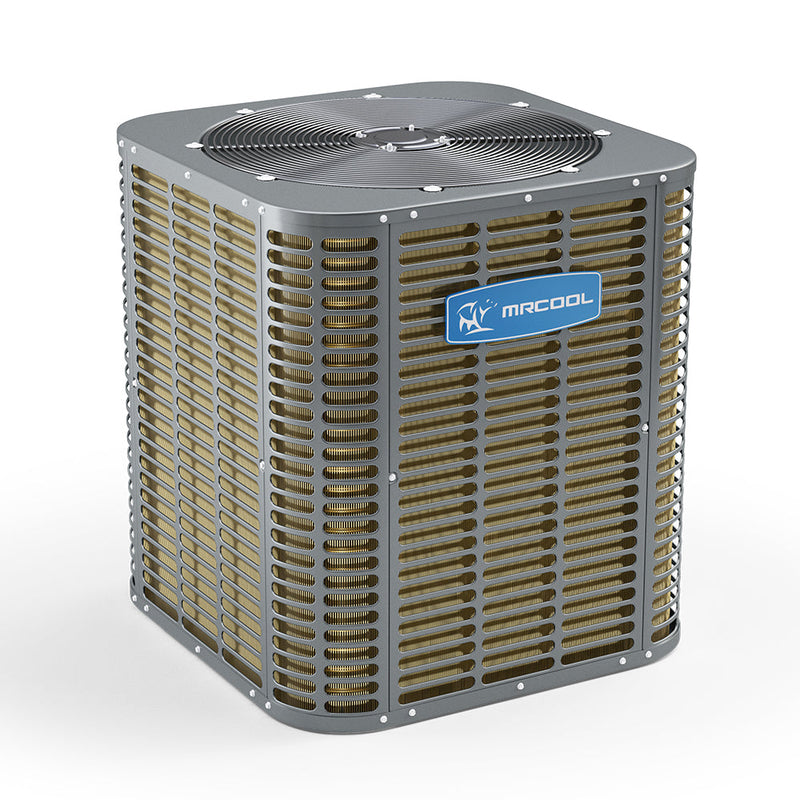

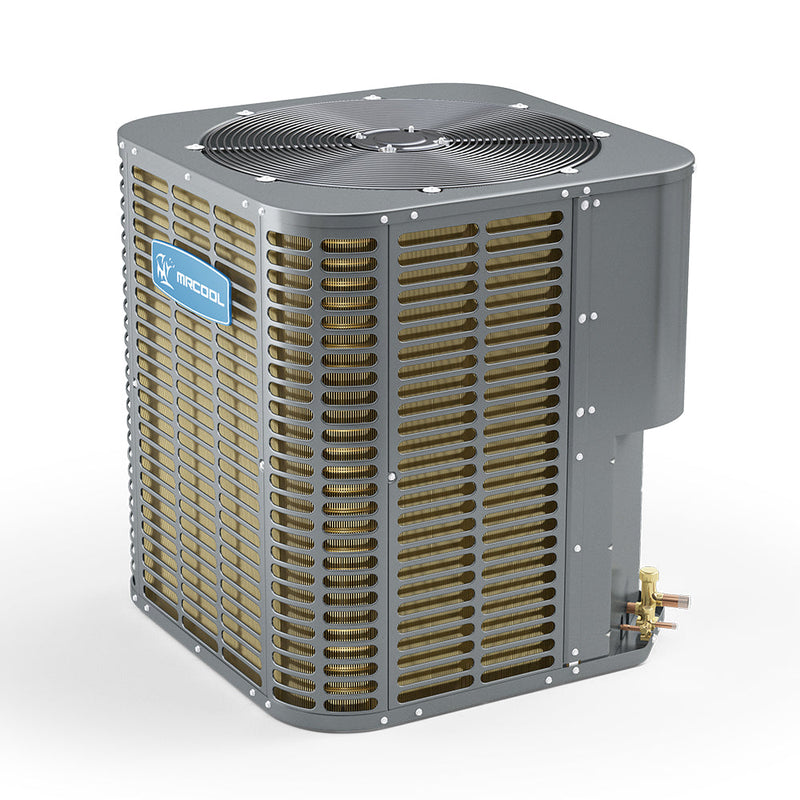

MRCOOL ProDirect 3 Ton 36K BTU 15.2 SEER2 R-410A Split System Heat Pump Condenser 208/230V HHP15036FA
Questions? Call Us Today
Call Us on (888)-897-6153
The 3 Ton PRODIRECTâ„¢ Series Heat Pump is a reliable heating and cooling solution for homeowners prioritizing efficiency and performance. It boasts a SEER2 rating of up to 15.2 and uses R410A, a chlorine-free refrigerant. The energy-efficient compressor ensures optimal operation.
This system is designed for durability and includes a high-quality condenser with inner-groove copper tubes and aluminum fins. It features service valves for sweat connections and easy-access gauge ports to simplify maintenance tasks.
The 36K PRODIRECTâ„¢ heat pump is equipped with high and low-pressure switches for secure operation. With a sound control top design, it operates at a low noise level of 73 decibels, similar to that of a dishwasher, creating a peaceful environment in your home. The compact design makes installation straightforward and transportation easy. The wire fan discharge grille and steel louver coil guard also provide added durability. Homeowners have the option to include an additional drier filter as an accessory.
The unit is AHRI-certified and ETL-listed, guaranteeing it meets rigorous industry standards.
MRCOOL® offers a standard 5-year warranty, with an additional 5-year extended parts and compressor warranty available upon registration. Overall, the 3 Ton PRODIRECT™ Series Heat Pump is a dependable choice for long-term comfort and peace of mind.
Key Features
- R410A chlorine-free refrigerant
- Energy-efficient compressor
- Internal protection against high temperature motor overload conditions
- AHRI certified and ETL listed
- Unique sound control top design
- Compact design, easy installation and transportation
- High quality condenser with inner-groove copper tube and aluminum fins
- Wire fan discharge grille
Technical Specifications
| SKU | HHP15036FA |
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| Tonnage | 3 Ton |
| SEER2 | 15.2 |
| Voltage | 208/230V |
| Phase | 1 |
| Hz | 60 |
| Max Fuse/Breaker | 40A |
| Min Circuit Ampacity | 23A |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 114 oz |
| Sound Level | 73 dBA |
| Net Dimensions (D x H x W) | 28 x 33 3/16 x 28 in |
| Net Weight | 179 lbs |
Certifications
- ETL Listed
- AHRI Certified
Warranty
- 5 Year Parts Warranty (10 Year upon registration)
- 5 Year Compressor Warranty (10 Year upon registration)
Product Documentation
- MRCOOL ProDirect 3T Heat Pump FA AHRI Certification (PDF)
- MRCOOL ProDirect 3T Heat Pump FA Energy Guide (PDF)
- MRCOOL ProDirect Heat Pump Installation Manual (PDF)
- MRCOOL ProDirect Warranty Document (PDF)
