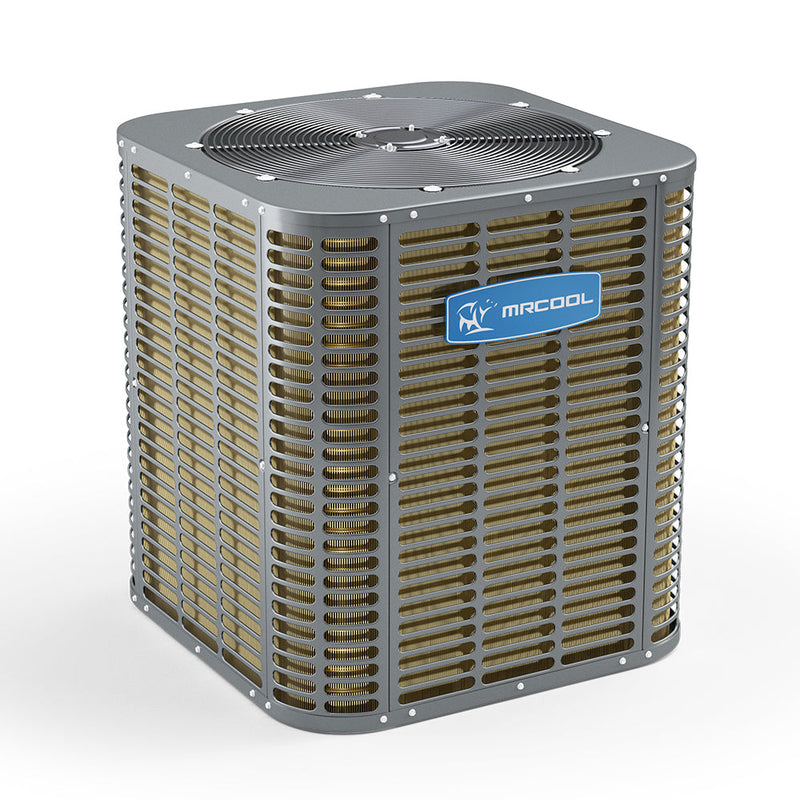

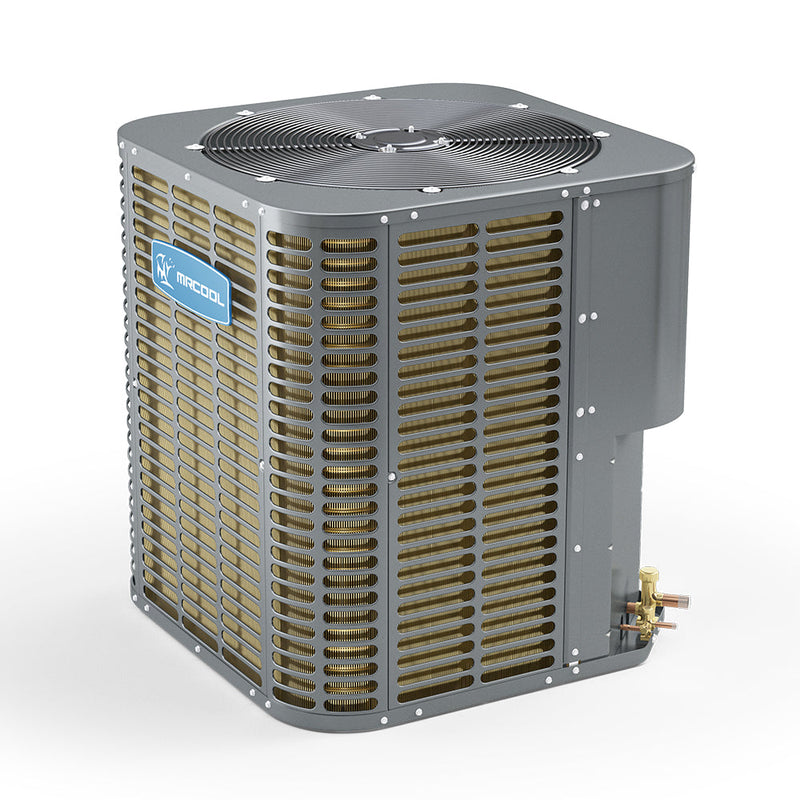

MRCOOL ProDirect 2 Ton 24K BTU 15.2 SEER2 R-410A Split System Heat Pump Condenser 208/230V HHP15024FA
Questions? Call Us Today
Call Us on (888)-897-6153
Transform your comfort experience with the MRCOOL® 2 Ton PRODIRECT™ Series Heat Pump. This innovative system is meticulously crafted for efficiency, providing outstanding cooling and heating capabilities with an impressive SEER2 rating of up to 15.2, all while utilizing eco-friendly R410a, a chlorine free refrigerant.
Engineered for durability, the PRODIRECTâ„¢ condenser boasts inner-groove copper tubes and resilient aluminum fins. Maintenance is straightforward, thanks to the service valves with sweat connections and accessible gauge ports.
With the 24K PRODIRECT™ you can enjoy whisper-quiet operation at just 74 decibels, similar to the gentle hum of a dishwasher, allowing for a serene home atmosphere. Safety is paramount with built-in high and low-pressure switches that guarantee dependable performance. The compact structure not only simplifies installation and transport but also offers added protection with its wire fan discharge grille and sturdy steel louver coil guard. Plus, enhance your system’s efficiency with an optional dryer filter accessory.
As an AHRI-certified and ETL-listed unit, it meets stringent HVAC industry standards.
The MRCOOL® 2 Ton PRODIRECT™ Series Heat Pump is backed by a standard 5-year warranty, along with an additional 5-year extended warranty on parts and compressor upon registration. Choose MRCOOL® for unparalleled comfort and peace of mind.
Key Features
- R410A chlorine-free refrigerant
- Energy-efficient compressor
- Internal protection against high temperature motor overload conditions
- AHRI certified and ETL listed
- Unique sound control top design
- Compact design, easy installation and transportation
- High quality condenser with inner-groove copper tube and aluminum fins
- Wire fan discharge grille
Technical Specifications
| SKU | HHP15024FA |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| Tonnage | 2 Ton |
| SEER2 | 15.2 |
| Voltage | 208/230V |
| Phase | 1 |
| Hz | 60 |
| Max Fuse/Breaker | 24A |
| Min Circuit Ampacity | 15.5A |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 103 oz |
| Sound Level | 74 dBA |
| Net Dimensions (D x H x W) | 28 x 24 15/16 x 28 in |
| Net Weight | 154 lbs |
Certifications
- ETL Listed
- AHRI Certified
Warranty
- 5 Year Parts Warranty (10 Year upon registration)
- 5 Year Compressor Warranty (10 Year upon registration)
Product Documentation
- MRCOOL ProDirect 2T Heat Pump FA AHRI Certification (PDF)
- MRCOOL ProDirect 2T Heat Pump FA Energy Guide (PDF)
- MRCOOL ProDirect Heat Pump Installation Manual (PDF)
- MRCOOL ProDirect Warranty Document (PDF)
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
