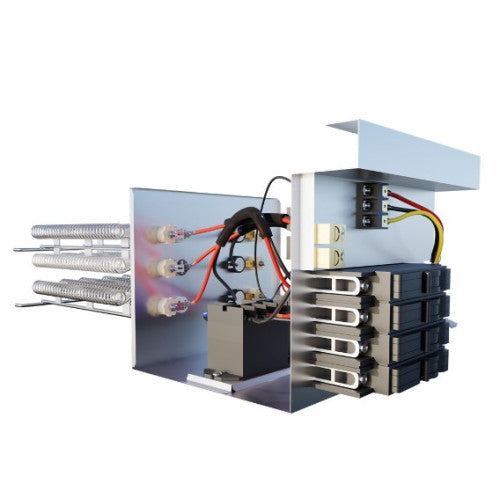

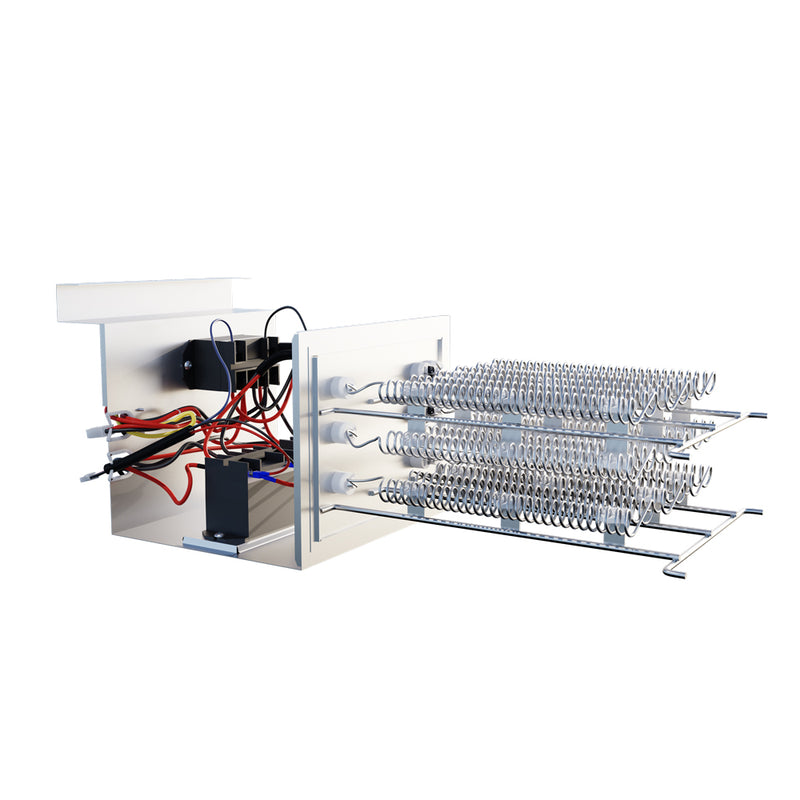

MRCOOL Central Ducted 5kw System Heat Kit CENTRALHK05
This high quality kit is easily compatible with MrCool Central Ducted Air Handlers with a BTU capacity of 12k, 18k, 24k, 30k, and 36k. This convenient heat kit includes a number of useful features including a factory-installed circuit breaker, nickel chromium heat elements, and sequencers for better temperature control to make the heating and cooling process even simpler than before.
The 5 kW Electric Heat Kit for MrCool Central Ducted Air Handler can generate powerful heating power without a complex, expensive furnace. Purchases of this reliable unit with durable construction and energy efficiency is sure to provide the most effective heating solution for any home.
Specifications
|
BRAND NAME |
MRCOOL |
|
SERIES |
Ducted Air Handler Heat Kit |
|
MODEL |
CENTRALHK05 |
|
GTIN |
00840255520720 |
|
UPC |
840255520720 |
|
UNIT TYPE |
Accessories |
|
EQUIPMENT TYPE |
Heat Kit |
|
SHORT DESCRIPTION |
5kW heat kit for the MRCOOL Central Ducted Air Handler |
|
VOLTAGE (V) |
208-230 |
|
MAX FUSE BREAKER (A) |
25/30 |
|
MIN CIRCUIT AMPACITY (A) |
23/27 |
|
AUXILIARY HEATER SIZES |
5kw |
|
NET DEPTH (IN) |
10.16 |
|
NET HEIGHT (IN) |
8.03 |
|
NET WIDTH (IN) |
21.06 |
|
NET WEIGHT (LBS) |
5.70 |
|
GROSS DEPTH (IN) |
14.37 |
|
GROSS HEIGHT (IN) |
10.24 |
|
GROSS WIDTH (IN) |
24.02 |
|
GROSS WEIGHT (LBS) |
11 |
