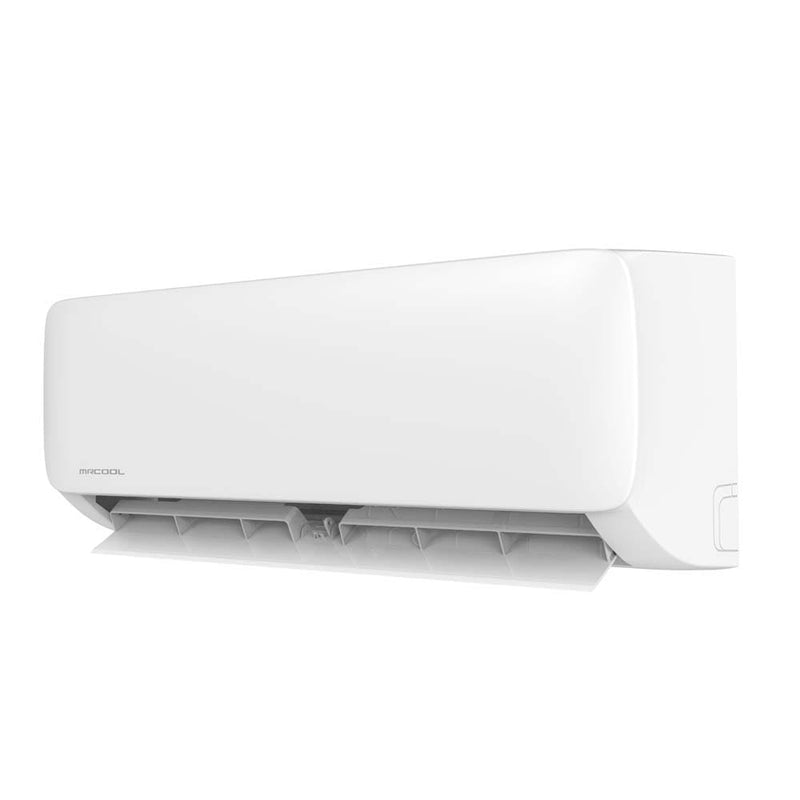

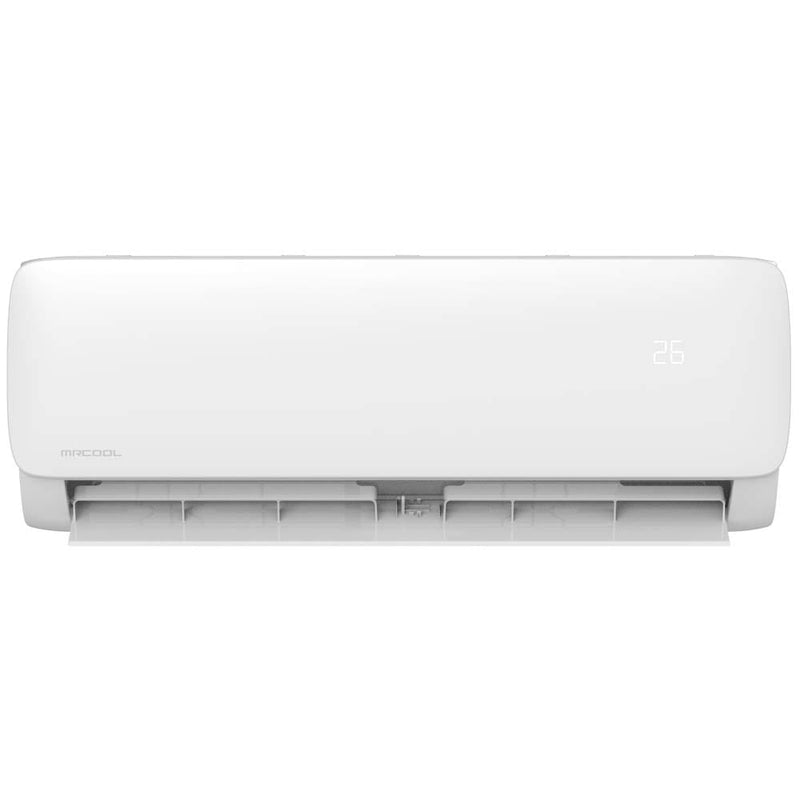

MRCOOL EasyPro 9K BTU R-454B Single Zone Mini-Split Wall Mount Air Handler 115V w/ 13ft Cable EZPRO-09-HP-WMAH-115DE-O
Questions? Call Us Today
Call Us on (888)-897-6153
The MRCOOL® Easy Pro® 9K BTU 115V Ductless Mini-Split Heat Pump Air Handler delivers efficient, dependable heating and cooling for spaces up to 400 square feet. Ideal for bedrooms, home offices, garages, studios, and bonus rooms, it provides reliable year-round comfort while helping reduce energy use and monthly utility costs.
Designed for true do-it-yourself installation, the system is compatible with the MRCOOL® Quick Connect® line set factory pre-charged with environmentally friendly R-454B refrigerant, eliminating vacuum pumps and refrigerant handling. The included 13-foot DIYPRO® cable replaces traditional electrical conduit, simplifying installation while protecting wiring from moisture, pests, and everyday wear.
Comfort control is simple and flexible with the included wireless remote or the MRCOOL® Comfort app, allowing you to adjust temperatures, set schedules, and monitor energy usage from anywhere. Compatibility with Amazon Alexa and Google Assistant adds hands-free convenience.
Advanced features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically balance comfort and efficiency. A Gold Fin® condenser coating provides enhanced corrosion resistance, making the system well suited for humid or coastal environments.
For added peace of mind, the MRCOOL® Easy Pro® 9K system comes with a 5-year compressor warranty and a 3-year parts warranty. This industry-leading coverage reflects MRCOOL's confidence and pride in the quality, durability, and performance of every unit.
Technical Specifications
| Tonnage | 0.75 Ton |
| Voltage | 115V |
| Phase | 1 |
| Hz | 60 |
| Max Fuse/Breaker | 15A |
| Min Circuit Ampacity | 3A |
| Max Coverage Area | 400 sq ft |
| Refrigerant Type | R-454B |
| Sound Level (Low/High) | 18 / 43 dBA |
| Zone Capacity | 1 |
| Liquid Line Size | 1/4 in |
| Suction Line Size | 3/8 in |
| Blower Motor RPM | 1050/810/690 |
| Filter Type | Reusable |
| Wi-Fi Compatible | Yes |
| App Compatible | Yes (iOS & Android) |
| Communication Cable Included | Yes (13 ft) |
| Net Dimensions (D x H x W) | 7.87 x 11.50 x 28.70 in |
| Net Weight | 23.81 lbs |
| Gross Dimensions (D x H x W) | 16.14 x 13.58 x 32.68 in |
| Gross Weight | 33.95 lbs |
Warranty
- 3 Year Parts Warranty
- 5 Year Compressor Warranty
Product Documentation
- MRCOOL EasyPro 9K BTU 115V Air Handler DE AHRI Certification (PDF)
- MRCOOL EasyPro 9K BTU 115V Air Handler DE Energy Guide (PDF)
- MRCOOL EasyPro DE Installation Manual (PDF)
- MRCOOL EasyPro DE Service Manual (PDF)
- MRCOOL EasyPro DE Warranty Document (PDF)
- MRCOOL EasyPro DE Brochure (PDF)
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
