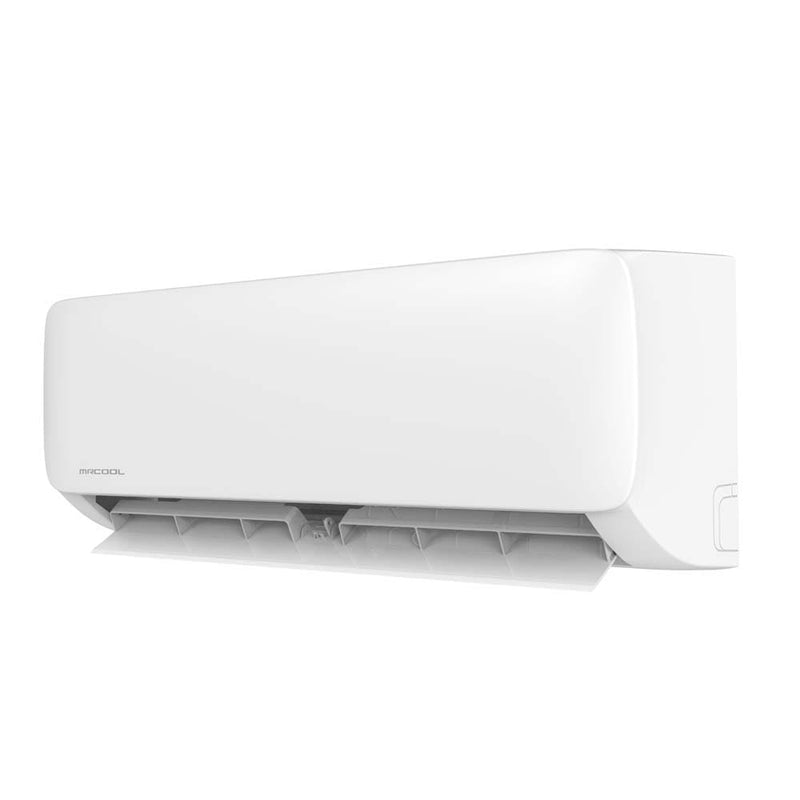

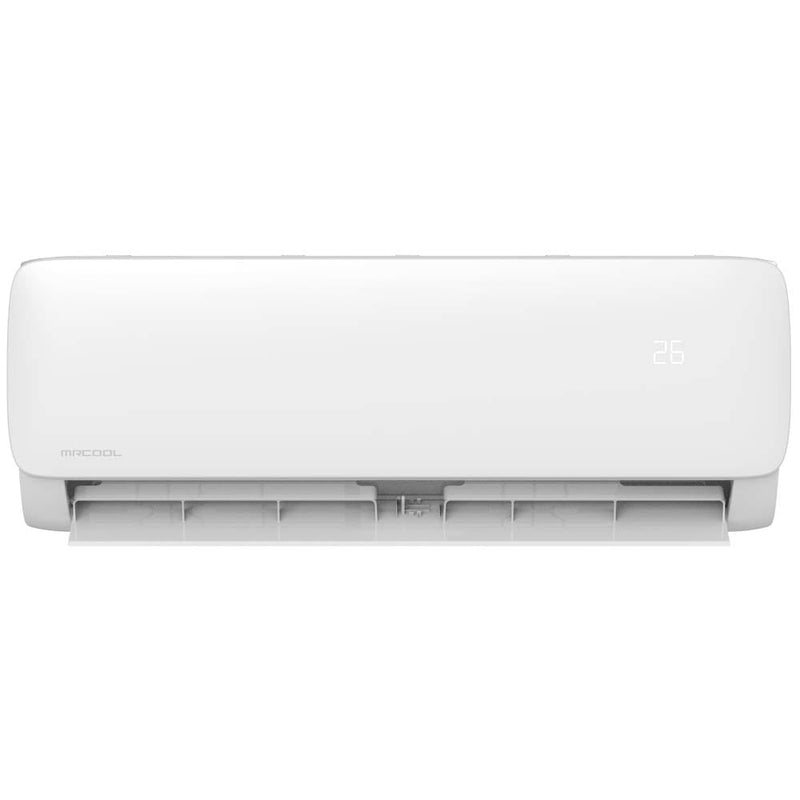

MRCOOL EasyPro 24K BTU R-454B Single Zone Mini-Split Wall Mount Air Handler 208/230V w/ 13ft Cable EZPRO-24-HP-WMAH-230DE-O
Questions? Call Us Today
Call Us on (888)-897-6153
The MRCOOL® Easy Pro® 24K BTU 230V Ductless Mini-Split Heat Pump Air Handler delivers powerful, energy-efficient heating and cooling for spaces up to 1,050 square feet. Ideal for living rooms, open layouts, large basements, and bonus rooms, it provides consistent year-round comfort while helping reduce energy use and operating costs.
Designed for easy DIY installation, the system is compatible with the MRCOOL® Quick Connect® line sets, which arrive factory pre-charged with environmentally friendly R-454B refrigerant to eliminate vacuum pumps and refrigerant handling. The included 13-foot DIYPRO® cable replaces traditional electrical conduit, simplifying installation while protecting wiring from moisture, pests, and everyday wear.
Comfort control is simple with the wireless remote or the MRCOOL® Comfort app, allowing temperature adjustments, scheduling, and energy monitoring from anywhere. Compatibility with Amazon Alexa and Google Assistant adds hands-free convenience.
Features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically balance comfort and efficiency. A Gold Fin® condenser coating provides enhanced corrosion resistance for humid or coastal environments.
For added peace of mind, the MRCOOL® Easy Pro® 24K is covered by a 5-year compressor warranty and a 3-year parts warranty. This industry-leading protection reflects MRCOOL's confidence and pride in the quality and performance of every single system.
Technical Specifications
| Tonnage | 2 Ton |
| Voltage | 208/230V |
| Phase | 1 |
| Hz | 60 |
| Max Fuse/Breaker | 15A |
| Min Circuit Ampacity | 3A |
| Max Coverage Area | 1,050 sq ft |
| Refrigerant Type | R-454B |
| Sound Level (Low/High) | 21.5 / 51.5 dBA |
| Zone Capacity | 1 |
| Liquid Line Size | 1/4 in |
| Suction Line Size | 1/2 in |
| Blower Motor RPM | 1100/940/780 |
| Filter Type | Reusable |
| Wi-Fi Compatible | Yes |
| App Compatible | Yes (iOS & Android) |
| Communication Cable Included | Yes (13 ft) |
| Net Dimensions (D x H x W) | 9.21 x 13.27 x 42.60 in |
| Net Weight | 35.49 lbs |
| Gross Dimensions (D x H x W) | 17.67 x 14.09 x 46.73 in |
| Gross Weight | 49.60 lbs |
Warranty
- 3 Year Parts Warranty
- 5 Year Compressor Warranty
Product Documentation
- MRCOOL EasyPro 24K BTU 230V Air Handler DE AHRI Certification (PDF)
- MRCOOL EasyPro 24K BTU 230V Air Handler DE Energy Guide (PDF)
- MRCOOL EasyPro DE Installation Manual (PDF)
- MRCOOL EasyPro DE Service Manual (PDF)
- MRCOOL EasyPro DE Warranty Document (PDF)
- MRCOOL EasyPro DE Brochure (PDF)
