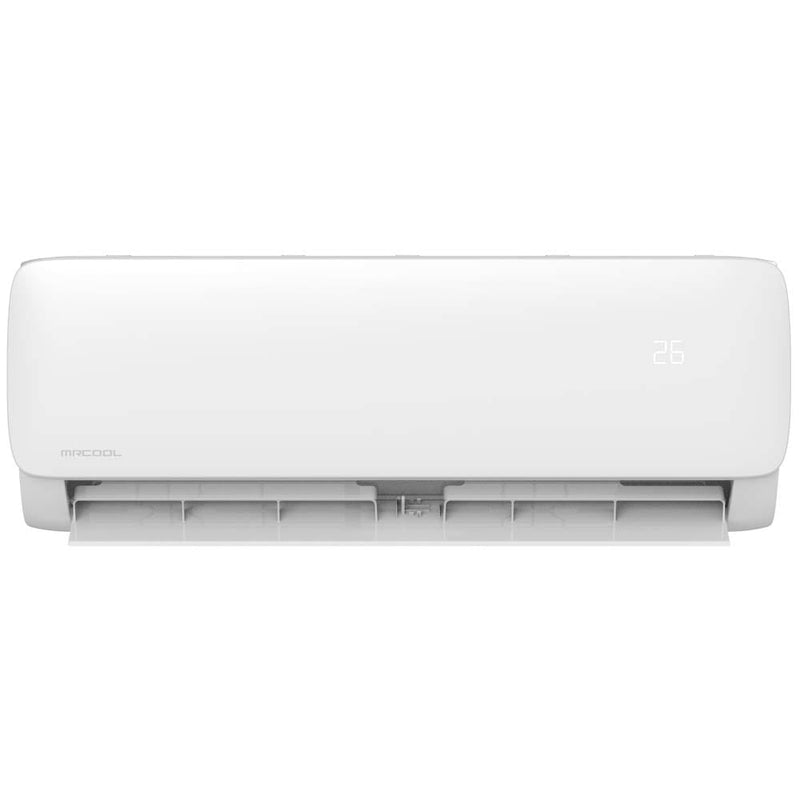

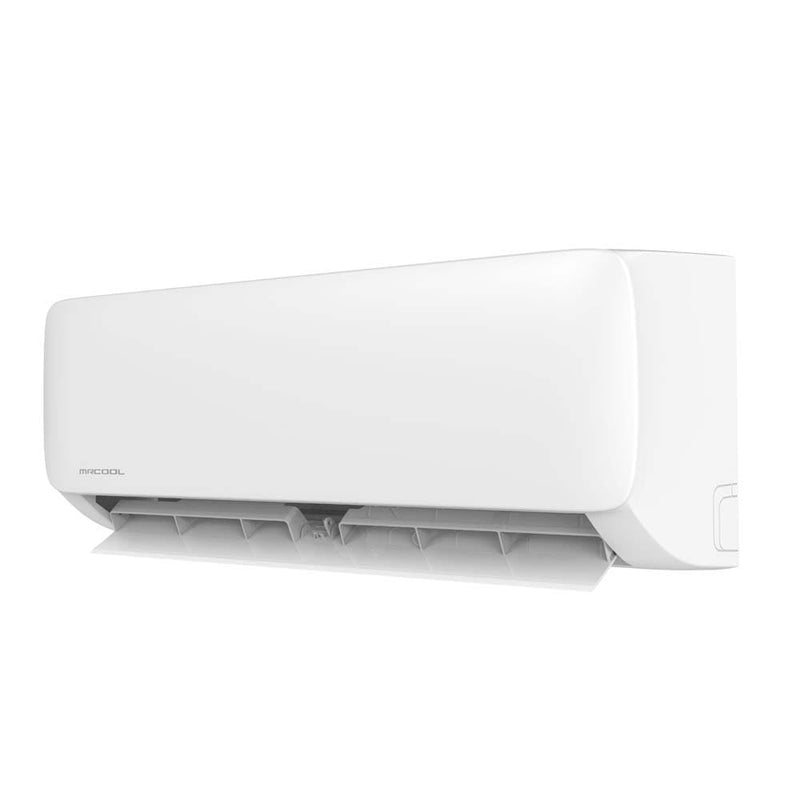

MRCOOL EasyPro 12K BTU R-454B Single Zone Mini-Split Wall Mount Air Handler 115V w/ 13ft Cable EZPRO-12-HP-WMAH-115DE-O
Questions? Call Us Today
Call Us on (888)-897-6153

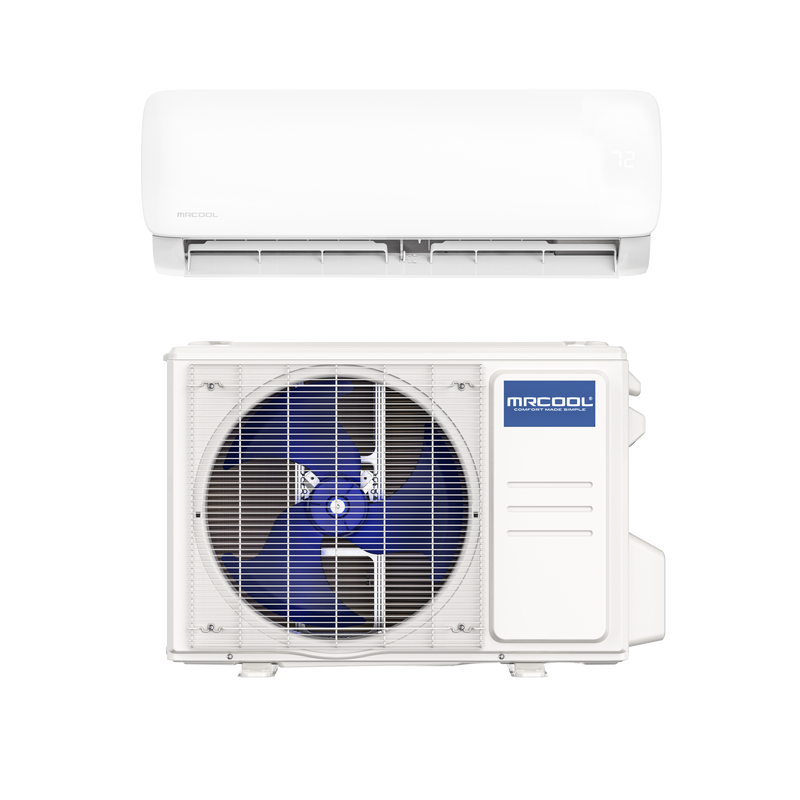

The MRCOOL® Easy Pro® 12K BTU 115V Ductless Mini-Split Heat Pump Air Handler delivers efficient, reliable heating and cooling for spaces up to 550 square feet. Ideal for garages, home offices, workshops, and similar rooms, it provides consistent year-round comfort while helping reduce energy use and utility costs.
Designed for true do-it-yourself installation, the system requires no specialized HVAC tools or professional labor. Compatible with the MRCOOL® Quick Connect® line set which comes factory pre-charged with environmentally friendly R-454B refrigerant, this system effectively eliminates the need for vacuum pumps and refrigerant handling. The 13-foot DIYPRO® cable replaces traditional electrical conduit, simplifying installation while protecting wiring from moisture, pests, and everyday wear.
Comfort control is easy using the included wireless remote or the MRCOOL® Comfort app, allowing temperature adjustments, scheduling, and energy monitoring from anywhere. Compatibility with Amazon Alexa and Google Assistant adds hands-free convenience.
Features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically balance comfort and efficiency. A Gold Fin® condenser coating provides enhanced corrosion resistance for long-term durability in humid or coastal environments.
For added confidence, the MRCOOL® Easy Pro® 12K is backed by a 5-year compressor warranty and a 3-year parts warranty. This level of industry-leading protection showcases the pride MRCOOL takes in the quality and dependability of every system produced.
Technical Specifications
| Tonnage | 1 Ton |
| Voltage | 115V |
| Phase | 1 |
| Hz | 60 |
| Max Fuse/Breaker | 15A |
| Min Circuit Ampacity | 3A |
| Max Coverage Area | 550 sq ft |
| Refrigerant Type | R-454B |
| Sound Level (Low/High) | 17.5 / 44.5 dBA |
| Zone Capacity | 1 |
| Liquid Line Size | 1/4 in |
| Suction Line Size | 3/8 in |
| Blower Motor RPM | 850/750/450 |
| Filter Type | Reusable |
| Wi-Fi Compatible | Yes |
| App Compatible | Yes (iOS & Android) |
| Communication Cable Included | Yes (13 ft) |
| Net Dimensions (D x H x W) | 7.87 x 11.61 x 31.57 in |
| Net Weight | 24.91 lbs |
| Gross Dimensions (D x H x W) | 17.95 x 14.17 x 36.02 in |
| Gross Weight | 35.71 lbs |
Warranty
- 3 Year Parts Warranty
- 5 Year Compressor Warranty
Product Documentation
- MRCOOL EasyPro 12K BTU 115V Air Handler DE AHRI Certification (PDF)
- MRCOOL EasyPro 12K BTU 115V Air Handler DE Energy Guide (PDF)
- MRCOOL EasyPro DE Installation Manual (PDF)
- MRCOOL EasyPro DE Service Manual (PDF)
- MRCOOL EasyPro DE Warranty Document (PDF)
- MRCOOL EasyPro DE Brochure (PDF)
