MRCOOL DIY Easy Pro 2 Ton 24K BTU 18.9 SEER2 R-454B Complete System Ductless Mini-Split Heat Pump 208/230V EZPRO-24-HP-23011DE-O
Questions? Call Us Today
Call Us on (888)-897-6153

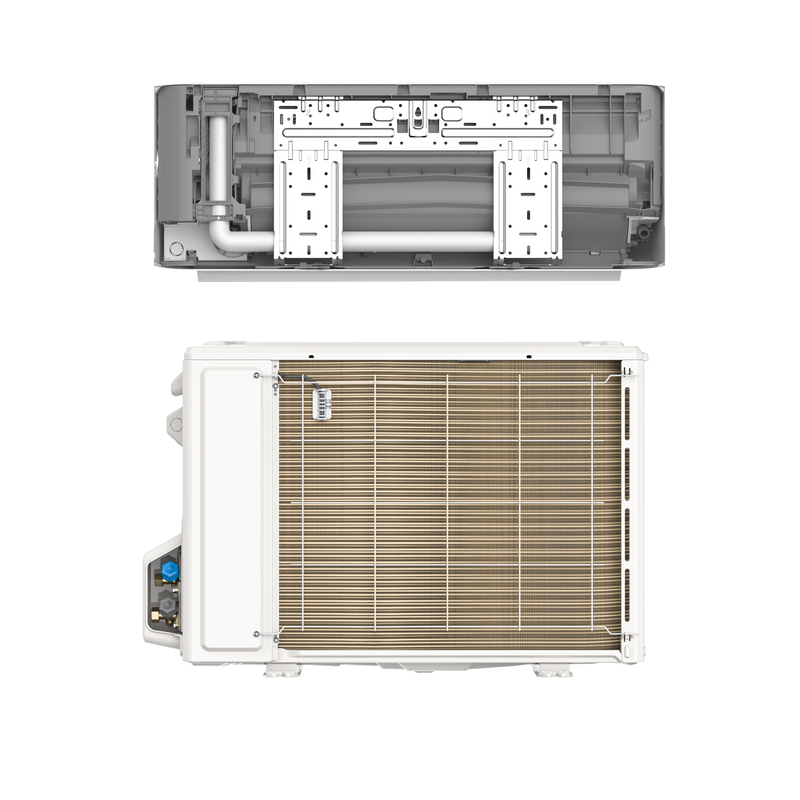

The MRCOOL® DIY Easy Pro 24K BTU 230V R-454B Complete System includes everything needed for a complete ductless mini-split installation:
- MRCOOL DIY Easy Pro 24K BTU R-454B Ductless Mini-Split Heat Pump Condenser 230V EZPRO-24-HP-C-23011DE-O

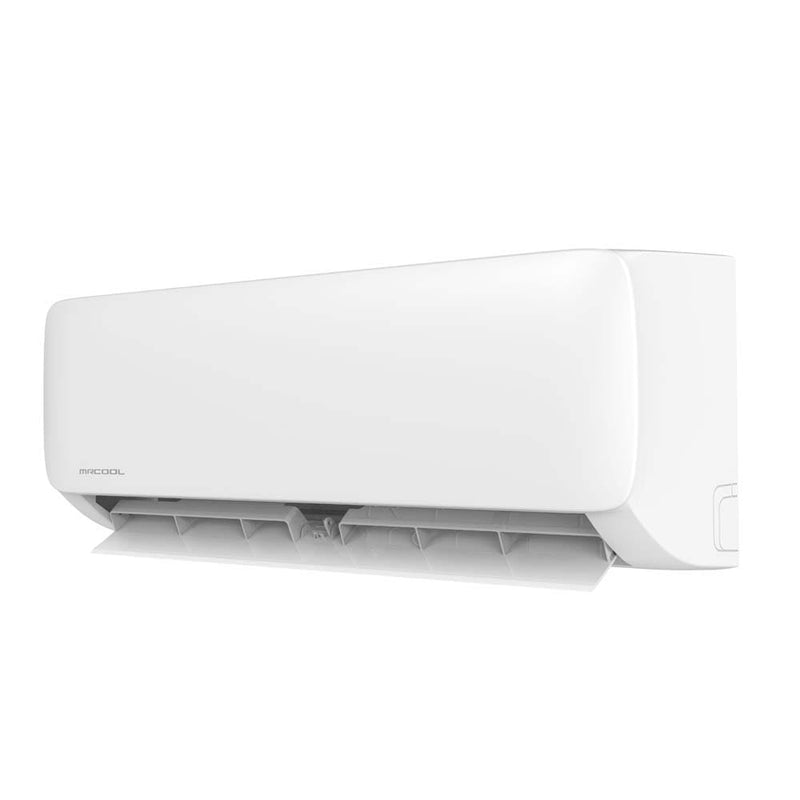

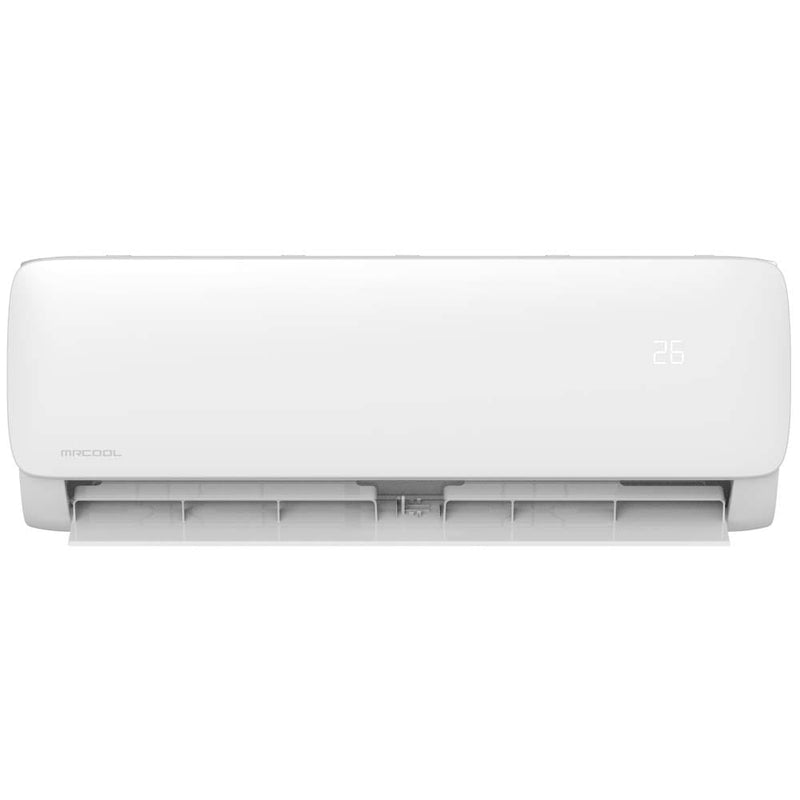

- MRCOOL EasyPro 24K BTU R-454B Single Zone Mini-Split Wall Mount Air Handler 208/230V w/ 13ft Cable EZPRO-24-HP-WMAH-230DE-O
- 11.5 ft Quick Connect® Line Set — factory pre-charged with R-454B (included with condenser)

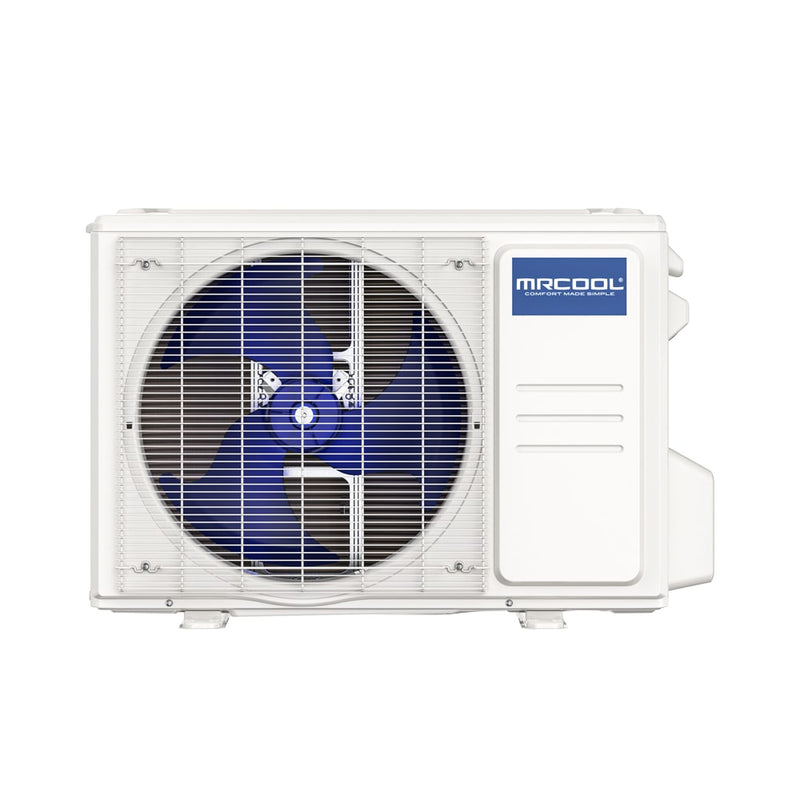

Condenser
The MRCOOL® Easy Pro® 24K BTU 230V Ductless Heat Pump Single Zone Mini-Split Condenser is designed to make high-performance home comfort simple and affordable for everyday homeowners. Built for true do-it-yourself installation, it requires no special tools or HVAC experience, making it an ideal solution for living rooms, open layouts, large basements, and bonus rooms up to 1,050 square feet.
Despite its easy installation, the Easy Pro® 24K delivers powerful, efficient performance. With an 18.9 SEER2 cooling rating and an 8.7 HSPF2-4 heating efficiency, it provides reliable year-round comfort while helping reduce energy use and lower monthly utility costs.
Installation is streamlined with the included 11.5-foot Quick Connect® line set, which arrives factory pre-charged with environmentally friendly R-454B refrigerant. This eliminates vacuum pumps and refrigerant handling, making setup faster, cleaner, and far less intimidating for first-time installers.
Daily operation is just as convenient. The included wireless remote and the MRCOOL® Comfort app let you adjust temperatures, create schedules, and monitor energy use from virtually anywhere. Amazon Alexa and Google Assistant compatibility adds hands-free control for extra convenience.
Features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically optimize comfort and efficiency, while a Gold Fin® condenser coating enhances durability in humid or coastal environments.
Backed by a 5-year compressor warranty and 3-year parts warranty, the MRCOOL® Easy Pro® 24K Condenser delivers dependable comfort you can trust.
Technical Specifications
| Bundle SKU | EZPRO-24-HP-23011DE-O |
| Condenser SKU | EZPRO-24-HP-C-23011DE-O |
| Air Handler SKU | EZPRO-24-HP-WMAH-230DE-O |
| Cooling Capacity | 24,000 BTU |
| Tonnage | 2 Ton |
| SEER2 | 18.9 |
| EER2 | 9.7 |
| HSPF2 | 8.7 |
| Refrigerant | R-454B |
| Voltage | 208/230V |
| Phase | 1 |
| Line Set Length | 11.5 ft (included, factory pre-charged) |
| Coverage Area | Up to 1,050 sq ft |
Certifications
- UL Listed
- AHRI Certified
Warranty
- 3 Year Parts
- 5 Year Compressor
