MRCOOL DIY Easy Pro 0.75 Ton 9K BTU 20.2 SEER2 R-454B Complete System Ductless Mini-Split Heat Pump 115V EZPRO-09-HP-11511DE-O
Questions? Call Us Today
Call Us on (888)-897-6153

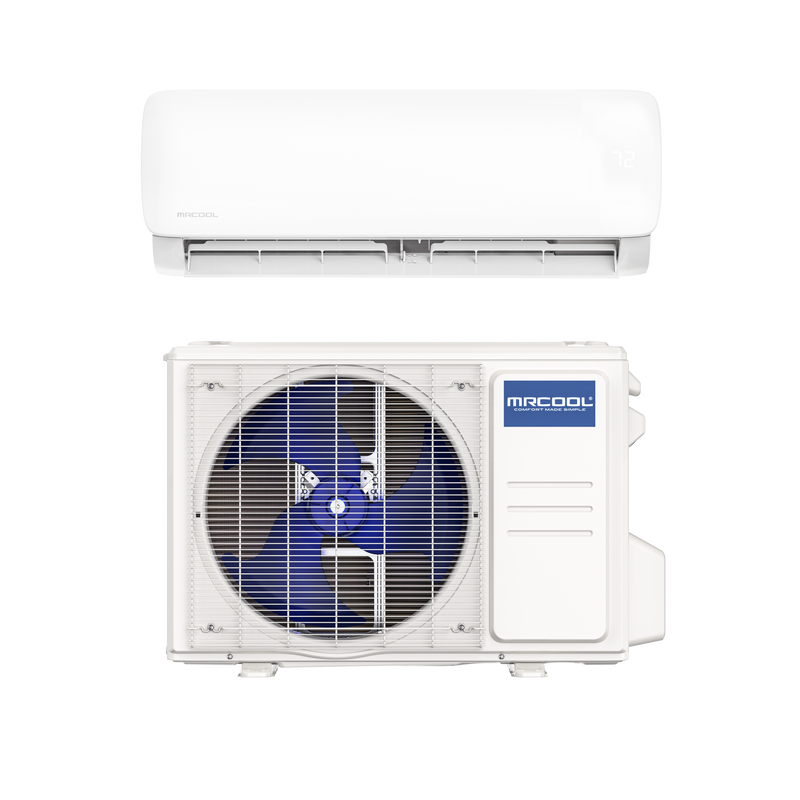

The MRCOOL® DIY Easy Pro 9K BTU 115V R-454B Complete System includes everything needed for a complete ductless mini-split installation:
- MRCOOL DIY Easy Pro 9K BTU R-454B Ductless Mini-Split Heat Pump Condenser 115V EZPRO-09-HP-C-11511DE-O

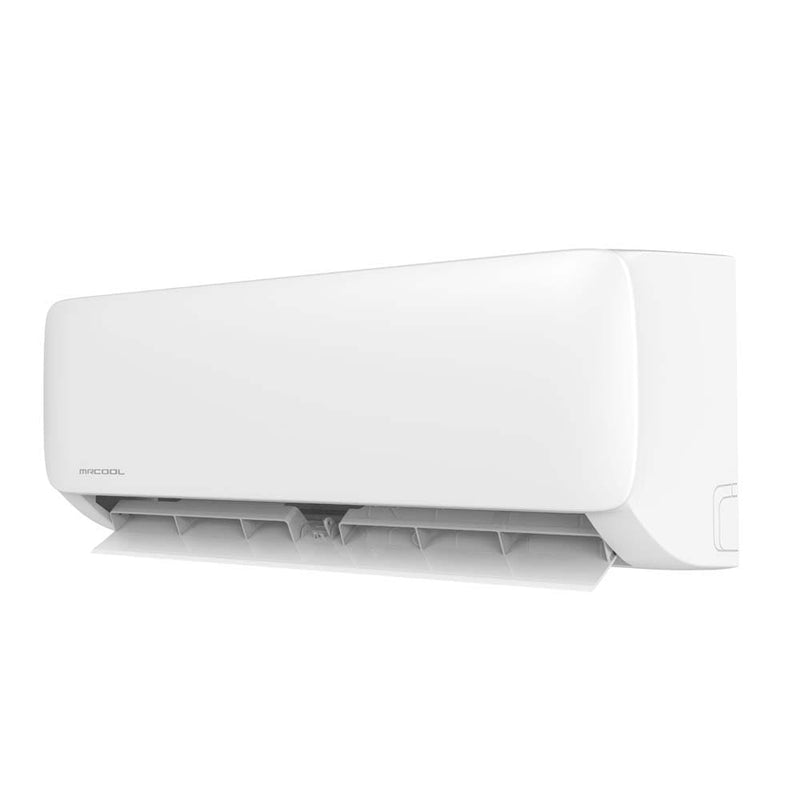

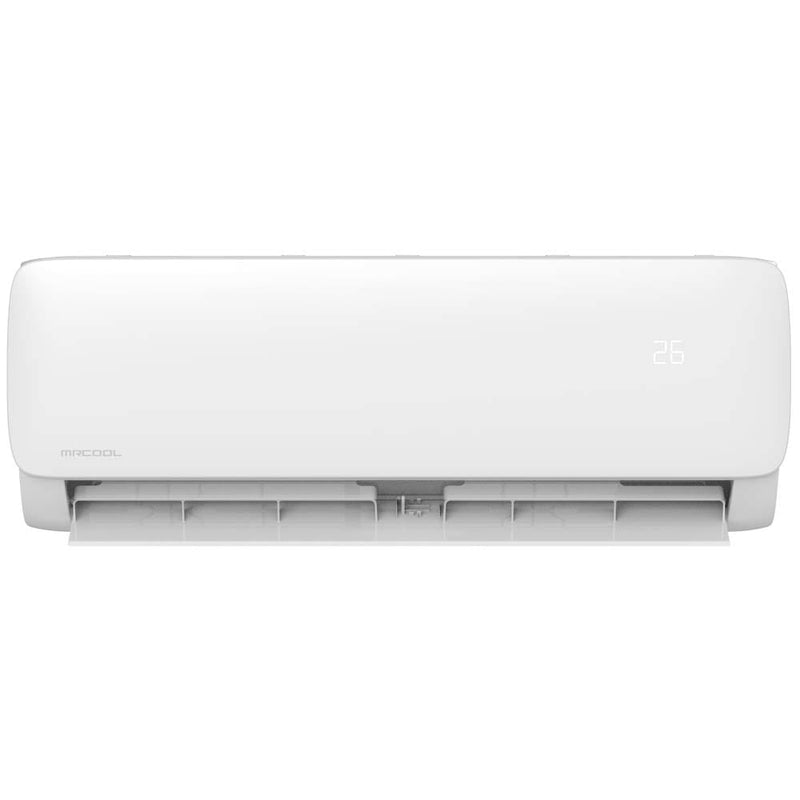

- MRCOOL EasyPro 9K BTU R-454B Single Zone Mini-Split Wall Mount Air Handler 115V w/ 13ft Cable EZPRO-09-HP-WMAH-115DE-O
- 11.5 ft Quick Connect® Line Set — factory pre-charged with R-454B (included with condenser)

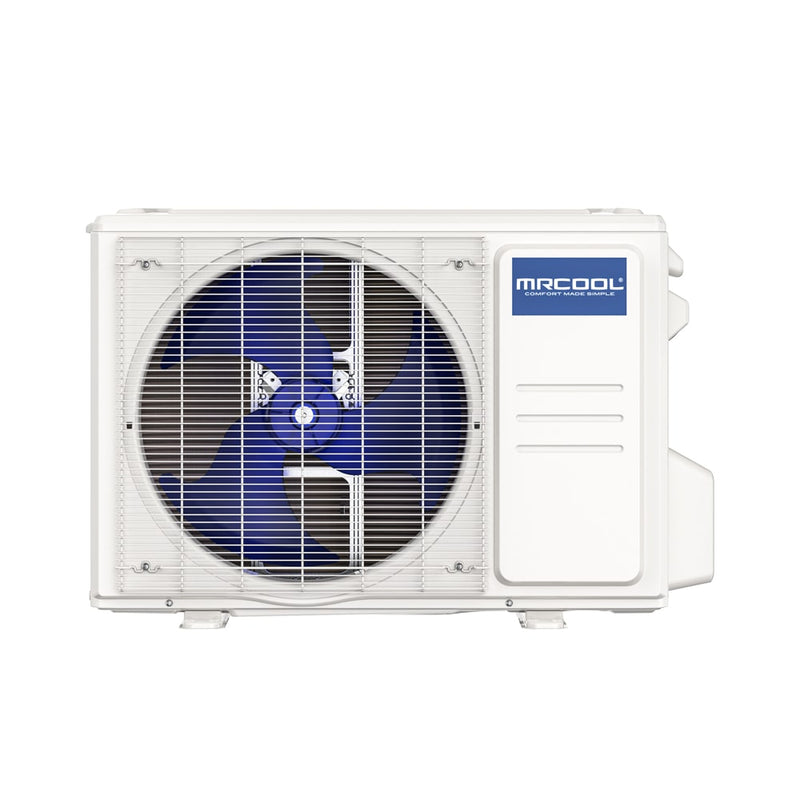

Condenser
The MRCOOL® Easy Pro® 9K BTU 115V Ductless Heat Pump Single Zone Mini-Split Condenser is designed to make high-efficiency home comfort simple and accessible. Built for true do-it-yourself installation, it requires no specialized HVAC tools or professional experience, making it ideal for garages, home offices, studios, workshops, and other spaces up to 400 square feet.
Despite its DIY-friendly design, the Easy Pro® 9K delivers impressive performance with a 20.2 SEER2 cooling rating and 9.2 HSPF2-4 heating efficiency. This allows the system to maintain consistent indoor comfort throughout the year while using less energy, helping reduce utility costs and provide long-term savings.
Installation is streamlined with an 11.5-foot Quick Connect® line set that arrives factory pre-charged with environmentally friendly R-454B refrigerant, eliminating the need for vacuum pumps or refrigerant handling. This makes setup faster, cleaner, and more approachable for first-time installers.
Everyday control is simple and flexible using the included wireless remote or the MRCOOL® Comfort app, which allows temperature adjustments, scheduling, and energy monitoring from anywhere. Compatibility with Amazon Alexa and Google Assistant adds hands-free convenience.
Features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically optimize comfort and efficiency, while a Gold Fin® condenser coating provides added corrosion resistance for humid or coastal environments.
For peace of mind, the Easy Pro® 9K includes a 5-year compressor warranty and a 3-year parts warranty, reflecting MRCOOL®'s confidence in the quality and reliability of every system.
Technical Specifications
| Bundle SKU | EZPRO-09-HP-11511DE-O |
| Condenser SKU | EZPRO-09-HP-C-11511DE-O |
| Air Handler SKU | EZPRO-09-HP-WMAH-115DE-O |
| Cooling Capacity | 9,000 BTU |
| Tonnage | 0.75 Ton |
| SEER2 | 20.2 |
| EER2 | 11.3 |
| HSPF2 | 9.2 |
| Refrigerant | R-454B |
| Voltage | 115V |
| Phase | 1 |
| Line Set Length | 11.5 ft (included, factory pre-charged) |
| Coverage Area | Up to 400 sq ft |
Certifications
- UL Listed
- AHRI Certified
- ENERGY STAR® Certified
Warranty
- 3 Year Parts
- 5 Year Compressor
