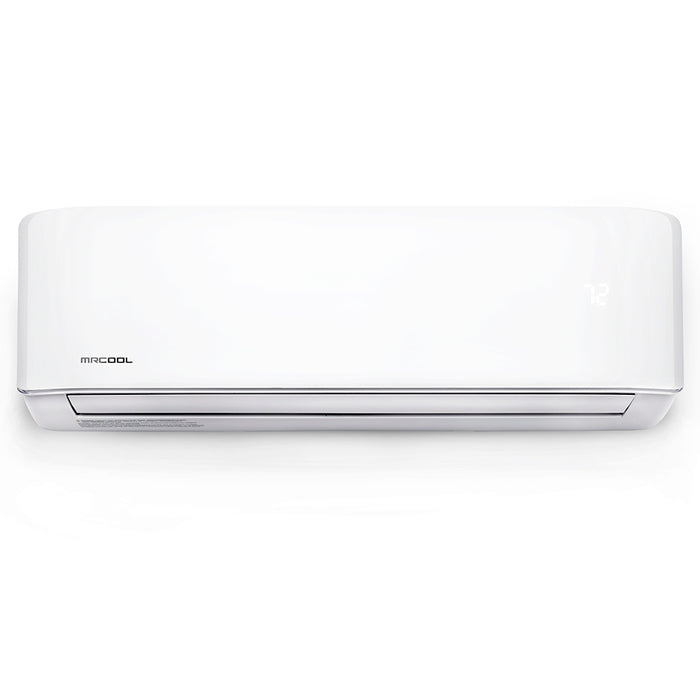

MRCOOL 4th Generation Advantage Series 12k-230v Air Handler A-12-HP-WMAH-230C
Questions? Call Us Today
Call Us on (888)-897-6153
MRCOOL 4th Generation Advantage Series 12k-230v Air Handler A-12-HP-WMAH-230C
This new 4th generation Advantage series has an improved SEER efficiency rating up to 20.5. It immediately provides high performance comfort upon installation by an HVAC professional and features a competitive price point.

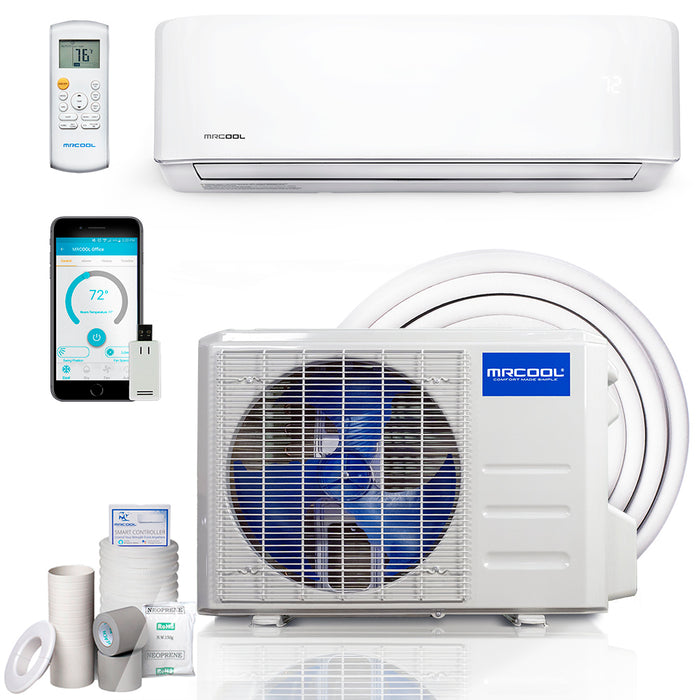

This quality combination of condenser and air handler provides a quiet operation, affordability, quality, and efficiency. The condenser uses the environmentally friendly and chlorine-free R-410A refrigerant.

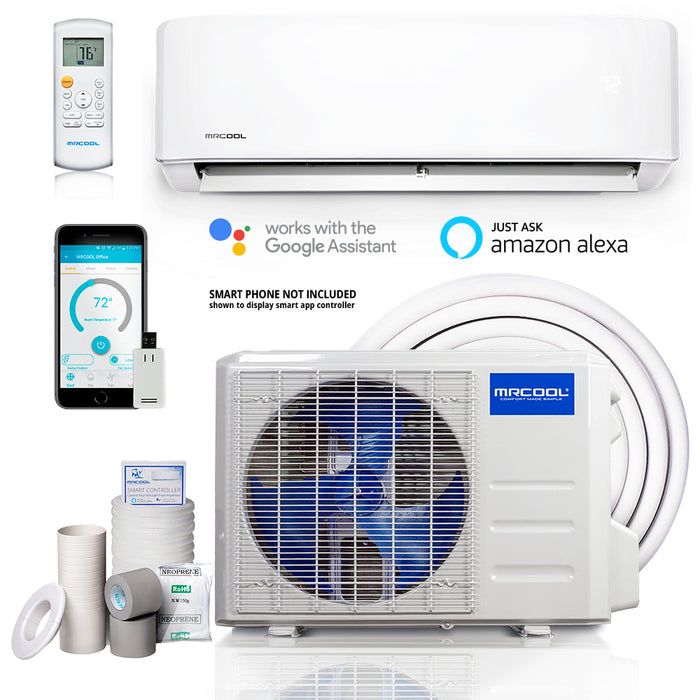

This is an excellent choice for you if you're looking for high quality comfort and technology, as this system is Wi-Fi enabled. This speeds up the setup process, improves functionality, and works with the SmartHVAC app, your Amazon Alexa, or Google Assistant.
Feature List
- Installation kit included
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- The new 4th generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
- Installation by a licensed professional required where applicable
- 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Sleep mode, louver position memory, and auto restart functions
- Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor
Specifications
| Model | A-12-HP-WMAH-230C |
|---|---|
| UPC | 840255521703 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 18.960000 |
| Primary Heating Capacity | 10,001 - 15,000 BTU |
| Refrigerant | R-410a |
| Series | Advantage |
| Special Features | Alexa, Google Assistant, Remote Management, WiFi Capable, Zone Control |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 2 Year Parts |
Manuals & Guides
Brochure
Install Manual
Warranty Documents
AHRI Certs
Energy Guide Certs
