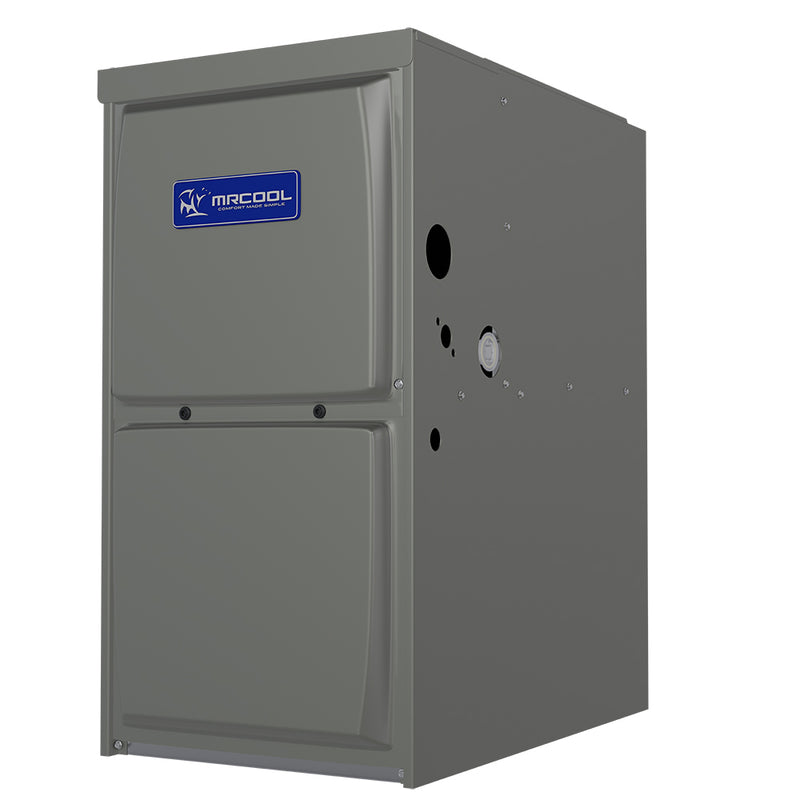

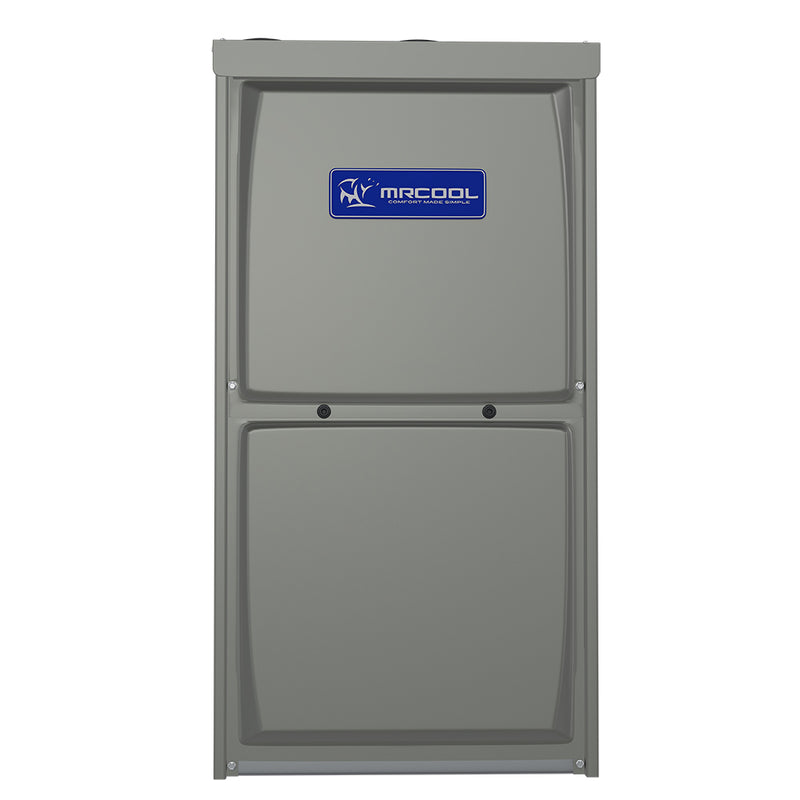

MRCOOL Signature 110,000 BTU 96% AFUE 5-Ton Multi-Position Multi-Speed Natural Gas Furnace 120V MGM96SE110C5XA

You can count on the MRCOOL® Signature Series Single-Stage 96% AFUE 110k BTU to provide superior performance in an energy-efficient, quiet running unit that can be installed in an upflow or horizontal configuration. Thanks to the multi-speed high efficiency blower motor, this furnace features a 96% AFUE and can offer enhanced cooling SEER ratings when applied with properly matched cooling equipment. The unit's durable build and finish is made up of an aluminized steel primary heat exchanger with crimped non-welded construction. Other quality features include aluminized steel inshot burners for smooth ignition as well as a durable silicon nitride ignitor. In order to deliver heat quickly to your home, the furnace features a single-stage gas valve. The compact 33 inch design, left or right utility connection, and zero-step horizontal conversion make installation of this furnace quick and easy. It offers standardized widths for easy coil fit and can be easily vented with PVC pipe. It is design certified for direct and non-direct vent applications and has a removable floor base for bottom return air. You also have the option to use a LP kit to convert to liquid propane. Maintenance of the unit is easy thanks to the easily removable slide out blower design. MRCOOL® offers a lifetime heat exchanger warranty and 10-year parts warranty on this product.

Key Features

• 96% AFUE energy efficiency
• Multi-speed high efficiency (constant torque) blower motor
• Aluminized steel primary heat exchanger with crimped non-welded construction
• Aluminized steel inshot burners with silicon nitride ignitor
• Single-stage gas valve for fast home heating
• Compact 33" design — upflow or horizontal configuration
• Removable floor base for bottom return air
• PVC venting — design certified for direct and non-direct vent applications
• Optional LP kit for liquid propane conversion
• Easily removable slide out blower design for easy maintenance
• Lifetime heat exchanger warranty / 10-year parts warranty
• AHRI certified

Technical Specifications

Product Documentation

• MRCOOL Signature 110,000 BTU 96% AFUE Multi-Position Gas Furnace Brochure (PDF)
• MRCOOL Signature 110,000 BTU 96% AFUE Multi-Position Gas Furnace Installation Manual (PDF)
• MRCOOL Signature 110,000 BTU 96% AFUE Multi-Position Gas Furnace Performance Specifications (PDF)
• MRCOOL Signature 110,000 BTU 96% AFUE Multi-Position Gas Furnace Warranty Document (PDF)
