MRCOOL DIY 5th Gen 2 Ton 24K BTU 22.7 SEER2 R-454B Complete Bundle Wall Mount Mini-Split 208/230V DIY-24-HP-WM-230D25-O

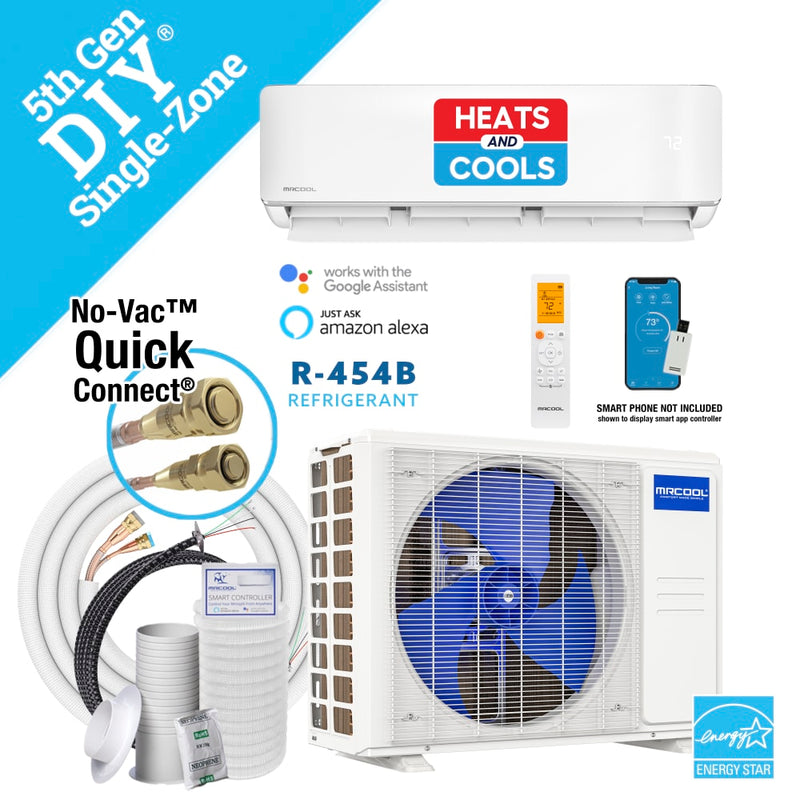

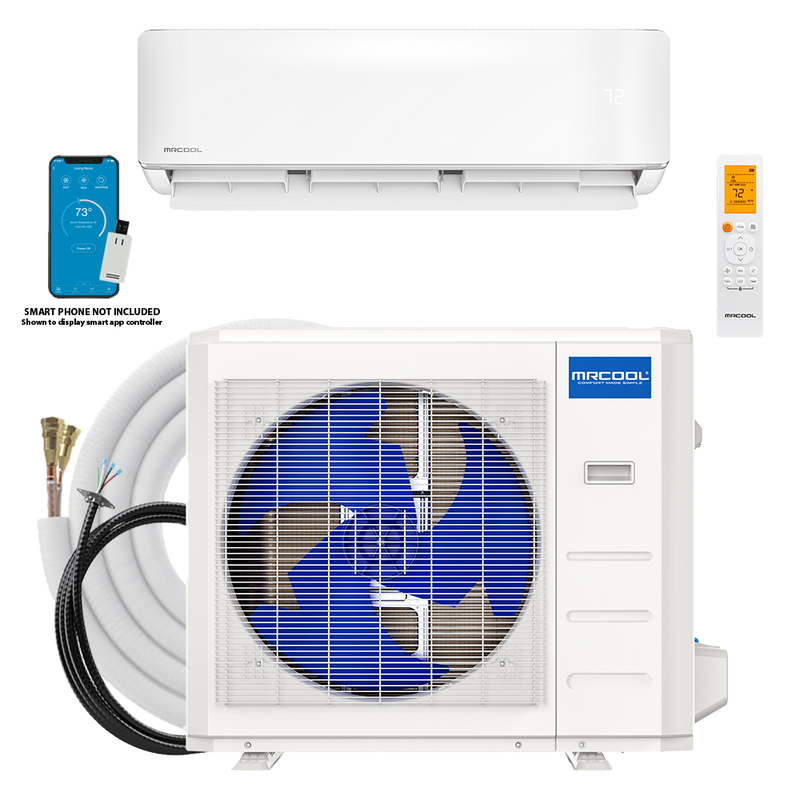

The MRCOOL® DIY® 5th Generation 24K BTU 22.7 SEER2 R-454B Complete Bundle includes everything needed for a complete single-zone ductless mini-split installation:

• MRCOOL DIY 5th Gen 24K BTU 230V Mini-Split Condenser (DIY-24-HP-C-230D25-O)
• MRCOOL DIY 5th Gen 24K BTU 230V Wall Mount Air Handler (DIY-24-HP-WMAH-230D25-O)
• MRCOOL DIY 5th Gen 25ft 3/8 x 5/8 R-454B Quick Connect® Line Set w/ DIYPRO® Cable (DIY25-3858C-O)
• Wireless Remote Control

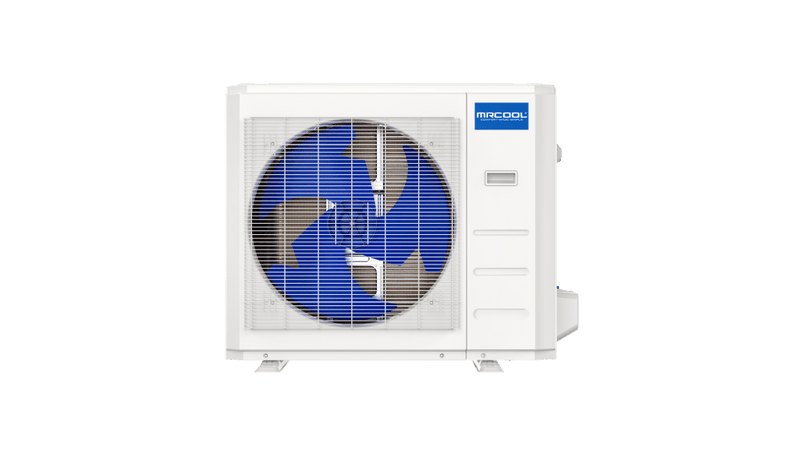

Condenser

Installing your own HVAC system doesn't have to be difficult. The 5th Generation MRCOOL® DIY® 24k BTU 22.7 SEER Ductless Heat Pump Single Zone Mini Split Condenser is made with homeowners in mind, offering a simple and efficient way to heat or cool areas between 750 and 1,000 sq. ft.—without the need for professional tools or technical experience.

This system includes a 25-foot pre-charged Quick Connect® line set filled with eco-friendly R-454B refrigerant, removing the need for vacuuming during installation. It's a safe, time-saving solution that helps reduce labor costs and installation complexity.

Control options include the wireless remote, the MRCOOL SmartHVAC app for Apple and Android, or hands-free voice commands through Amazon Alexa or Google Assistant. The Follow Me® feature tracks the temperature near the remote to keep you at your ideal comfort level.

The included DIYPRO® cable protects against weather and wildlife while eliminating the need for electrical conduit. DC Inverter variable-speed technology and R-454B refrigerant deliver efficient, quiet, and environmentally responsible performance.

Air Handler

The 5th Generation MRCOOL® DIY® 24k BTU Ductless Mini-Split Heat Pump offers powerful and efficient heating and cooling for areas up to 1,050 sq. ft. Designed for true DIY installation, it requires no specialized tools or professional help, making it a cost-effective and user-friendly solution for homeowners.

This system includes the durable DIYPRO® cable, which eliminates the need for electrical conduit while protecting against weather and wildlife damage, simplifying the setup even further.

Controlling your comfort is simple and flexible. Use the included remote, connect via the SmartHVAC app on Apple or Android, or ask Amazon Alexa or Google Assistant to adjust the temperature hands-free. The Follow Me® function continuously monitors the temperature near the remote to keep you perfectly comfortable.

Built with DC Inverter variable-speed technology and R-454B refrigerant, this air handler delivers efficient, quiet, and eco-friendly performance year-round.

Key Features

• NEEP ccASHP Listed
• Intertek listed 5031495
• Easy DIY installation
• Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
• Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
• Connect to your system remotely from anywhere with WiFi connectivity and the MRCOOL Smart HVAC app
• Control your system with voice commands through compatibility with Amazon Alexa and Google Home
• MRCOOL® DIY® Quick Connect® pre-charged line set included — no vacuum pump or refrigerant handling required
• R-454B refrigerant — next-generation low-GWP refrigerant
• DC Inverter variable-speed compressor for precise, efficient temperature control

Technical Specifications

Certifications

• UL Listed
• ETL Listed — Intertek 5031495
• Energy Star Certified
• AHRI Certified
• NEEP ccASHP Listed

Warranty

• 5 Year Parts Warranty
• 7 Year Compressor Warranty

Product Documentation

• MRCOOL DIY 5th Gen 24K BTU Complete Bundle AHRI Certification (PDF)
• MRCOOL DIY 5th Gen 24K BTU Complete Bundle Energy Guide (PDF)
• MRCOOL DIY 5th Gen Installation Manual (PDF)
• MRCOOL DIY 5th Gen Warranty Document (PDF)
• MRCOOL DIY 5th Gen Brochure (PDF)
