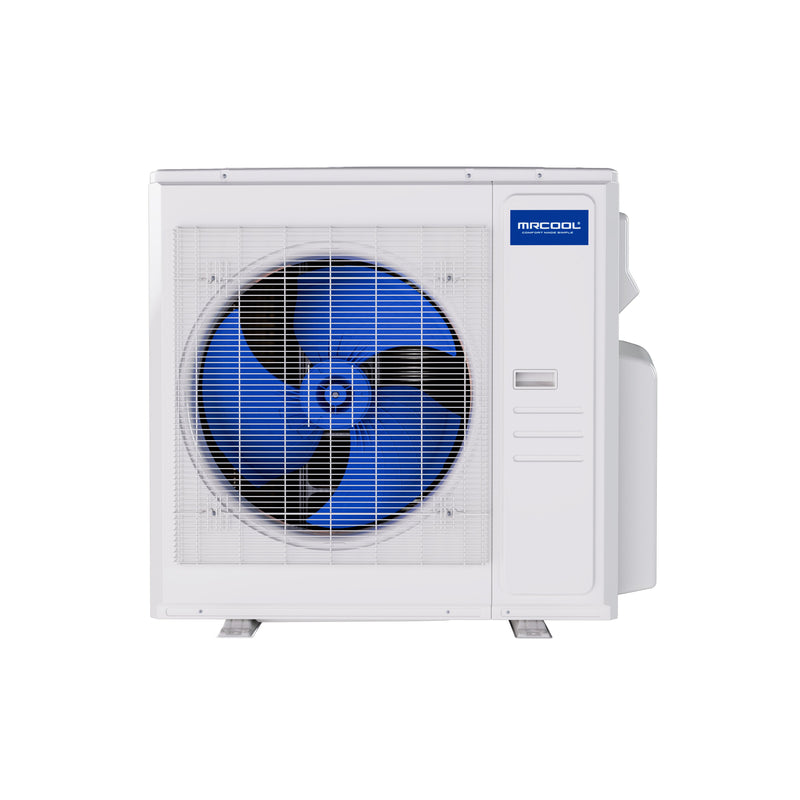

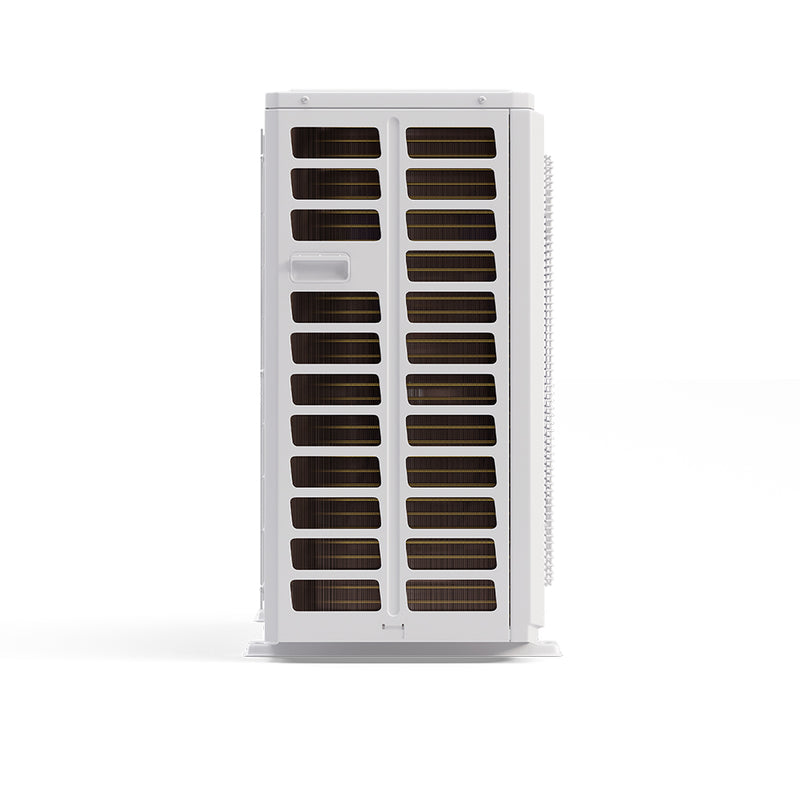

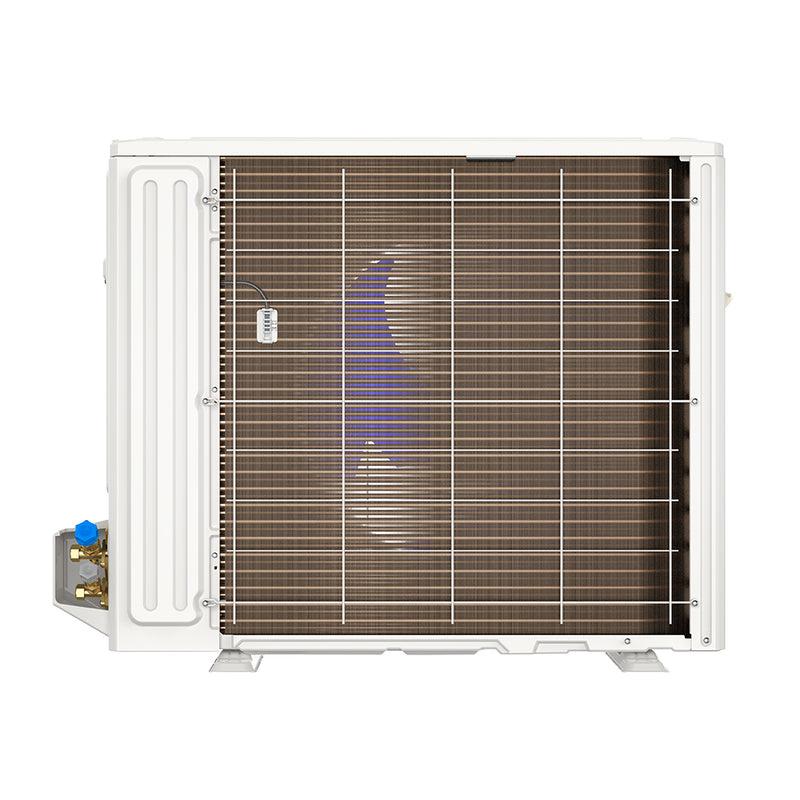

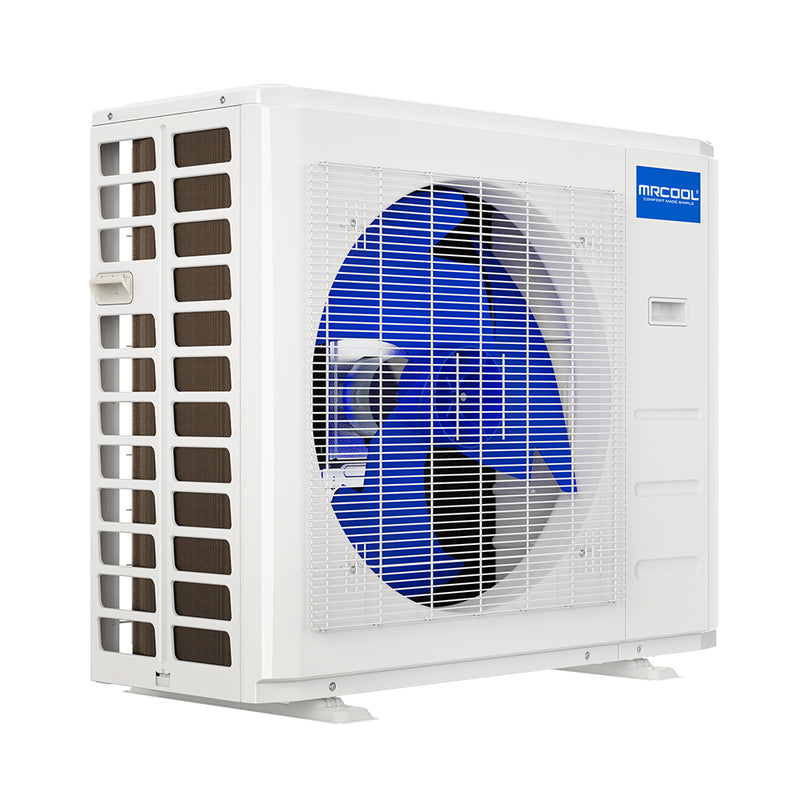

MRCOOL DIY 5th Gen 24k BTU 230V Mini-Split Condenser DIY-24-HP-C-230D25-O
Questions? Call Us Today
Call Us on (888)-897-6153
Installing your own HVAC system doesn’t have to be difficult. The 5th Generation MRCOOL® DIY® 24k BTU 22.7 SEER Ductless Heat Pump Single Zone Mini Split Condenser is made with homeowners in mind, offering a simple and efficient way to heat or cool areas between 750 and 1,000 sq. ft.—without the need for professional tools or HVAC experience.
The 25-foot pre-charged Quick Connect® line set is already filled with R-454B refrigerant, so no vacuuming is needed. Just connect and go.
Control the system with the included wireless remote, the SmartHVAC app on Apple or Android, or Amazon Alexa and Google Assistant voice commands. The Follow Me® feature maintains your comfort by tracking the temperature near the remote. Gold Fin® condenser coating offers corrosion resistance, ideal for coastal environments. Auto, Sleep, and Timer modes, along with auto-restart, provide complete convenience.
Backed by a 7-year compressor warranty and 5-year parts warranty, plus MRCOOL® Care Program eligibility and NEEP Listing for added peace of mind.
Key Features
- NEEP Listed | Intertek listed 5031495
- Easy DIY installation
- DIYPro® cable eliminates the need for electrical conduit while protecting from the elements
- Follow Me® function tracks the air temperature around you for maximum comfort
- MRCOOL® Smart HVAC app supports Google Assistant & Amazon Alexa
Technical Specifications
| Cooling BTU | 24000 |
| Heating BTU | 24000 |
| SEER2 | 22.7 |
| EER2 | 12 |
| HSPF2-4 | 9.5 |
| Voltage | 208/230 |
| Phase | 1 |
| Hz | 60 |
| Max Fuse/Breaker | 25 |
| Min Circuit Ampacity | 18 |
| Refrigerant | R-454B |
| Refrigerant Volume (oz) | 44.09 |
| Sound Level (dBA) | 58.5 |
| Max Lineset Length (ft) | 164 |
| Wi-Fi | Yes |
| App Control | Yes |
| Net Weight (lbs) | 122.8 |
| Gross Weight (lbs) | 155.64 |
Certifications
- UL Listed
- ETL Listed
- ENERGY STAR® Certified
- AHRI Certified
Warranty
- 5 Year Parts Warranty
- 7 Year Compressor Warranty
Product Documentation
- MRCOOL DIY-24-HP-C-230D25-O Installation Manual (PDF)
- MRCOOL DIY-24-HP-C-230D25-O Warranty Document (PDF)
- MRCOOL DIY-24-HP-C-230D25-O AHRI Certification (PDF)
