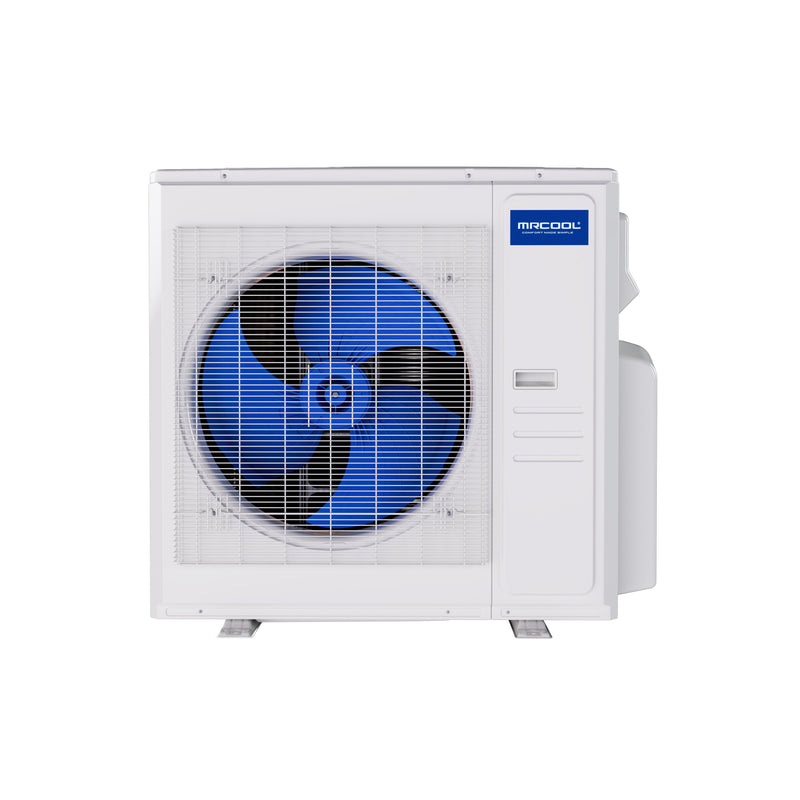

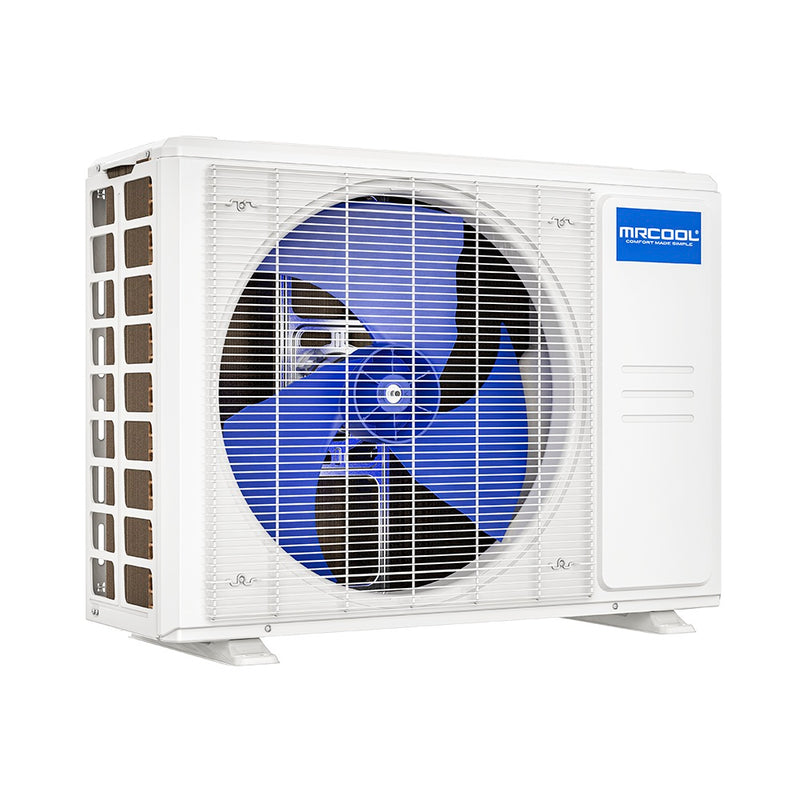

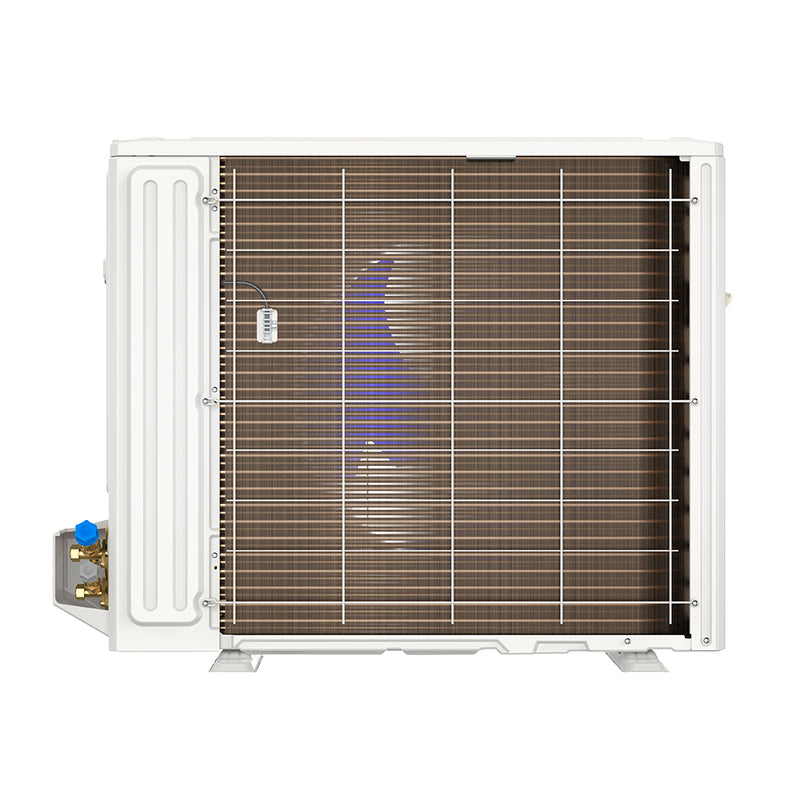

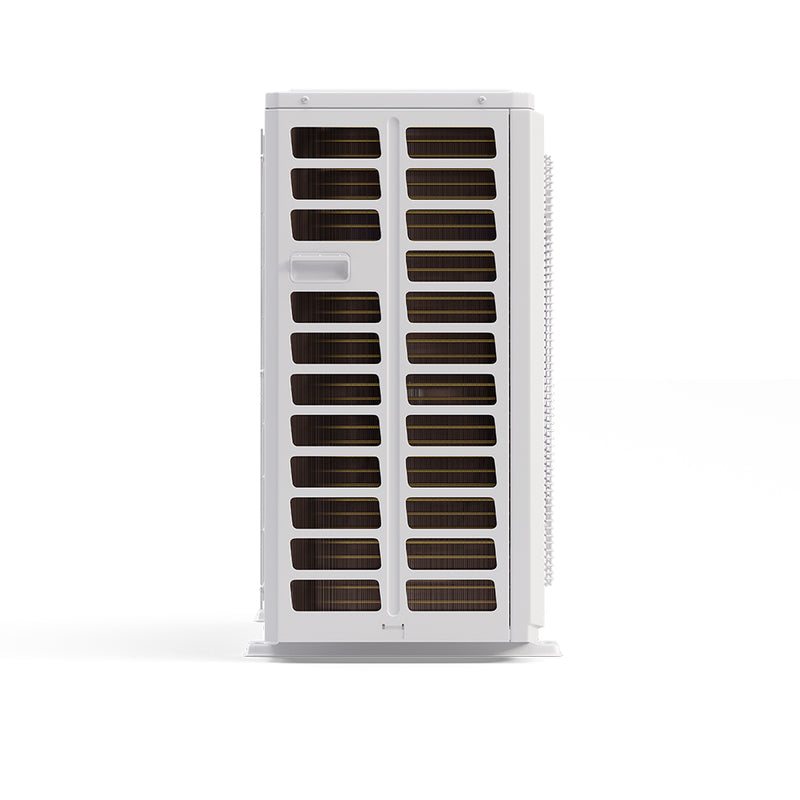

MRCOOL DIY 5th Gen 18k BTU 230V Mini-Split Condenser DIY-18-HP-C-230D25-O
Questions? Call Us Today
Call Us on (888)-897-6153
Tackling an HVAC installation yourself may seem daunting, but the 5th Generation MRCOOL® DIY® 18k BTU 22.5 SEER Ductless Heat Pump Single Zone Mini Split Condenser is built to make the process straightforward and hassle-free. This unit is perfect for heating or cooling spaces ranging from 500 to 700 sq. ft.
The 25-foot Quick Connect® line set comes already pre-charged with eco-friendly R-454B refrigerant, so you can skip the time-consuming vacuuming step. Simply connect the line set and you’re ready to go.
You can control the unit remotely using the included wireless remote, the SmartHVAC app available on Apple and Android devices, or through voice commands with Amazon Alexa or Google Assistant. The Follow Me® feature tracks the temperature near your remote and adjusts airflow accordingly. For homes in coastal areas, the Gold Fin® condenser coating offers excellent corrosion resistance. Multiple modes including Auto, Sleep, and Timer let you enjoy customized comfort.
Backed by a 7-year compressor warranty and 5-year parts warranty, plus MRCOOL® Care Program eligibility for a comprehensive, long-lasting comfort solution.
Key Features
- Intertek listed 5031495
- Easy DIY installation
- DIYPro® cable eliminates the need for electrical conduit while also protecting the cable from the elements
- Keep the included remote close by, and MRCOOL DIY®’s Follow Me® function will track the air temperature around you to ensure maximum comfort
- The MRCOOL® Smart HVAC Controller® Module and App fully supports Google Assistant & Amazon Alexa out of the box
Technical Specifications
| Cooling BTU | 18000 |
| Heating BTU | 18000 |
| SEER2 | 22.5 |
| EER2 | 12 |
| HSPF2-4 | 11.5 |
| Voltage | 208/230 |
| Phase | 1 |
| Hz | 60 |
| Max Fuse/Breaker | 20 |
| Min Circuit Ampacity | 15 |
| Refrigerant | R-454B |
| Refrigerant Volume (oz) | 35.27 |
| Sound Level (dBA) | 58.5 |
| Max Lineset Length (ft) | 98.4 |
| Wi-Fi | Yes |
| App Control | Yes |
| Net Weight (lbs) | 93.48 |
| Gross Weight (lbs) | 114.2 |
Certifications
- UL Listed
- ETL Listed
- ENERGY STAR® Certified
- AHRI Certified
Warranty
- 5 Year Parts Warranty
- 7 Year Compressor Warranty
Product Documentation
- MRCOOL DIY-18-HP-C-230D25-O Installation Manual (PDF)
- MRCOOL DIY-18-HP-C-230D25-O Warranty Document (PDF)
- MRCOOL DIY-18-HP-C-230D25-O AHRI Certification (PDF)
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
