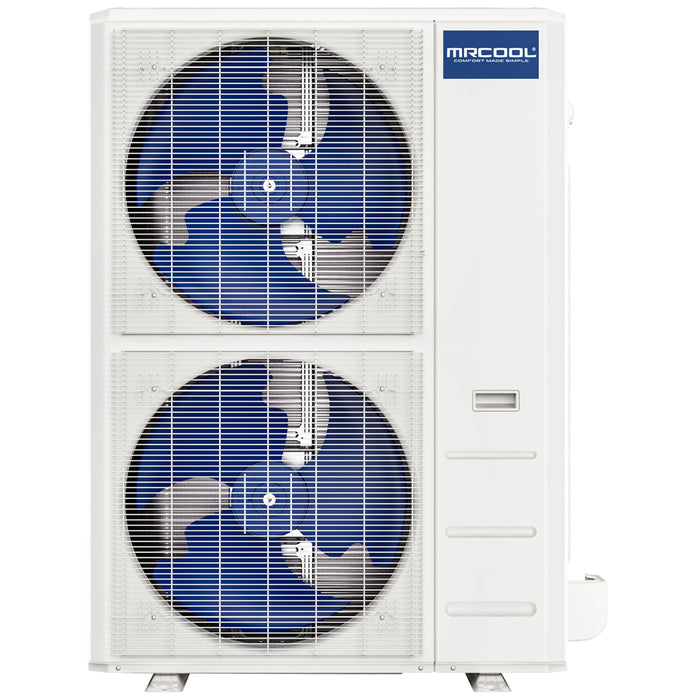

MRCOOL Hyper Heat 48,000 BTU 4-Ton 15.6 SEER2 R-410A Central Ducted Heat Pump Condenser 208/230V CENTRAL-48-HP-C-230A00
Questions? Call Us Today
Call Us on (888)-897-6153
A superb option to replace your outdated, cumbersome heating and cooling system, the 48K BTU MRCOOL® Hyper Heat Central Ducted Heat Pump Condenser delivers reliable climate control without straining your budget. Equipped with a DC Inverter and advanced variable speed technology, this unit boasts exceptional efficiency, leading to significant utility cost reductions without compromising performance. It features an impressive SEER2 rating of up to 15.6 and an HSPF2-4 rating of up to 9.4, thanks to its superior heating capacity. It ensures indoor comfort even when outdoor temperatures plunge to -22°F or climb to 122°F. Installation is a cinch for professional HVAC technicians using the compatible MRCOOL® No-Vac® Quick Connect® Line Set. This distinctive line set eliminates the need for vacuuming or flare welding and is kink-resistant, streamlining the connection process and lowering installation expenses. In addition, the unit utilizes the eco-friendly R-410A refrigerant, causing no harm to the environment. Constructed with premium materials like painted galvanized steel, this durable unit resists damage from severe weather, animals, or yard equipment, ensuring reliable performance for years to come. In the rare event of any issues, a 10-year warranty covering the compressor, parts, and labor backs the unit. What's more, the labor warranty is automatically activated upon installation, removing the need for a lengthy registration process.
Key Features
- Enhanced Heating Capacity — operates from -22°F to 122°F
- DC Inverter with variable speed technology for maximum efficiency
- Compatible with MRCOOL® No-Vac® Quick Connect® Line Set
- Wired Thermostat Included (0.78 in x 4.72 in x 4.72 in)
- Multi-Position Installation
- Variable Speed Compressor
- Optional Heat Kit available
- Compact, Side Discharge Design
- R-410A environmentally friendly refrigerant
- Follow Meâ„¢ Function
- Easy-Access Removable Filter
- Timer mode, auto cool mode, fan only mode, and more
- 10-Year Warranty — parts, labor, and compressor (no registration required)
- AHRI Certified
Technical Specifications
| SKU / Model | CENTRAL-48-HP-C-230A00 |
| Series | Hyper Heat Central Ducted |
| Unit Type | Heat Pump Condenser (Outdoor Unit) |
| Cooling Capacity | 47,000 BTU (4 Ton) |
| Heating Capacity | 50,000 BTU |
| SEER2 | Up to 15.6 |
| HSPF2-4 | Up to 9.4 |
| Operating Range | -22°F to 122°F |
| Voltage | 208/230V, 1-Phase, 60Hz |
| Max Fuse / Breaker | 50A |
| Min Circuit Ampacity | 42A |
| Refrigerant | R-410A |
| Net Weight | 220.24 lbs. |
| Net Dimensions (H x W x D) | 52.48 in. x 37.48 in. x 16.34 in. |
| Gross Weight | 249 lbs. |
| GTIN / Barcode | 840255553070 |
| Warranty | 10-Year Parts, Labor & Compressor (no registration required) |
