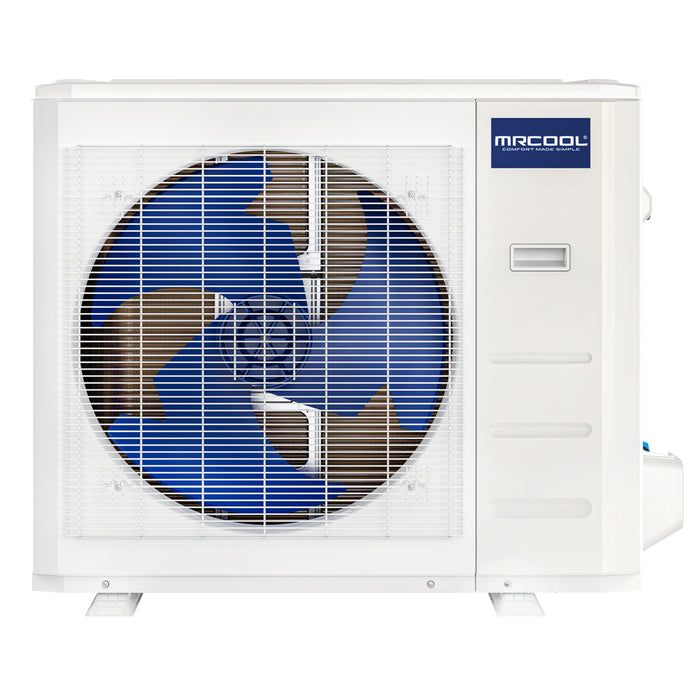

MRCOOL Hyper Heat 24,000 BTU 2-Ton 17.4 SEER2 R-410A Central Ducted Heat Pump Condenser 208/230V CENTRAL-24-HP-C-230A00
Questions? Call Us Today
Call Us on (888)-897-6153
The MRCOOL® 24K BTU Hyper Heat Central Ducted Heat Pump Condenser is a dependable choice for handling extreme winter and summer temperatures. Boasting a DC Inverter and state-of-the-art variable speed technology, this unit offers exceptional efficiency, leading to significant savings on utility expenses without compromising performance. With an impressive SEER2 rating of up to 17.4 and an HSPF2-4 rating of up to 10, its enhanced heating capacity ensures indoor comfort even when outdoor temperatures range from -22°F to 122°F. Installation is simple for professional HVAC technicians using the MRCOOL® No-Vac® Quick Connect® Line Set. This exclusive line set eliminates the need for vacuuming or flare welding and is kink-resistant, accelerating the connection process and reducing installation costs. Moreover, the eco-friendly R-410A refrigerant ensures no environmental harm. Constructed from high-quality materials like painted galvanized steel, this durable unit can withstand damage from severe weather, animals, or yard equipment, guaranteeing reliable performance for years. In the unlikely event of any issues, the unit is supported by a 10-year warranty covering the compressor, parts, and labor. Additionally, the labor warranty is automatically activated upon installation, eliminating the need for a time-consuming registration process.
Key Features
- Enhanced Heating Capacity — operates from -22°F to 122°F
- DC Inverter with variable speed technology for maximum efficiency
- Compatible with MRCOOL® No-Vac® Quick Connect® Line Set
- Wired Thermostat Included (0.78 in x 4.72 in x 4.72 in)
- Multi-Position Installation
- Variable Speed Compressor
- Optional Heat Kit available
- Compact, Side Discharge Design
- R-410A environmentally friendly refrigerant
- Follow Meâ„¢ Function
- Easy-Access Removable Filter
- Timer mode, auto cool mode, fan only mode, and more
- 10-Year Warranty — parts, labor, and compressor (no registration required)
- AHRI Certified
Technical Specifications
| SKU / Model | CENTRAL-24-HP-C-230A00 |
| Series | Hyper Heat Central Ducted |
| Unit Type | Heat Pump Condenser (Outdoor Unit) |
| Cooling Capacity | 24,000 BTU (2 Ton) |
| Heating Capacity | 24,000 BTU |
| SEER2 | Up to 17.4 |
| HSPF2-4 | Up to 10.0 |
| Operating Range | -22°F to 122°F |
| Voltage | 208/230V, 1-Phase, 60Hz |
| Max Fuse / Breaker | 35A |
| Min Circuit Ampacity | 20.5A |
| Refrigerant | R-410A |
| Net Weight | 136.69 lbs. |
| Net Dimensions (H x W x D) | 31.89 in. x 37.24 in. x 16.14 in. |
| Gross Weight | 146 lbs. |
| GTIN / Barcode | 840255553049 |
| Warranty | 10-Year Parts, Labor & Compressor (no registration required) |
